2002 Buell S3T: Fuel System 4-45
HOME

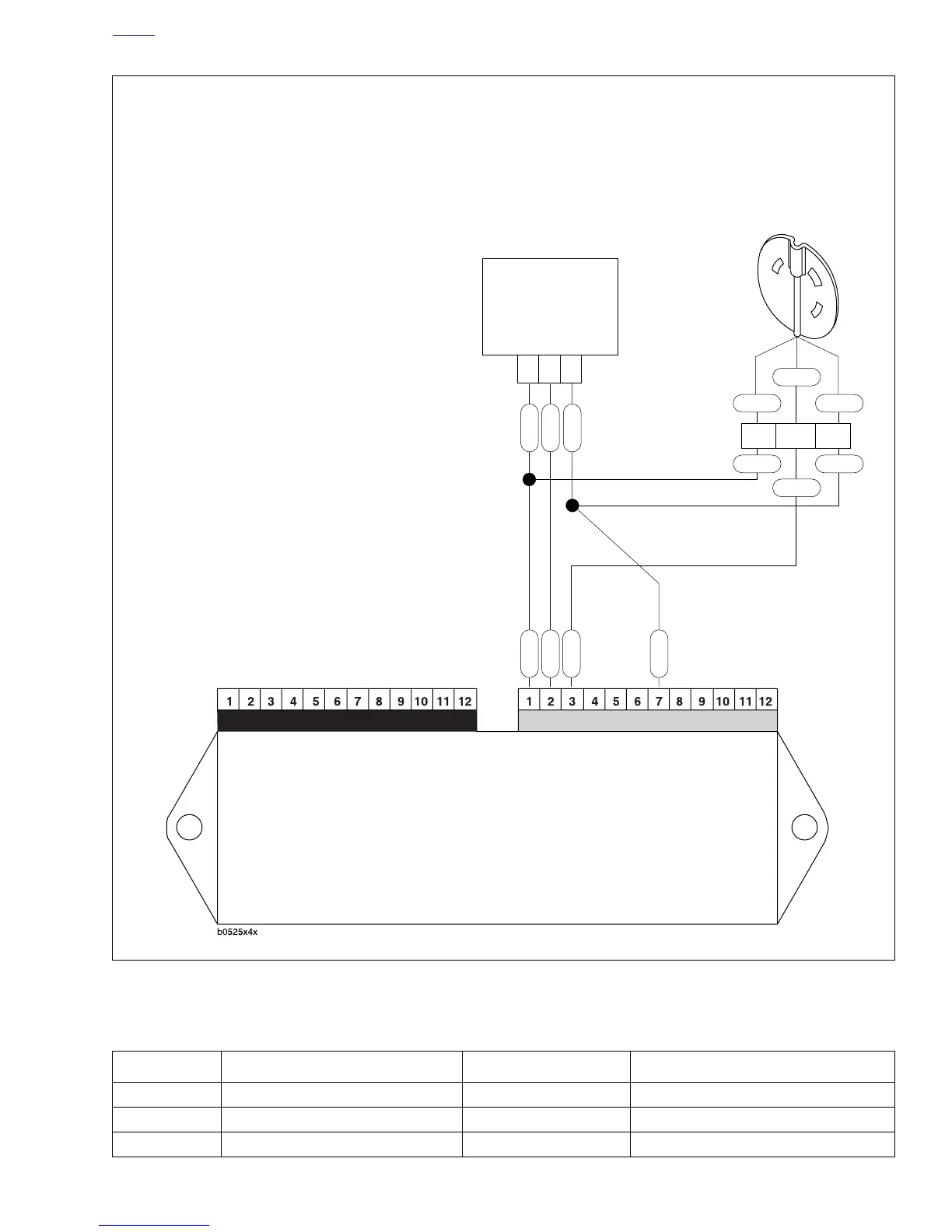

Figure 4-41. Throttle Position Sensor Circuit
CBA
b0526x4x
Throttle
Position
Sensor
[88]
R/W
V/Y
BK/W
b0527x4x
R/W BK/W
GN/W
Electronic Control Module
(ECM)
Connector [10] Connector [11]
Cam Position
Sensor
R/W = 5 volt reference
V/Y = TP sensor signal
BK/W = sensor ground
R/W
V/Y
GN/W
BK/W
ABC[14]
BK/WR/W
GN/W
Table 4-14. Wire Harness Connectors in Figure 4-41.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under tail section
[14] Cam Position Sensor 3-place Deutsch near starter
[88] TP Sensor 3-place Packard behind air cleaner backplate
