2002 Buell S3T: Fuel System 4-49
HOME

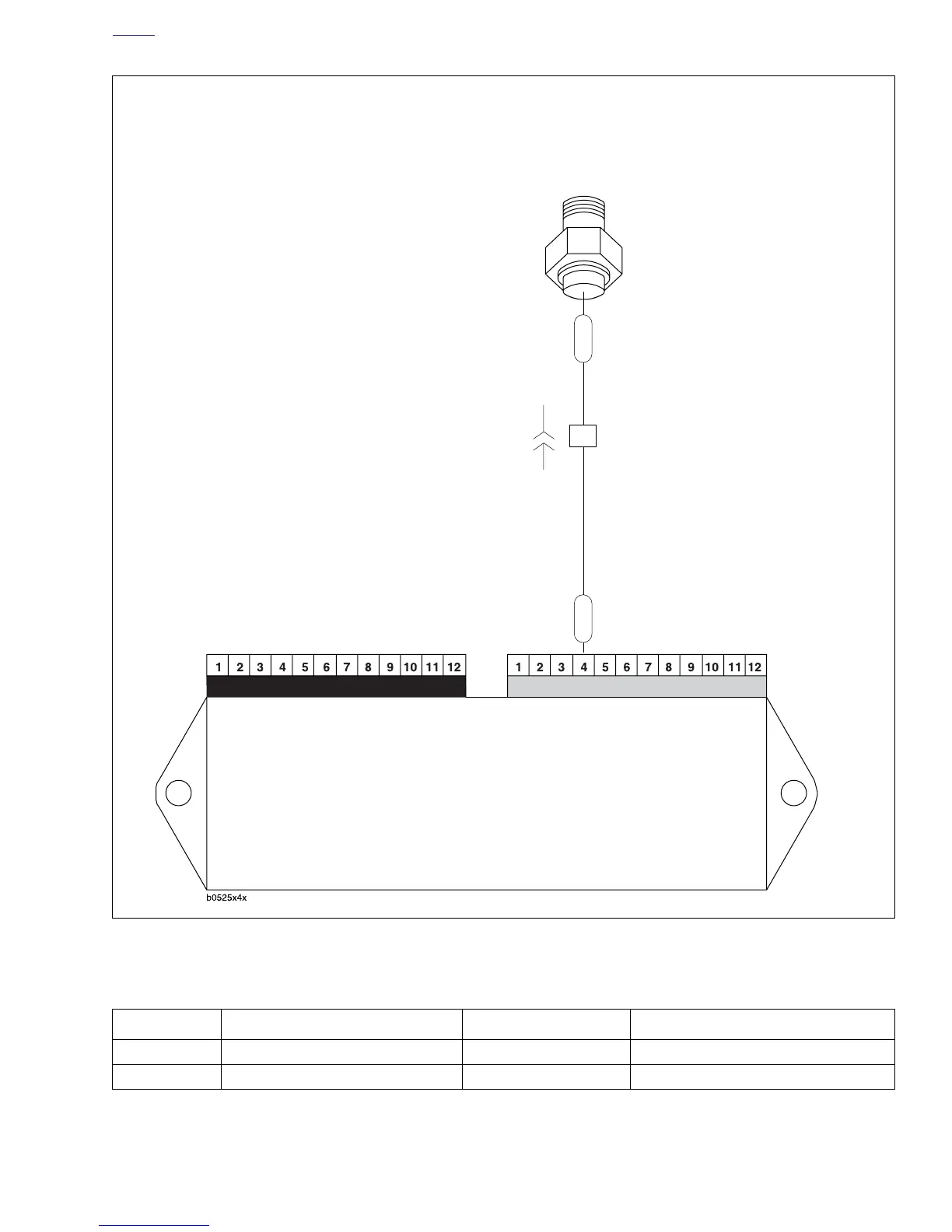

Figure 4-44. Oxygen Sensor Circuit
b0529x4x
Oxygen
Sensor [137]
Electronic Control Module
(ECM)
Connector [10] Connector [11]
V/GYV/GY
1
[137B]
[137A]
Table 4-15. Wire Harness Connectors in Figure 4-44.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under tail section
[137] Oxygen Sensor 1-place above starter
