4-54 2002 Buell S3T: Fuel System
HOME

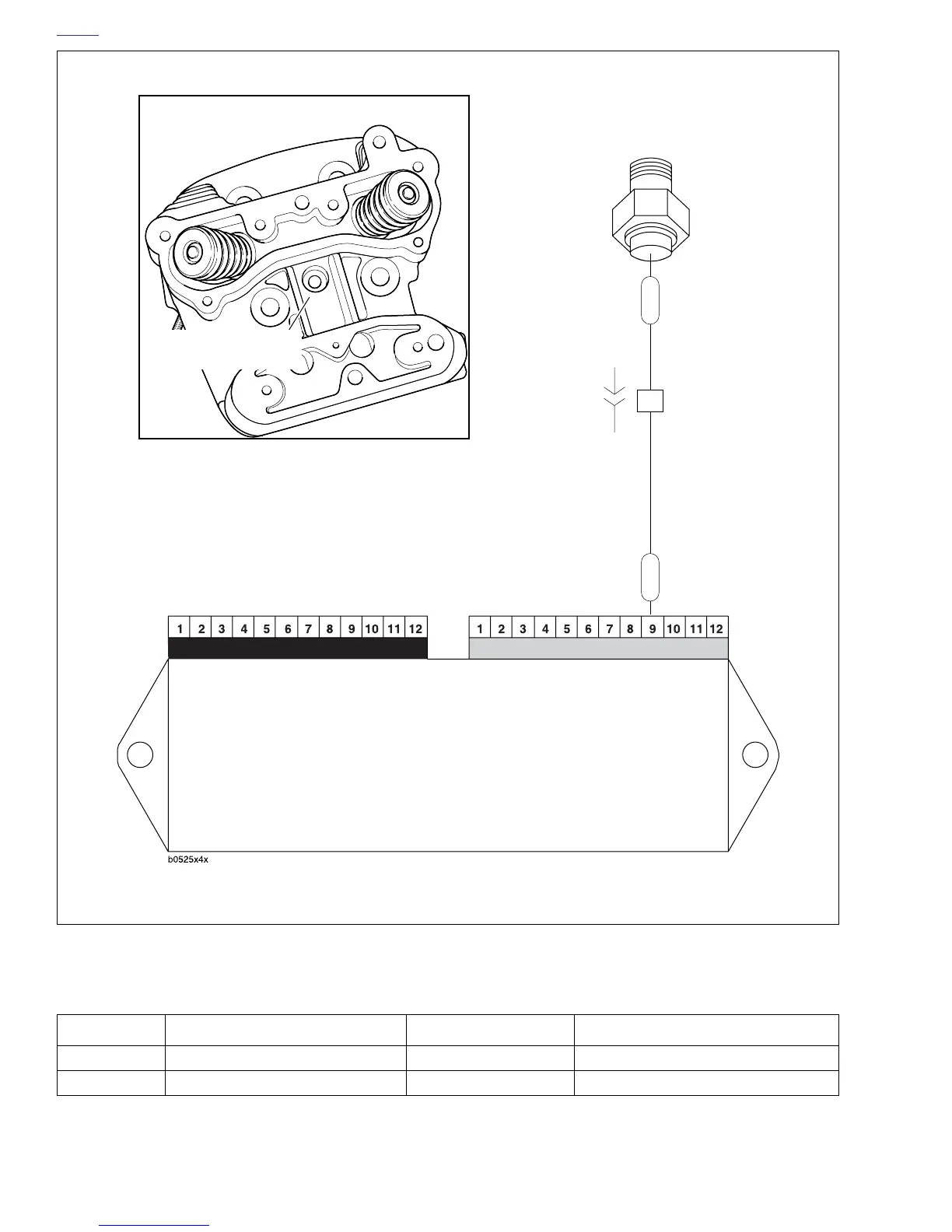

Figure 4-45. Engine Temperature Sensor Circuit
b0529x4x
Engine
Temperature
Sensor [90]
PK/Y
Electronic Control Module
(ECM)
Connector [10] Connector [11]
PK/Y
1
[90A]
[90B]
Engine Temperature
Sensor Location
b0801x4x
REAR CYLINDER
Table 4-17. Wire Harness Connectors in Figure 4-45.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under tail section
[90] Engine Temperature Sensor 1-place bullet above rear cylinder head, left side
