4-58 2002 Buell S3T: Fuel System
HOME

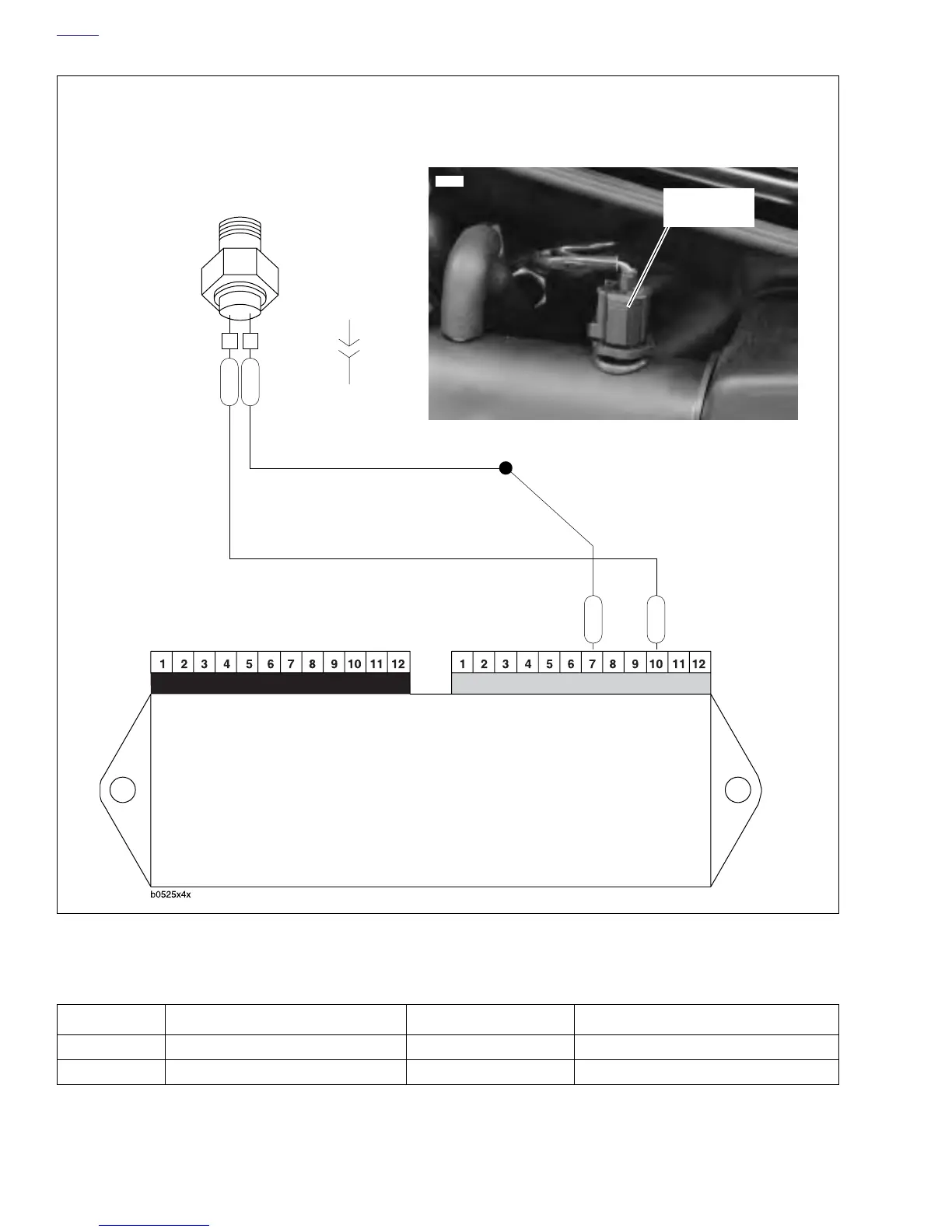

Figure 4-46. Intake Air Temperature Sensor Circuit
b0529x4x
BK/W
Electronic Control Module
(ECM)
Connector [10] Connector [11]
Lt GN/Y
Intake Air
Temperature
Sensor [89]
Lt GN/Y = 5 volt reference and sensor signal
BK/W = sensor ground
1 2
BK/W
Lt GN/Y
Installed
IAT Sensor
6769
[P89B]
[P89A]
Table 4-19. Wire Harness Connectors in Figure 4-46.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under tail section
[89] IAT Sensor 2-place Deutsch inside air box
