4-66 2002 Buell S3T: Fuel System
HOME

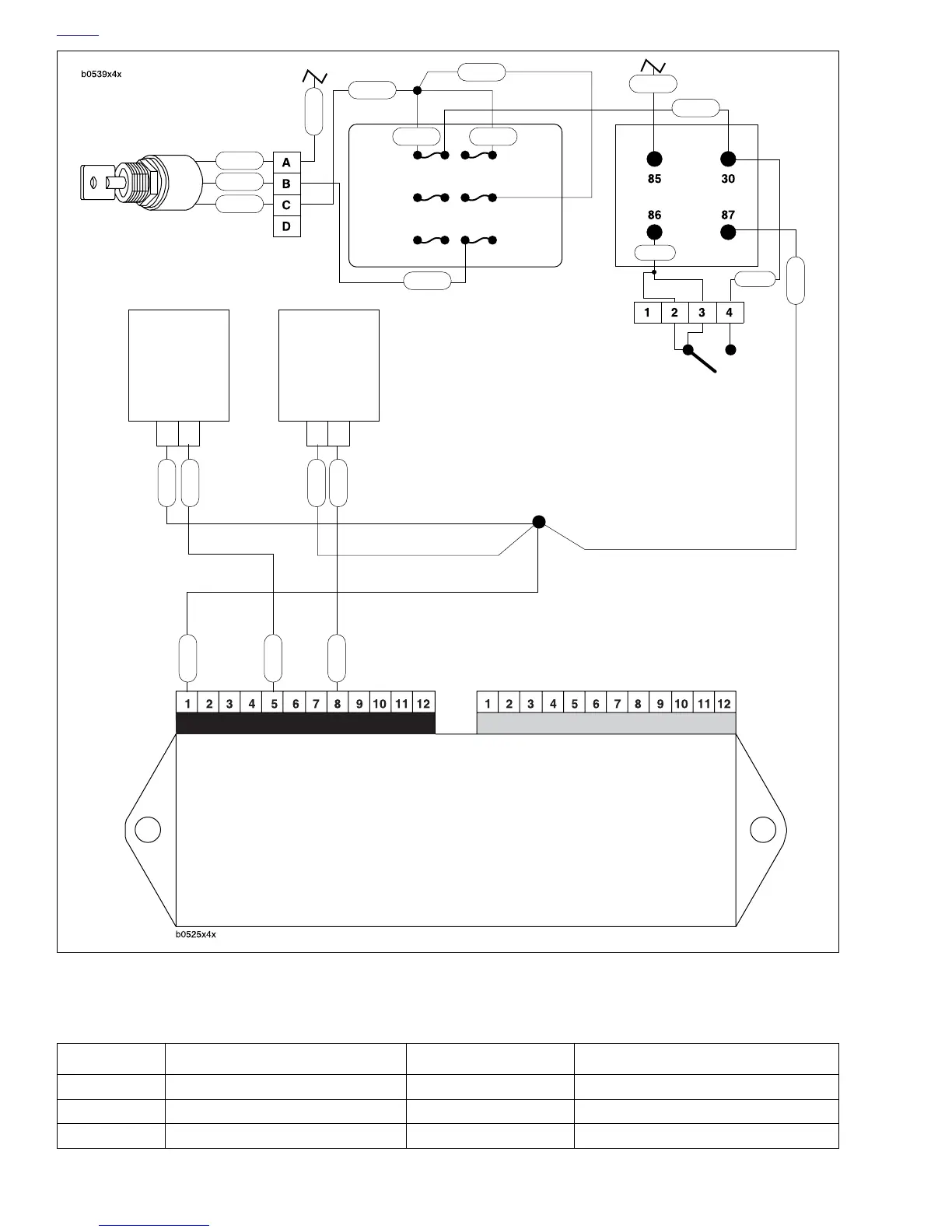

Figure 4-52. Fuel Injector Circuit
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main Circuit
Breaker
To Starter
Interlock Circuit
Electronic Control Module
(ECM)
Connector [10] Connector [11]
GY
b0543x4x
12 12
Rear
Fuel
Injector
[85]
Front
Fuel
Injector
[84]
W/Y
W/Y
GN/GY
GY
GN/GY
GY
GY
Table 4-21. Wire Harness Connectors in Figure 4-52.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under tail section
[84] Front Injector 2-place under fuel cell
[85] Rear Injector 2-place under fuel cell
