4-88 2002 Buell S3T: Fuel System
HOME

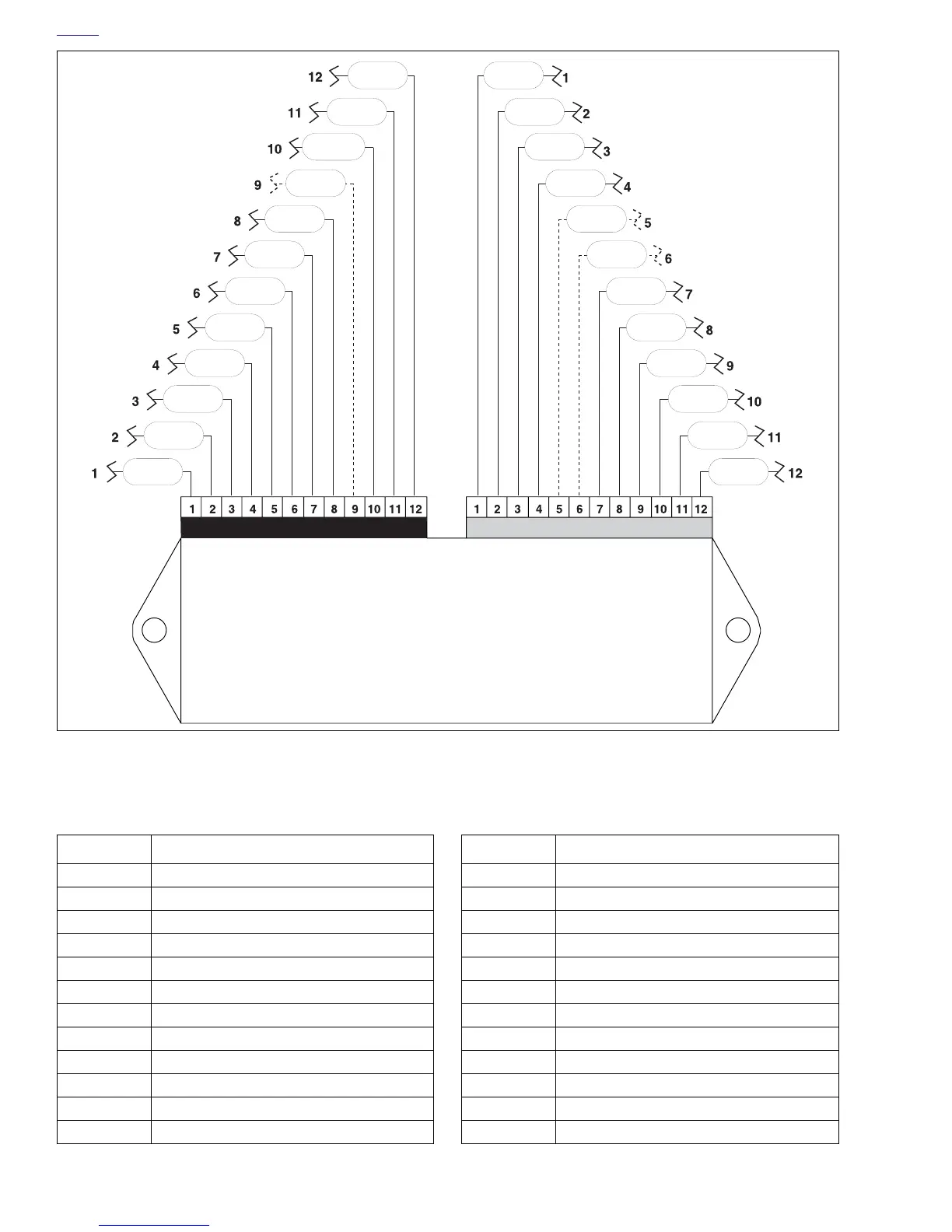

Figure 4-68. ECM Wiring
Connector [10]
b0650x4x
R/W
V/Y
GN/W
V/GY
—
—
BK/W
BK
PK/Y
Lt GN/Y
Lt GN/R
V/R
PK
BK
Lt GN/GY
—
GN/GY
Y/BE
BE/O
W/Y
BK/Y
BN/Y
BK
GY
Connector [11]
Electronic Control Module
(ECM)
Table 4-27. Pin Table for
ECM Connector [10] (Black)
PIN FUNCTION
1 Switched ignition
2System ground A (module)
3 Fuel pump output
4 Check engine lamp
5Injector front output
6Front coil primary
7 Rear coil primary
8Injector rear output
9 No function
10 Bank angle sensor input
11 System ground B (coil)
12 Tachometer out
Table 4-28. Pin Table for
ECM Connector [11] (Gray)
PIN FUNCTION
15 volt sensor power
2 Throttle position sensor
3Camshaft position sensor
4Oxygen sensor
5No function
6No function
7 Sensor ground 1
8 Sensor ground 2
9 Engine temperature input
10 Intake air temperature input
11 Serial data receive
12 Serial data transmit
