2002 Buell S3T: Drive/Transmission 6-7
HOME
INSTALLATION
1. Slide a new belt over the sprockets.
CAUTION
●
Use caution when installing isolator bolts. Make sure
isolator bolt hole is aligned with threaded hole in
bearing adjusting bolt to avoid cross-threading bolt.
●
Observe seam on rubber isolator after isolator bolt
is tightened. If seam twists, apply more LOCTITE
ANTI-SEIZE to underside of isolator bolt heads. Fail-
ure to comply will result in damage to rubber isola-
tors. See Figure 6-9.
2. See Figure 6-8. Install right rear isolator. See 2.20 REAR
ISOLATORS.
3. See Figure 6-9. After tightening isolator bolt, verify that
seam on isolator is perpendicular to swingarm mount
block.
4. Install rear fender. See 2.32 REAR FENDER.
5. Align the new belt and rear wheel. See 1.10 DRIVE
BELT DEFLECTION.
6. Install sprocket cover. See 2.29 SPROCKET COVER.
7. Install the stone guard and lower belt guard. See 2.30
STONE GUARD.
8. Connect negative battery cable to battery.

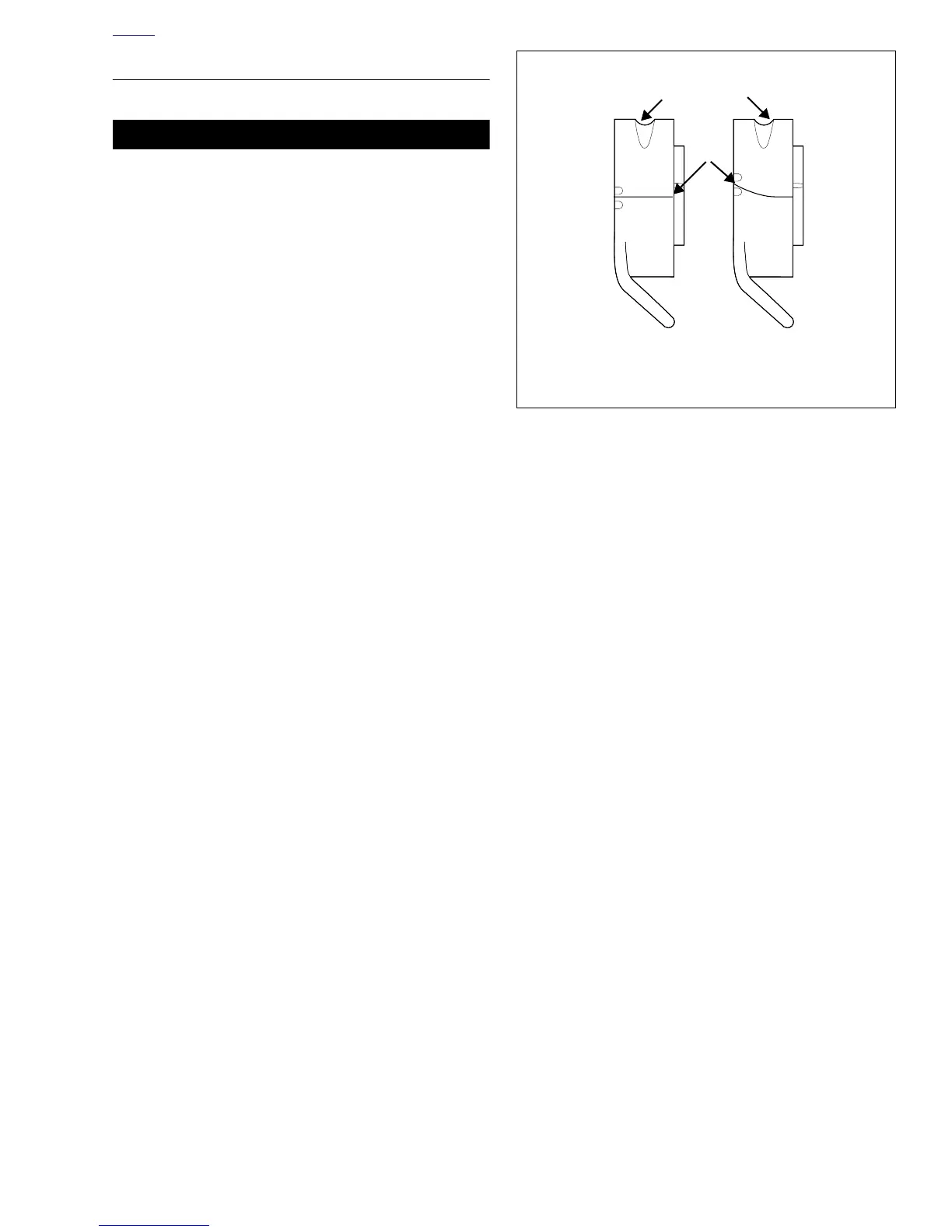

Figure 6-9. Isolator Alignment
b0674b2x
Straight Line
(Correct)
Twisted Line
(Incorrect)
Marked
Rear Isolator
Line
OBSERVE MARKED LINE WHILE TIGHTENING
