6-12 2002 Buell S3T: Drive/Transmission
HOME

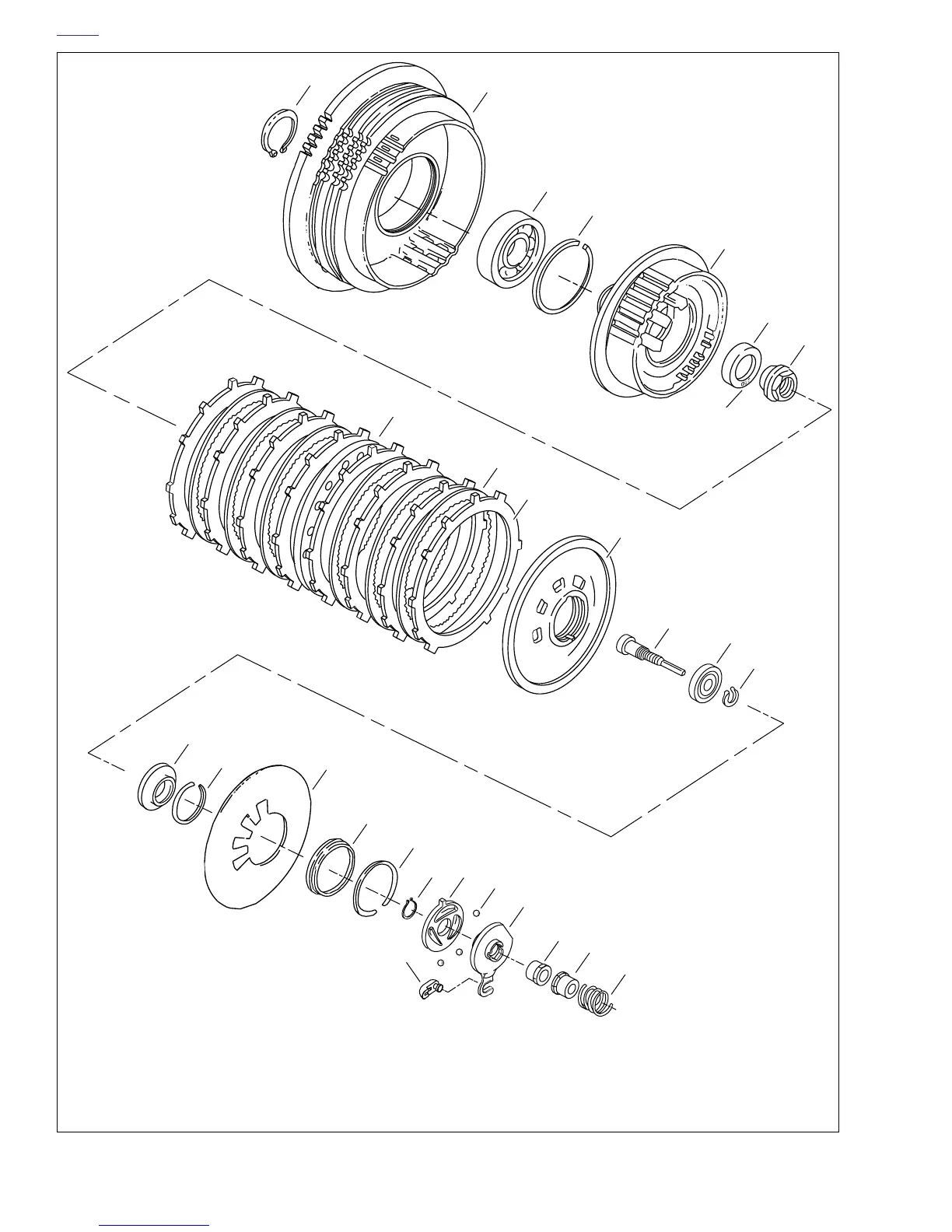

Figure 6-16. Clutch Assembly
1. Spring
2. Lockplate
3. Wellnut
4. Coupling
5. Outer Ramp
6. Ball (3)
7. Inner Ramp
8. Retaining Ring
9. Snap Ring
10. Spring Seat
11. Diaphragm Spring
12. Retaining Ring
13. Release Plate
14. Retaining Ring
15. Bearing
16. Adjusting Screw
17. Pressure Plate
18. Fiber Plate (8)
19. Steel Plate (6)
20. Spring Plate
21. Mainshaft Nut
22. Washer
23. Clutch Hub
24. Retaining Ring
25. Bearing
26. Clutch Shell
27. Retaining Ring
b0009c6x
27
26
25
24
23
22
21
20
19
18
17
16
15
14
1
2
3
5
6
7
9
10
11
12
13
8
4
Labeled
“OUT”
