13. See Figure 6-28. Lock transmission in gear. Remove
countershaft TORX screw (2) and retention collar (1).
14. See Figure 6-29. Detach spring (1) from groove in
post (2).
15. Remove retaining ring (9) and detent plate (8). You will
need to use a new retaining ring for installation.
16. Remove two locknuts (3) and washers (10) which attach
shifter shaft assembly (6) to studs at transmission case.
Remove shifter shaft assembly.
17. Remove five access door bolts with captive washers (7).
Remove transmission assembly by pulling it straight out-
ward, away from transmission case.
CLEANING AND INSPECTION
Thoroughly clean transmission compartment with cleaning
solvent. Blow parts dry with compressed air. Inspect parts to
determine if any must be replaced. Replace all parts that are
badly worn or damaged.
Neutral Indicator Switch
See Figure 6-30. The neutral indicator switch is threaded into
the transmission portion of the right crankcase half. See 7.7
NEUTRAL INDICATOR SWITCH for testing, removal and
installation procedures.

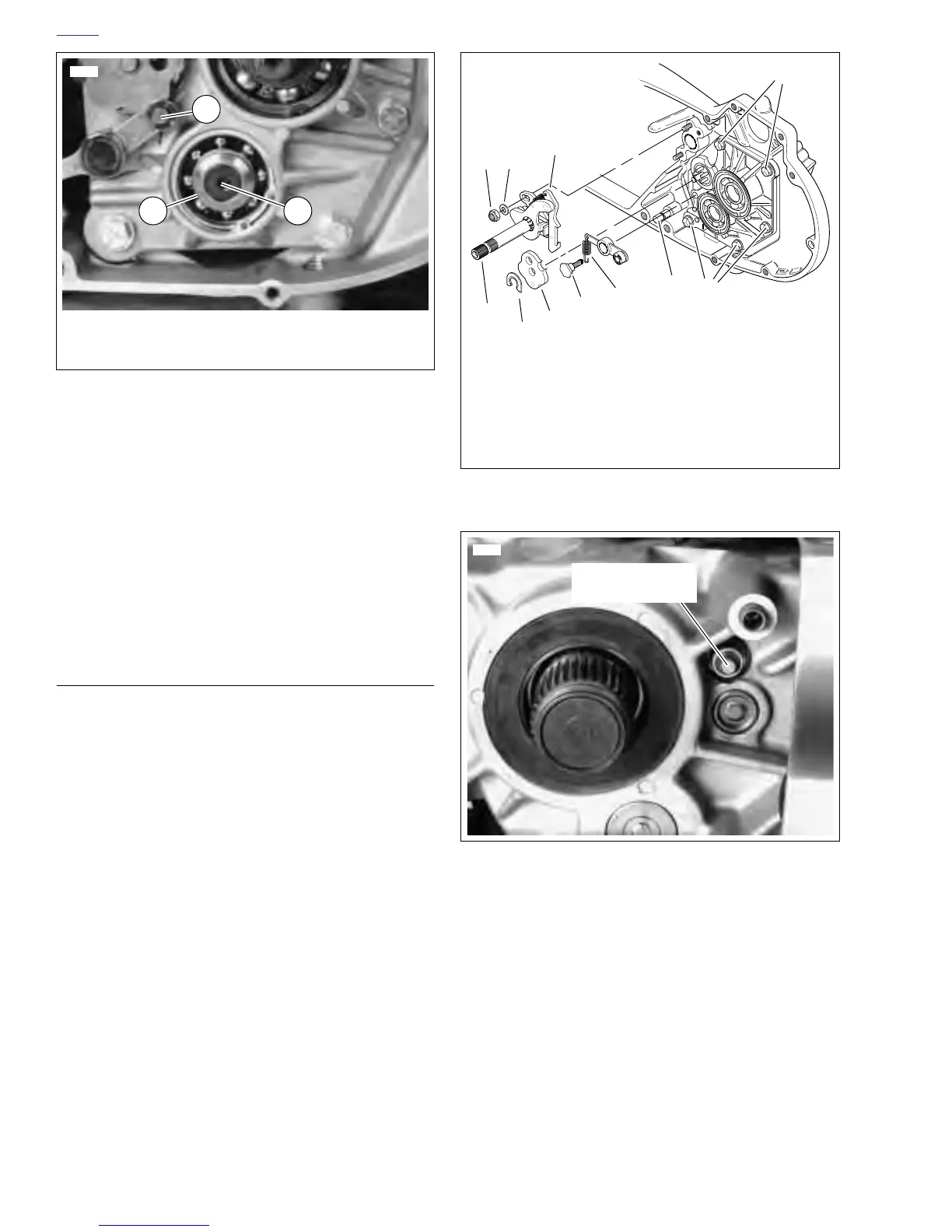

Figure 6-28. Countershaft Retainer
3557
1. Retention Collar
2. TORX Screw
3. Detent Roller Arm
1 2
3
Figure 6-29. Shifter Shaft Assembly
Figure 6-30. Neutral Indicator Switch
7. Bolt w/Captive
Washer (5)
8. Detent Plate
(Typical)
9. Retaining Ring
10. Washer (2)
b0153x6x
3 10
5
6
9
8
4
1
2
7
7
1. Spring
2. Post
3. Locknut (2)
4. Detent Screw
5. Pawl
6. Shifter Shaft Assembly
Neutral Indicator
Switch
3553
