2002 Buell S3T: Electrical 7-11
HOME
INSPECTION
The starter interlock system is designed to prevent unin-
tended start-up and/or forward motion of the motorcycle with
the vehicle’s side stand not retracted. Use the following tests
to check the system for proper operation.
The reference numbers below correlate with the circled num-
bers in the 7.6 STARTER INTERLOCK flow charts.
1. Check diode with an ohmmeter as shown in Figure 7-11
2. Check diode polarity as shown in Figure 7-11

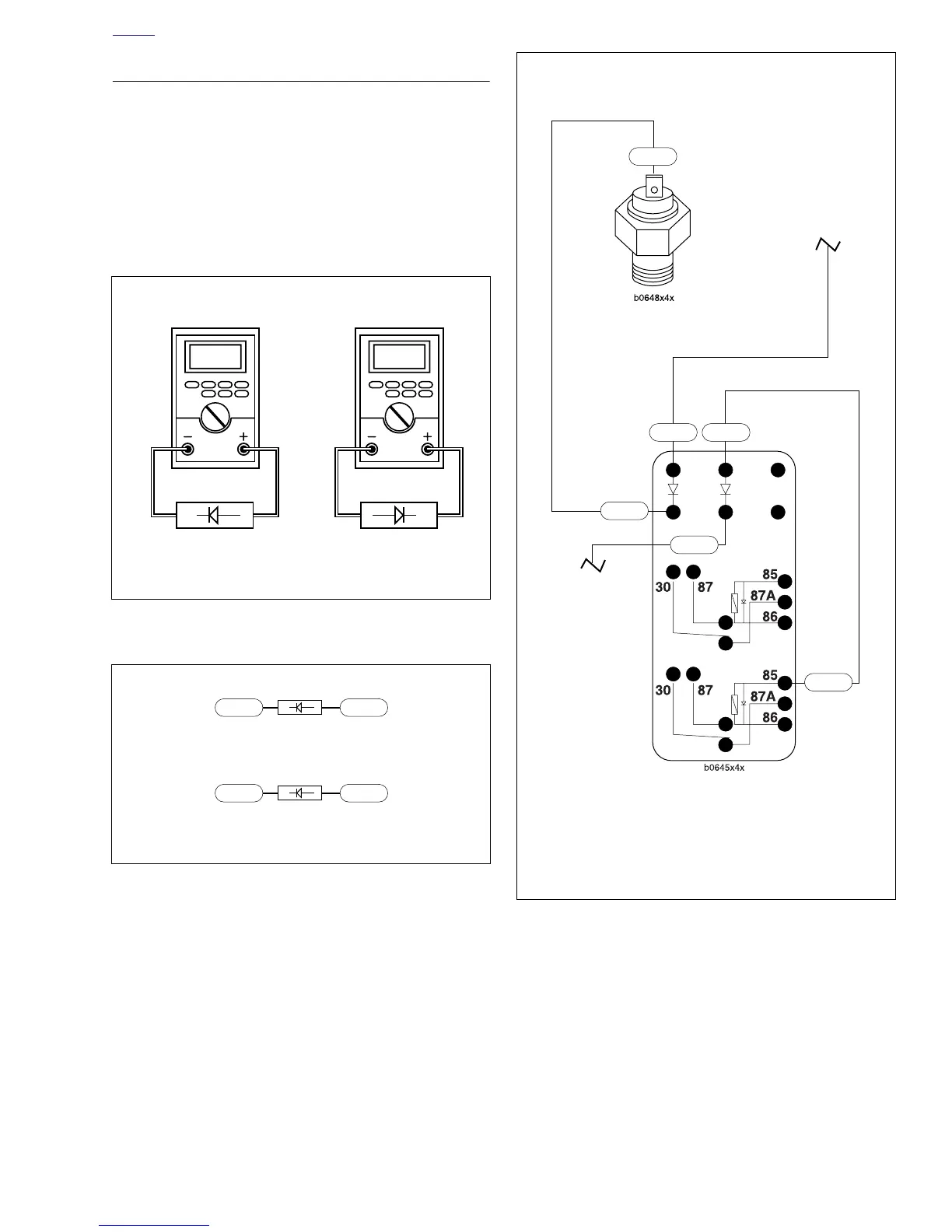

Figure 7-8. Ohmmeter Diode Test
Figure 7-9. Diode Polarity
Continuity Infinite
ohms
b0643x4x
b0644x4x
TN TN/GN
Diode 1 Polarity
TN/GN TN/W
Diode 2 Polarity
Figure 7-10. Diode Wiring
TN/W
TN/W
Relay Block
Diode 1
Diode 2
TN
Neutral
Switch
TN
TN/GN
To Clutch
Switch [95]
To Clutch
Switch [95]
TN/GN
Ignition Relay
To Next Page
