7-38 2002 Buell S3T: Electrical
HOME
Rear
1. See Figure 7-45. Insert bullet connectors (3) through
rear hole in license plate bracket. Attach turn signals (2)
using screws (1) through front hole and nuts (4).
NOTE
Install turn signal with lens drain hole facing downward.
2. Attach bullet connectors on turn signal wires as shown in
Figure 7-44.
3. Use new cable straps (5) to bundle turn signal wires
beneath tail section.
4. Attach saddlebags to bracket. See 2.37 SADDLEBAGS.
11WARNING1WARNING
Check for proper turn signal operation before riding
motorcycle. Failure to have proper turn signal operation
could result in death or serious injury.
5. Check turn signals for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to IGN.
b. Activate left turn signals using switch on left handle-
bar. Front and rear left turn signals must flash.
c. Activate right turn signals using switch on left han-
dlebar. Front and rear right turn signals must flash.
d. Turn ignition key switch to OFF.

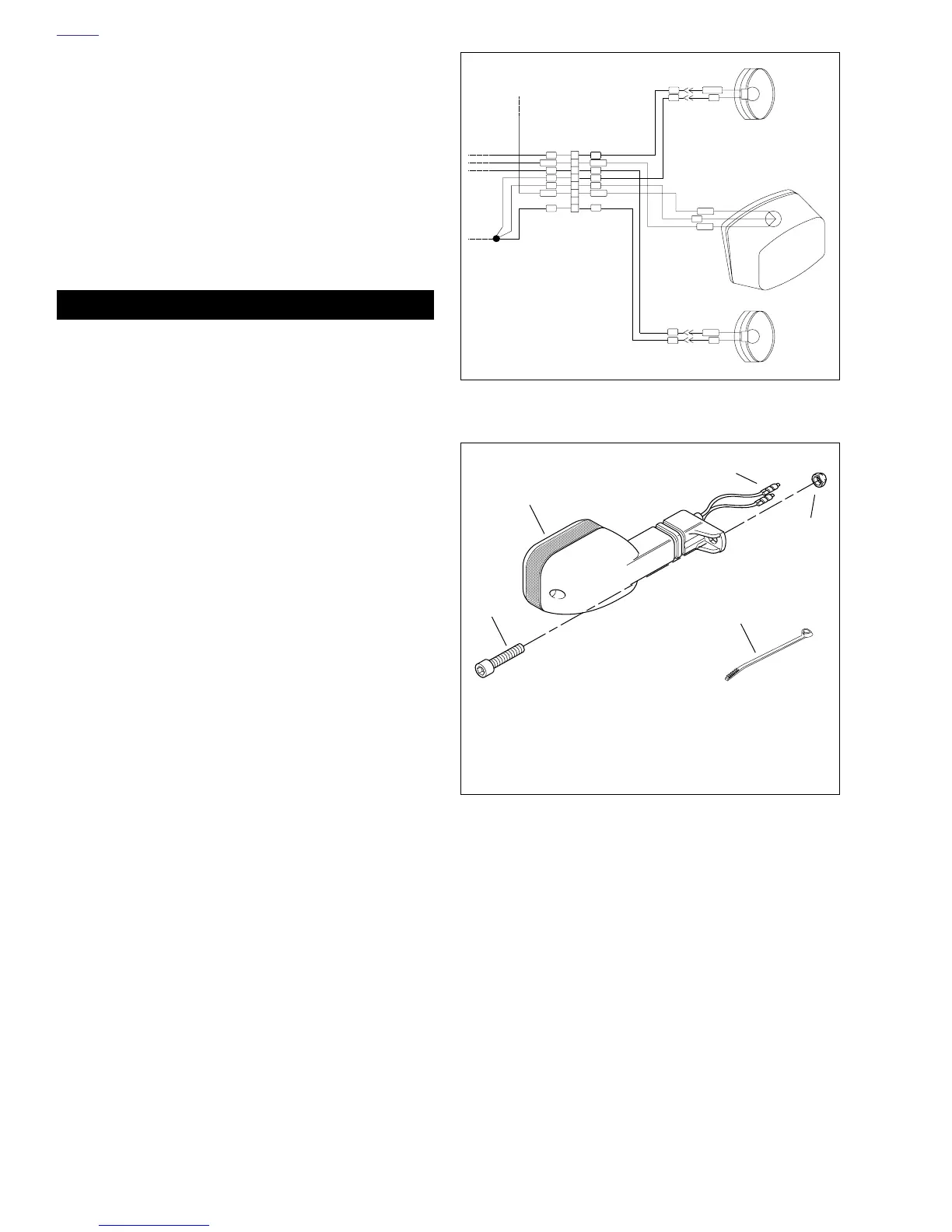

Figure 7-44. Rear Turn Signal Connections
Figure 7-45. Rear Turn Signals
RIGHT REAR TURN SIGNAL
1
2
3
4
5
6
7
8
P11
BK
BK
BK
V
R/Y
BN
V
O/W
BK
BK
R/Y
V
BK
BK
TAIL LAMP AND
REAR TURN SIGNALS
R/Y
BK
O/W
BE
R/BK
TAIL LAMP
LEFT REAR TURN SIGNAL
BEBK
LT.BE
BN
O/W
BN
S2
b0230b7x
b0232a7x
1. Screw (2)
2. Turn Signal
3. Bullet Connectors (2 per Signal)
4. Nut (2)
5. Cable Strap
1
2
3
5
4
