Speedometer Needle Sweep Test
The tester’s sweep function moves the speedometer needle
through the full range of movement. This allows for testing the
smoothness of operation and checking for hesitancy or a
stuck needle.
1. See Figure 7-65. Disconnect speedometer sensor con-
nector. Attach speedometer tester connector to speed-
ometer sensor connector.
2. Place speedometer tester power switch in the ON posi-
tion. Place signal switch in the OUT position.
3. Turn vehicle ignition switch ON.
4. Begin test by pressing 0 on the tester keypad, then
pressing ENTER. The tester will scan for two seconds,
then the tester will put out a 1 Hz signal.
5. Select a test range.
a. Press 2 to select LO range (1-20 Hz).
b. Press 5 to select CEN range (21-999 Hz).
c. Press 8 to select HI range (1000-20,000 Hz).
6. After selecting a range, use the corresponding arrow
keys to accelerate through the range. As you move
through the speed range, check for smooth needle
movement.
a. If testing LO range, press 1 or 3.
b. If testing CEN range, press 4 or 6.
c. If testing HI range, press 7 or 9.
Speedometer Sensor Test
If the speedometer is inoperative, but backlighting and odom-
eter work, the speedometer sensor may not be working.
See Figure 7-66. Fabricate a test harness using the following
parts. This harness can also be used to test the tachometer.
● Two Deutsch 3-place socket housings (Part No. 72113-
94BK).
● Deutsch 3-place pin housing (Part No. 72103-94BK).
● Six lengths of 18 gauge wire, each 6.0 in. (15 cm) long.
● Test for voltage to sensor by checking for 8-12 VDC on
red wire in connector [65].
● Then check for continuity to ground on black wire in con-
nector [65].
1. Install the test harness between the speedometer sensor
connector [65].
2. Raise rear wheel off floor using REAR WHEEL SUP-
PORT STAND (Part No. B-41174).
3. Place speedometer tester power switch in the ON posi-
tion. Place signal switch in the IN position.
4. Plug the speedometer tester into the test harness. Turn
vehicle ignition switch ON.
5. Press ENTER on the tester keypad.
6. Rotate the motorcycle’s rear wheel.
a. If reading on speedometer tester changes as wheel
is rotated, speedometer sensor is OK.
b. If reading does not change, speedometer sensor is
suspect. Install a known, good speedometer sensor
and test again.

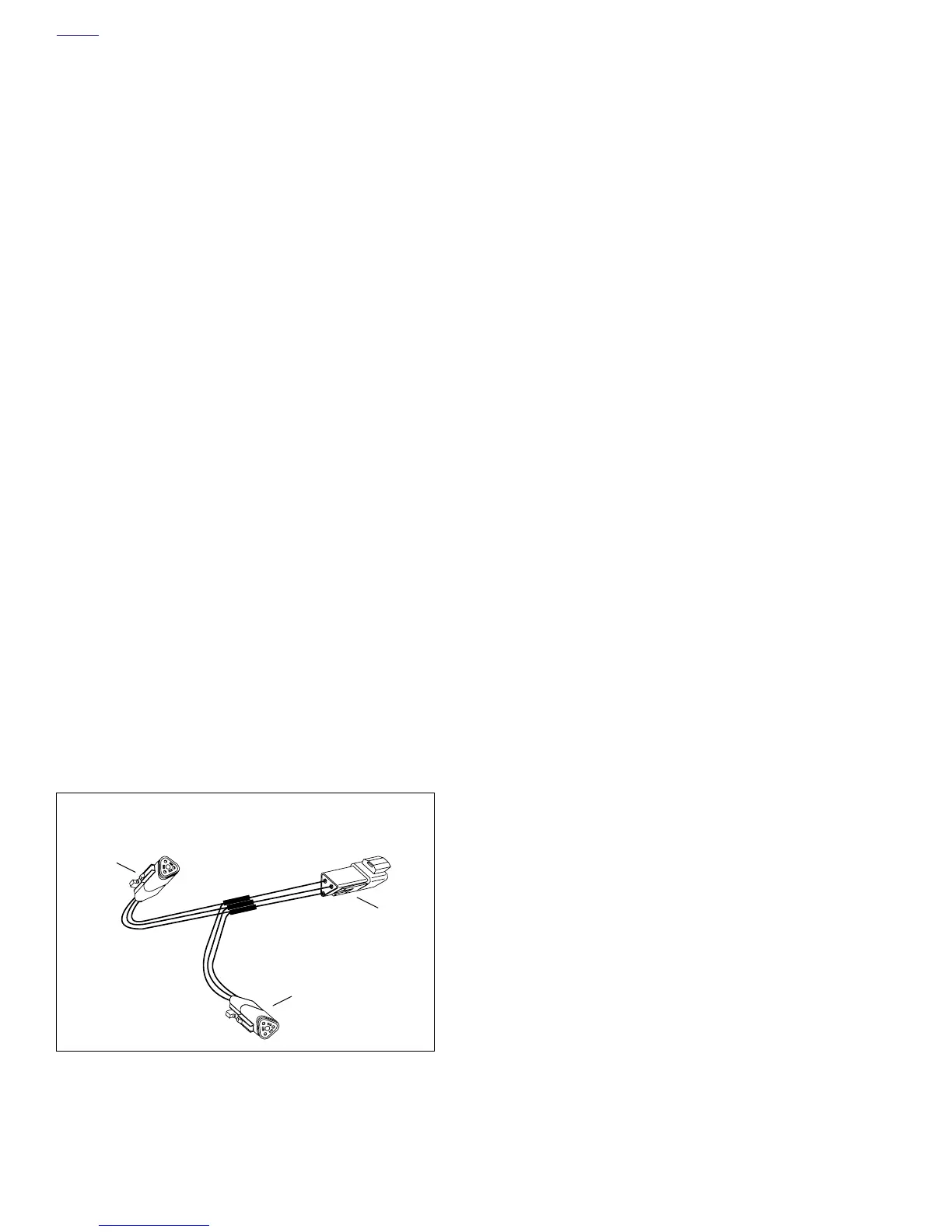

Figure 7-66. Test Harness
1. Deutsch Socket Housing (2)
2. Deutsch Pin Housing
1
1
2
b05932x7x
