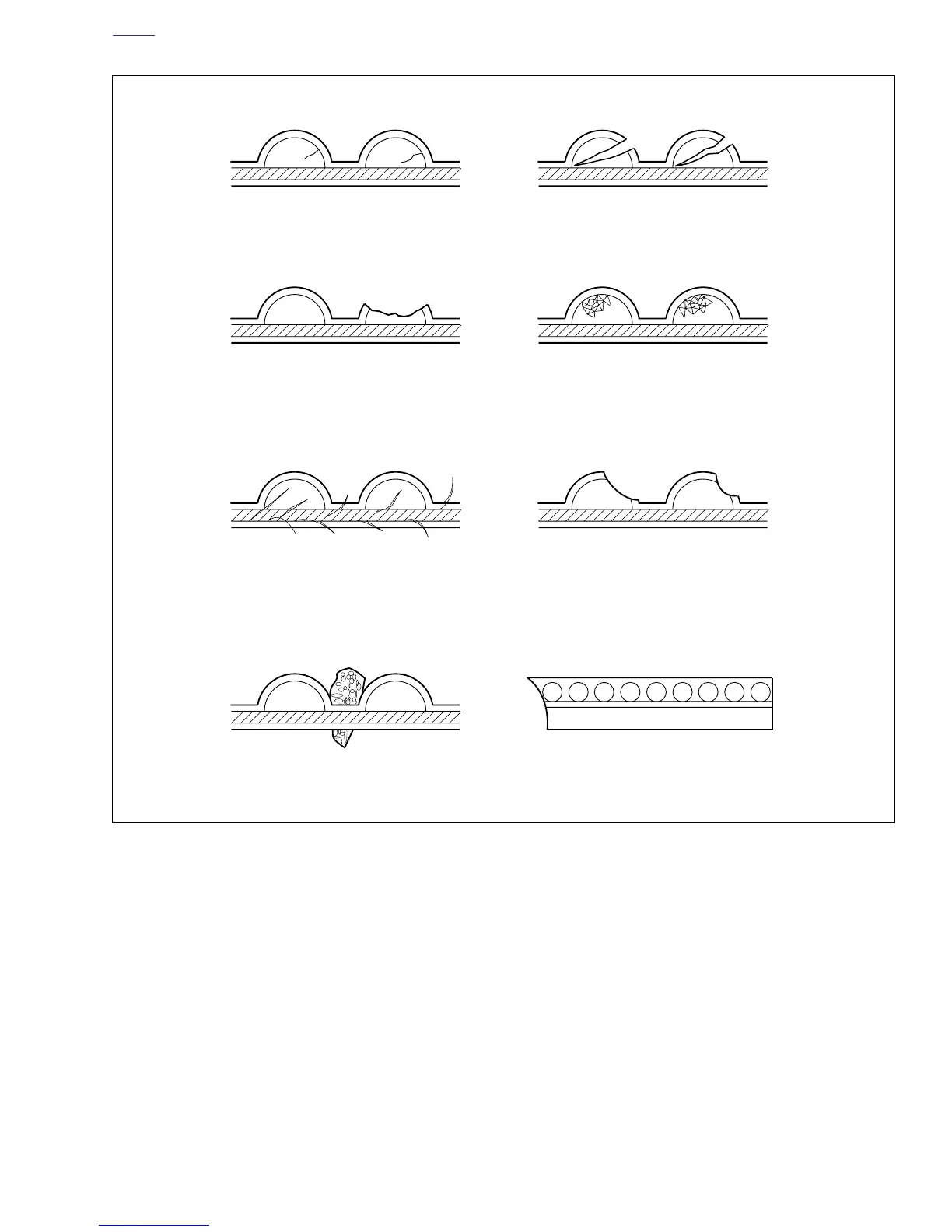

Figure 1-27. Drive Belt Wear Patterns
b0086a6x
#1 Internal Tooth Crack (Hairline)
OK to Run, but monitor condition
#3 Missing Teeth
Replace Belt
#5 Fuzzy Edge Cord (Not Serious)
OK to Run, but monitor condition
#7 Stone Damage
Replace Belt if damage is on edge
#2 Pac Man Cracks
Replace Belt
#4 Chipping (Not Serious)
OK to Run, but monitor condition
#5 Hook Wear
Replace Belt
#8 Bevel Wear (Outboard Edge Only)
OK to Run, but monitor condition
