2006 Buell Lightning: Chassis 2-15
HOME
8. See Figure 2-15. Remove the BACKING PLATE (Part
No. B-43993-11) from the long forcing screw. Reinstall
the Backing Plate onto the forcing screw, with the smaller
diameter toward the hex-head.
9. Insert the forcing screw through the wheel hub on the
opposite side of the wheel.
10. See Figure 2-16. Install the spacer.
11. See Figure 2-17. Insert a new wheel bearing (1)
squarely into the hub, with the lettered side pointing out
(away from the wheel).
12. Slide the FRONT BEARING INSTALLER (Part No. B-
43993-9) (2) onto the forcing screw (3), with the smaller
diameter toward the bearing bore.
13. Install a washer (4), Nice bearing (5) and nut (6) onto the
forcing screw (3).
NOTE
See Figure 2-16. Center the spacer while installing the wheel
bearing. Failure to center the spacer could cause the bearing
not to pull in straight.
14. While holding the forcing screw (3), tighten the nut (6)
until the bearing contacts the spacer.
15. Remove the nut, bearing, washer, FRONT BEARING
INSTALLER (Part No. B-43993-10) and forcing screw.
16. Install the wheel. See INSTALLATION under 2.5 FRONT
WHEEL.

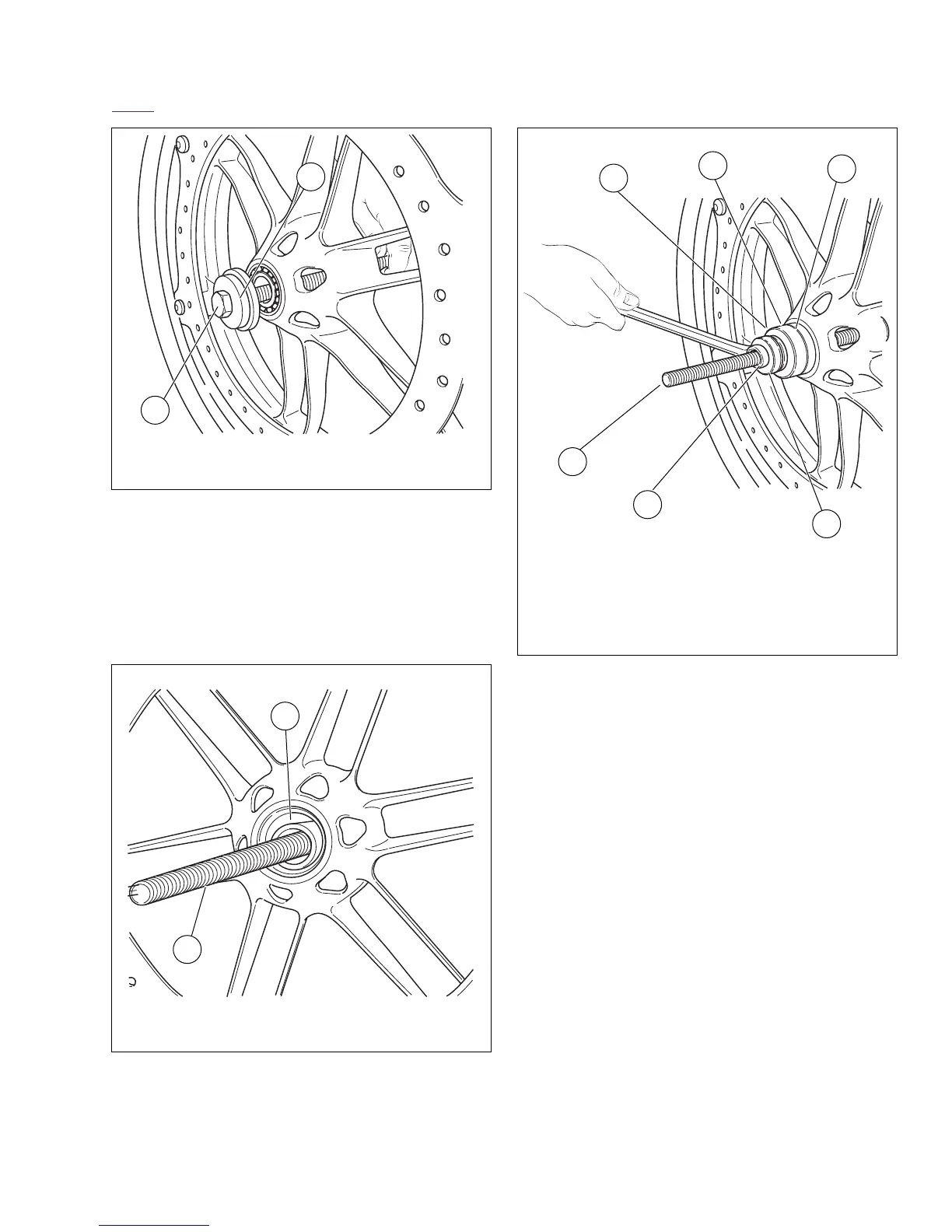

Figure 2-15. Insert Forcing Screw and Backing Plate
Figure 2-16. Install the Spacer
i04283
1. Forcing screw
2. Backing Plate
1
2
i04286
1. Forcing screw
2. Spacer
2
1
Figure 2-17. Install the Bearing
i04287
1. Wheel bearing
2. Front Wheel Bearing Installer (B-43993-9)
3. Forcing screw
4. Washer
5. Nice bearing
6. Nut
5
1
6
3
4
2
