3-12 2006 Buell Lightning: Engine
HOME

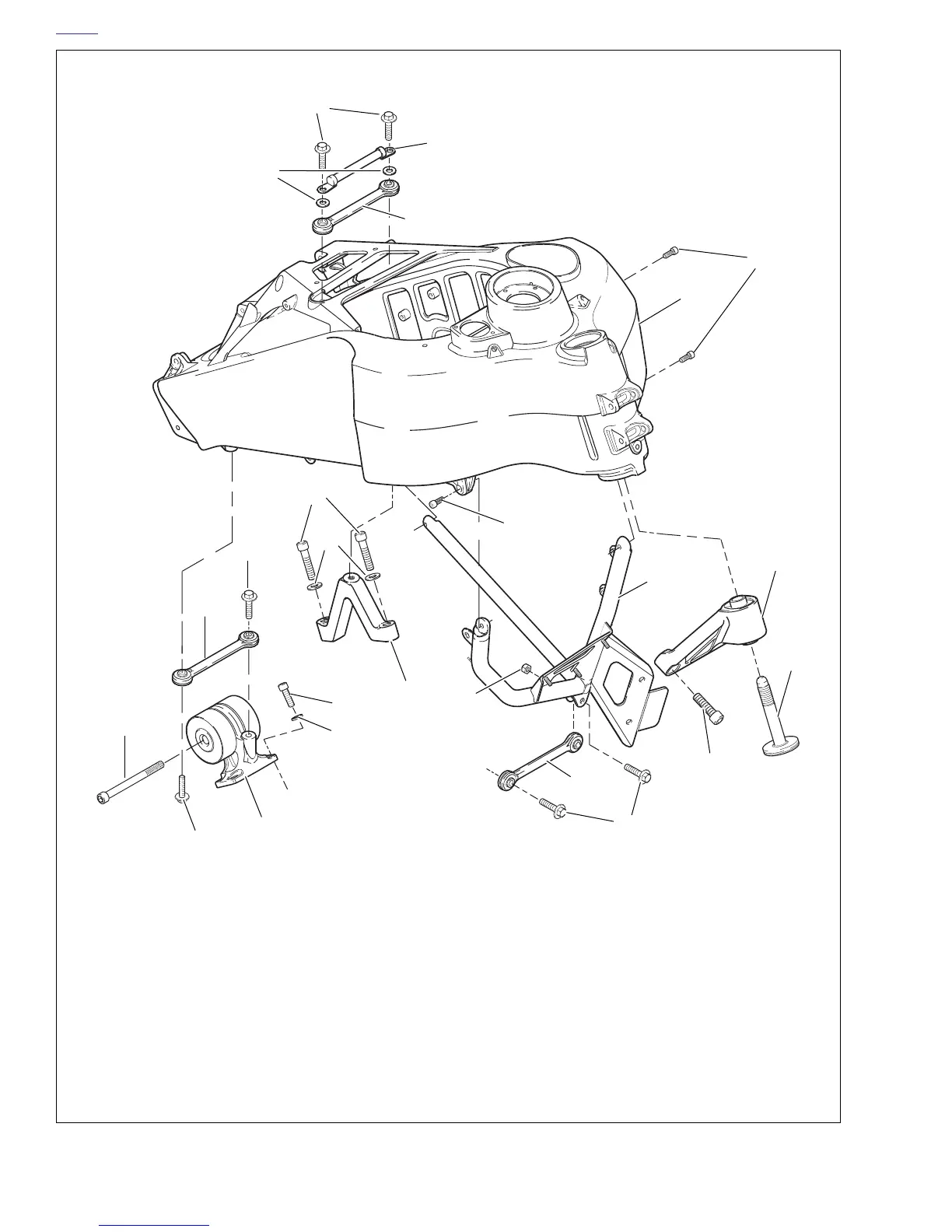

Figure 3-5. Engine Mounting System
1. Frame assembly
2. “V” bracket
3. Fasteners for “V” bracket (3)
4. Front isolator assembly
5. Fasteners (2)
6. Bolt
7. Front tie bar assembly
8. Fasteners for front tie bar assembly (2)
9. Nut for one fastener for front tie bar assembly
10. Center tie bar mount
11. Fasteners for center tie bar mount (2)
12. Washers for center tie bar mount (2)
13. Center tie bar assembly
14. Fasteners for center tie bar assembly (2)
15. Washers for center tie bar assembly (2)
16. Ground strap
17. Rear isolator assembly
18. Fasteners for rear isolator assembly (4)
19. Washers for rear isolator assembly (4)
20. Bolt
21. Rear tie bar assembly
22. Fasteners for rear tie bar assembly (2)
b0985x3x
22
19
18
17
22
21
20
10
11
16
3
1
4
14
13
15
12
6
2
7
8
5
3
9
