19. Support engine with wide scissors jack.
20. Unbolt “V” bracket from main frame.
21. Remove center tie bar from engine.
22. See Figure 3-6. Remove rear tie bar from frame only.
23. Loosen rear isolator bolt. DO NOT REMOVE.
24. See Figure 3-7. Remove front isolator bolt (1).
25. Remove front isolator mount (2) from engine.
26. Rotate engine down.

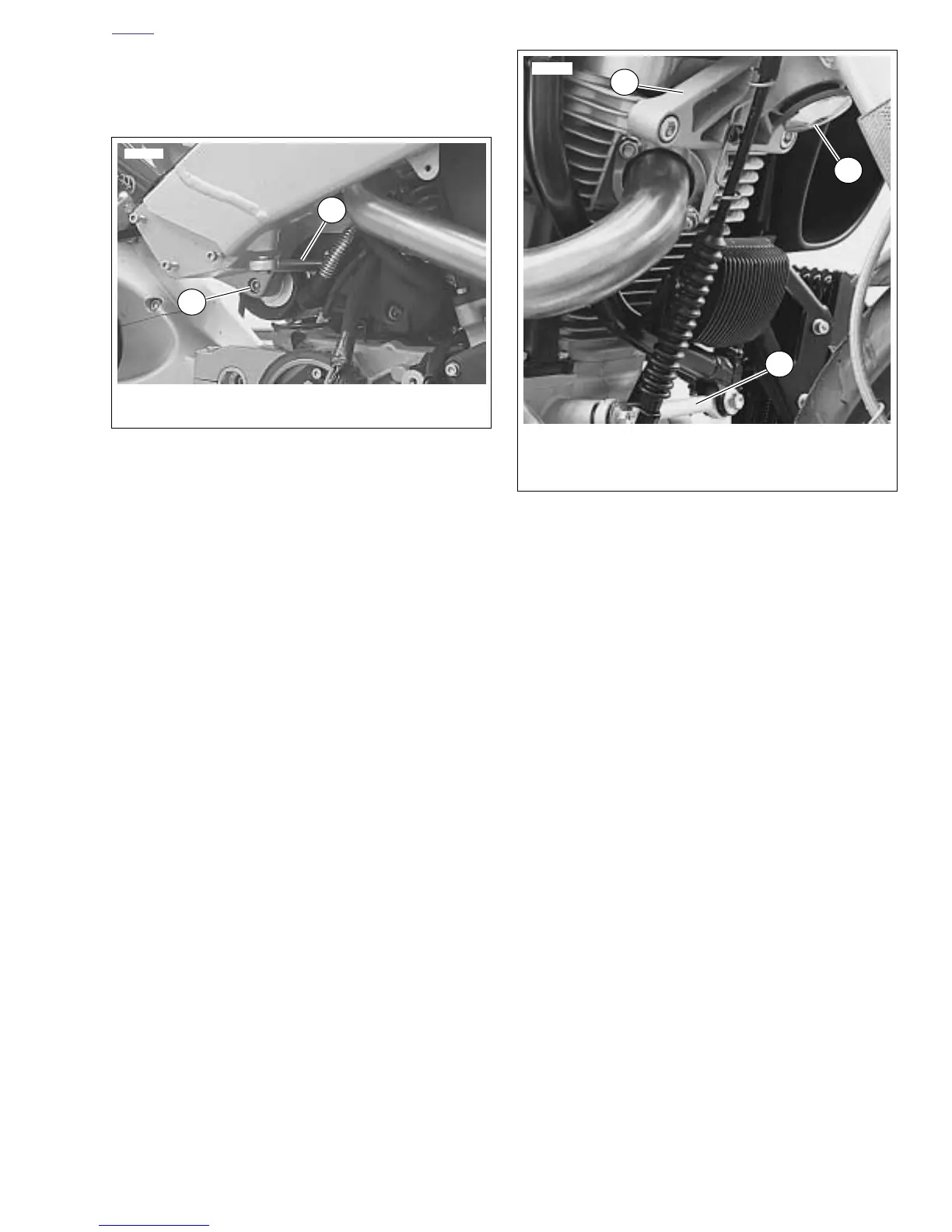

Figure 3-6. Rear Isolator Bolt and Rear Tie Bar (Typical)
1. Rear isolator bolt
2. Rear tie bar
2
1
8735
Figure 3-7. Front Isolator and Tie Bar Assemblies
1. Front isolator bolt
2. Front isolator mount
3. Front tie bar
1
3
2
10502
