9. See Figure 3-15. Disconnect the ignition coil connector
(2) and remove.
10. Disconnect the following sensors:
a. Temperature sensor (3) [90].
b. Oxygen sensor (4) [137].
11. Disconnect throttle cables from induction module/throttle
body.

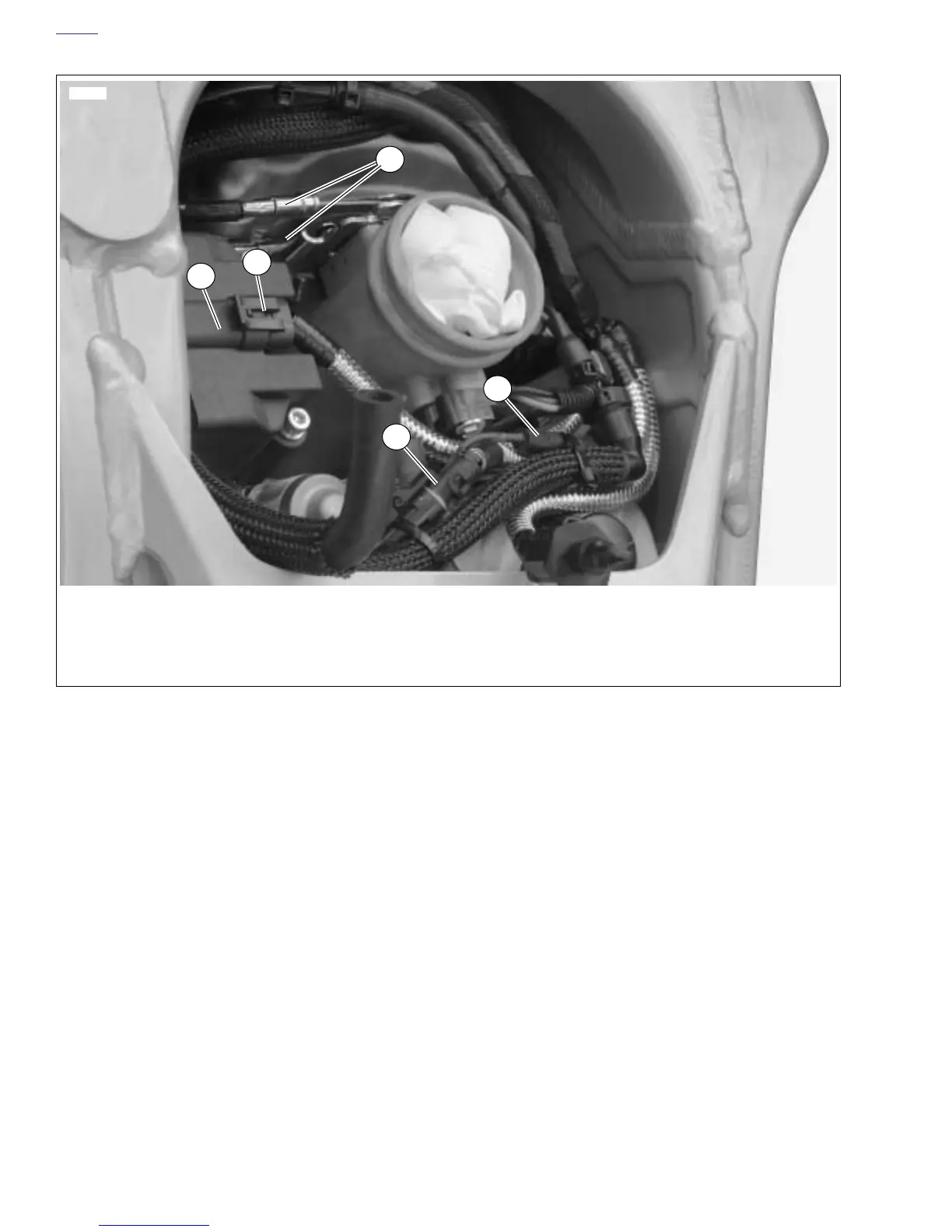

Figure 3-15. Electrical Connections and Throttle Cables (Typical)
1. Ignition coil
2. Coil connection [83]
3. Cylinder head temperature sensor connection [90]
4. Oxygen sensor connection [137]
5. Throttle cables
5
3
2
1
10647a
4
