12. Disconnect and remove air scoops, right and left sides.
13. Remove complete chin fairing, bolts.
14. Remove transmission sprocket side cover.
15. Remove rear belt and idler pulley. See 6.6 DRIVE BELT
SYSTEM.
NOTE
For 1200 models with interactive exhaust system, see 7.6
INTERACTIVE EXHAUST SYSTEM (XB12 MODELS).
16. See Figure 3-16. Remove muffler: 2.31 EXHAUST SYS-
TEM.

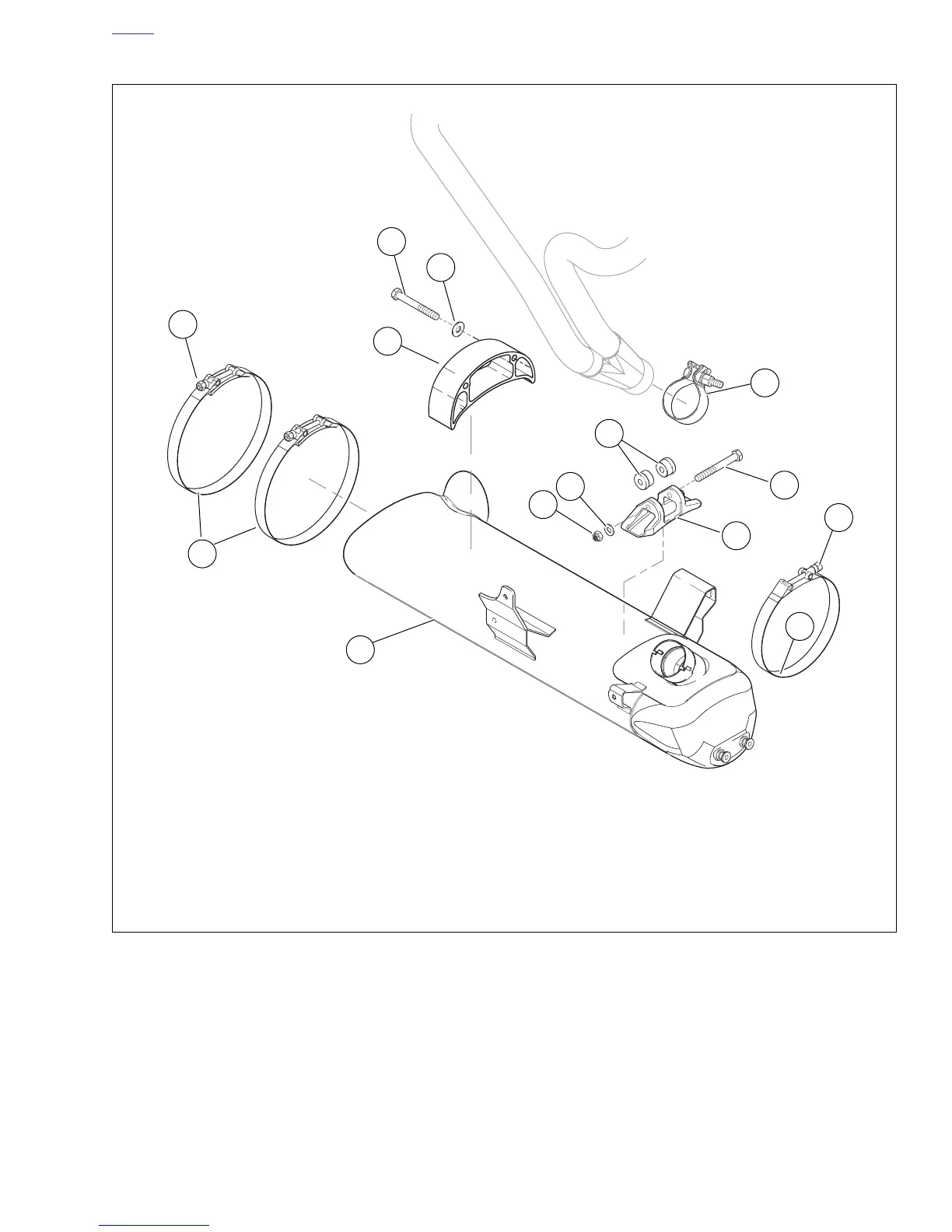

Figure 3-16. Muffler and Mounting System
1. Torca clamp
2. Front muffler mount
3. Screw (1)
4. Bushings (2)
5. Flat washer (1)
6. Nut (1)
7. Front muffler strap fastener
8. Front muffler strap
9. Rear muffler bracket
10. Screw (2)
11. Flat washer (2)
12. Muffler strap fastener
13. Muffler strap (2)
14. Muffler
11
9
14
8
2
1
13
3
10
b0986
x
3
x
12
7
4
5
6
