3-22 2006 Buell Lightning: Engine
HOME
17. See Figure 3-17. Remove oil filter.
18. Remove left and right side rider footrests and support
plates. See 2.32 FOOTPEG, HEEL GUARD AND
MOUNT.
NOTE
When removing the right side rider footrest and support plate,
also remove rear brake pedal assembly and remote reservoir
and secure towards rear of vehicle.

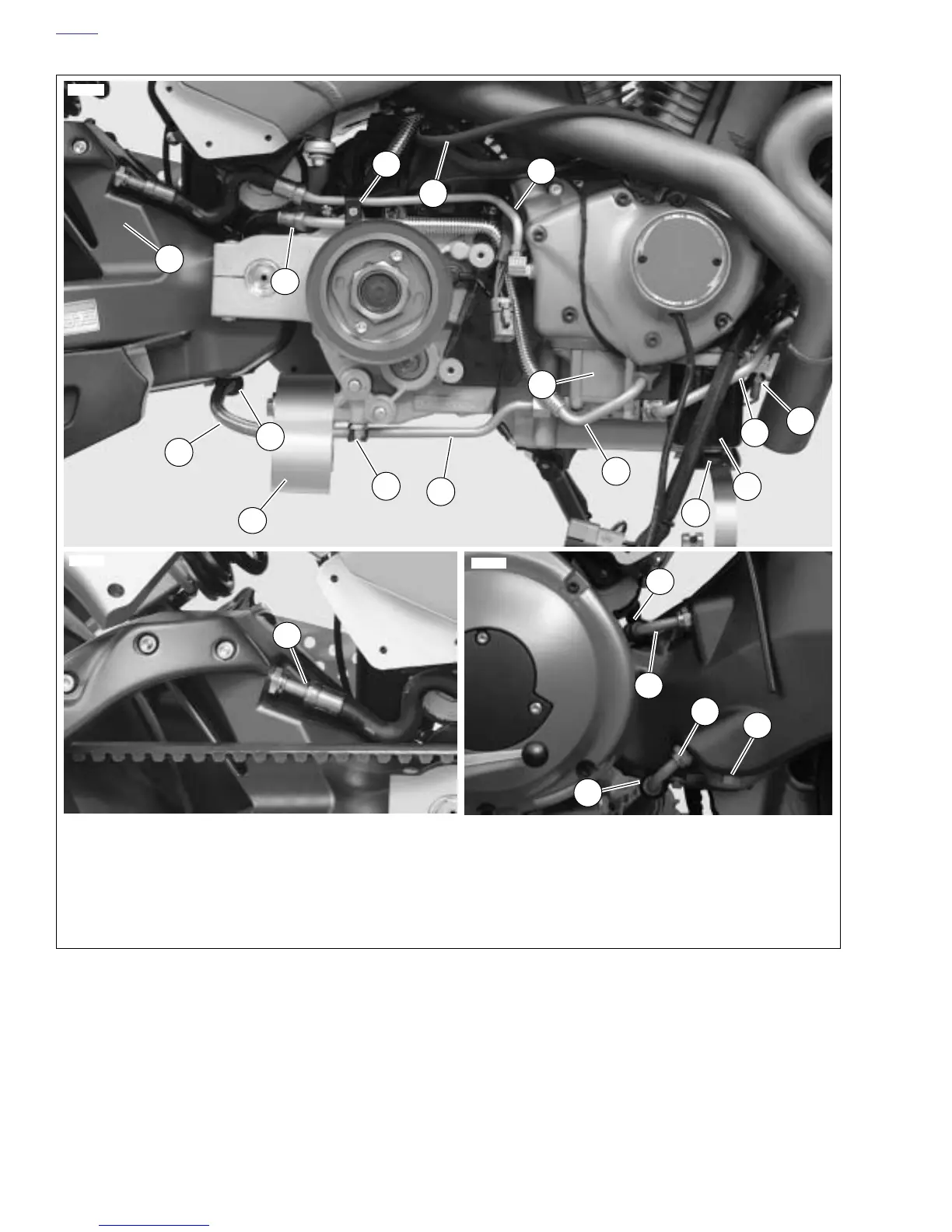

Figure 3-17. Oil Lines and Connections
1. Swingarm/Oil reservoir
2. Vent oil line
3. Feed oil line
4. Return oil line
5. Feed oil line from oil pump to oil cooler
6. Feed oil line from oil cooler to crankcase
7. Oil tank drain plug
8. Oil filter
9. Front muffler mount
10. Rear muffler bracket
11. Cable, interactive exhaust
12. P-clamp
13. Oil line clamp
14. Oil pump
2
7
5
4
3
4
11964a
11963a
10
1
2
3
3
8
9
6
4
11972
11
12
12
13
12
12
14
