3-24 2006 Buell Lightning: Engine
HOME
23. See Figure 3-17. Remove feed oil line (3).
a. Loosen fitting at oil pump (14).
b. Remove two p-clamps (12) from feed oil line (one on
crankcase and one on swingarm/oil reservoir.
c. Remove feed oil line (3) at oil pump (14).
d. Disconnect feed oil line at swingarm/oil reservoir
and remove. See 3.10 OIL LINE FITTINGS/
REMOVAL.
24. Remove front and rear muffler brackets.
25. See Figure 3-17. Remove return oil line (4).
a. See Figure 3-19. Remove convolute covering from
return oil line.
b. See Figure 3-17. Loosen fitting at oil pump (14).
c. Remove p-clamp (12) at swingarm/oil reservoir (1).
d. Disconnect oil return line (4) at swingarm/oil reser-
voir (1). See 3.10 OIL LINE FITTINGS/ REMOVAL.
e. Disconnect oil return line (4) at oil pump (14) and
remove.
26. Disconnect and remove oil cooler oil lines. See 3.11 OIL
COOLER.
27. See Figure 3-20. Disconnect clutch cable.
a. Remove wire form retainer (1) from front isolator.
b. Slide clutch cable adjuster boot (2) up to access
clutch adjuster.
c. Loosen clutch adjuster to release tension from hand
lever.
28. Remove clutch cable ferrule from hand lever.

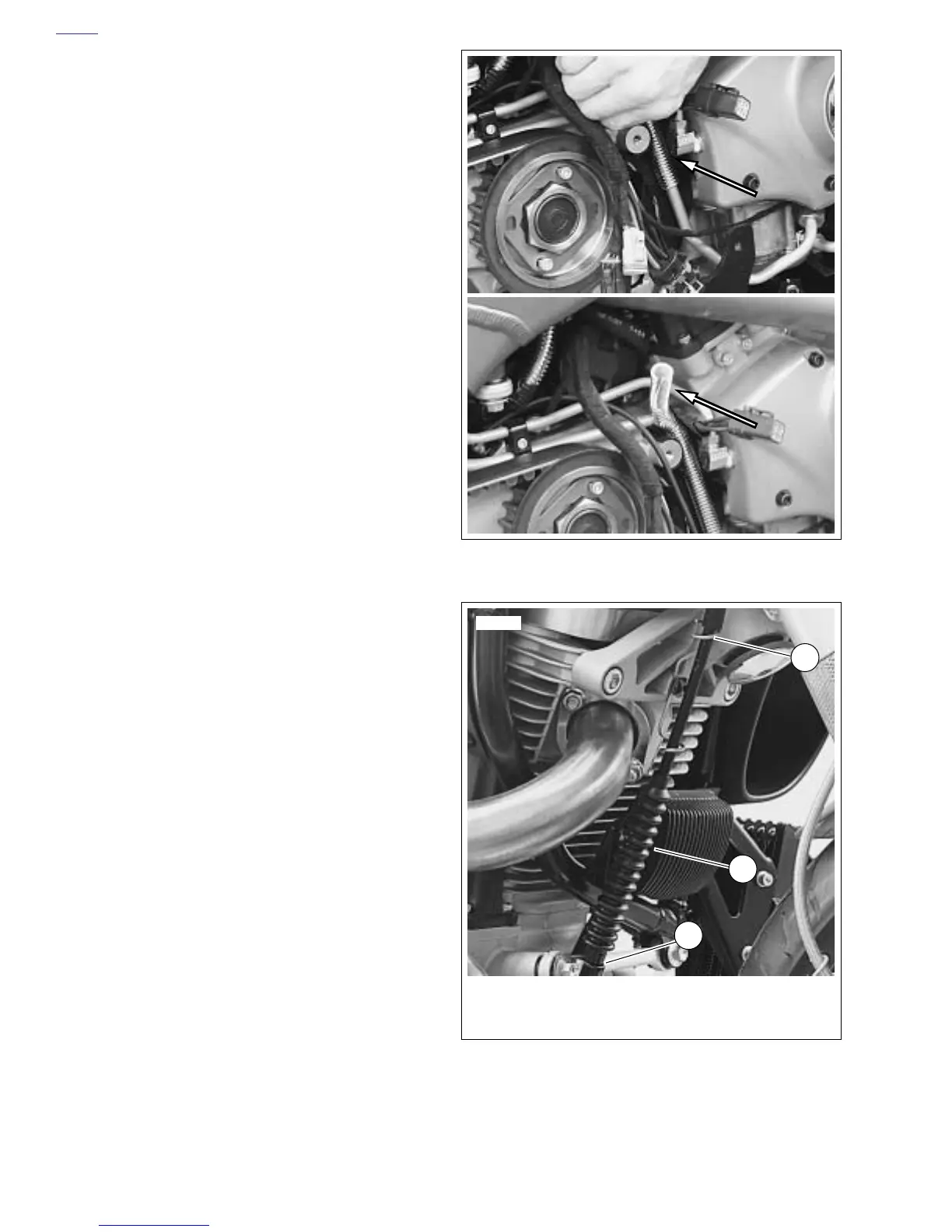

Figure 3-19. Removing Convolute Cover From Oil Line
Figure 3-20. Clutch Cable Wire Form Retainer, Retaining
Clamp and Adjuster Boot
1. Wire form retainer
2. Clutch cable adjuster boot
3. Lower retaining clamp
1
2
3
10502
