2006 Buell Lightning: Engine 3-41
HOME
NOTES
● Never re-use front muffler strap. Always replace front
muffler strap with a new strap when removed from sys-
tem.
● It is important that the front muffler mount is tightened
last in order to ensure proper alignment of the exhaust
system.
● When rear muffler straps have been installed, it is impor-
tant that strap fasteners do not contact idler pulley
bracket.
NOTE
For 1200 models with interactive exhaust system see 7.6
INTERACTIVE EXHAUST SYSTEM (XB12 MODELS).

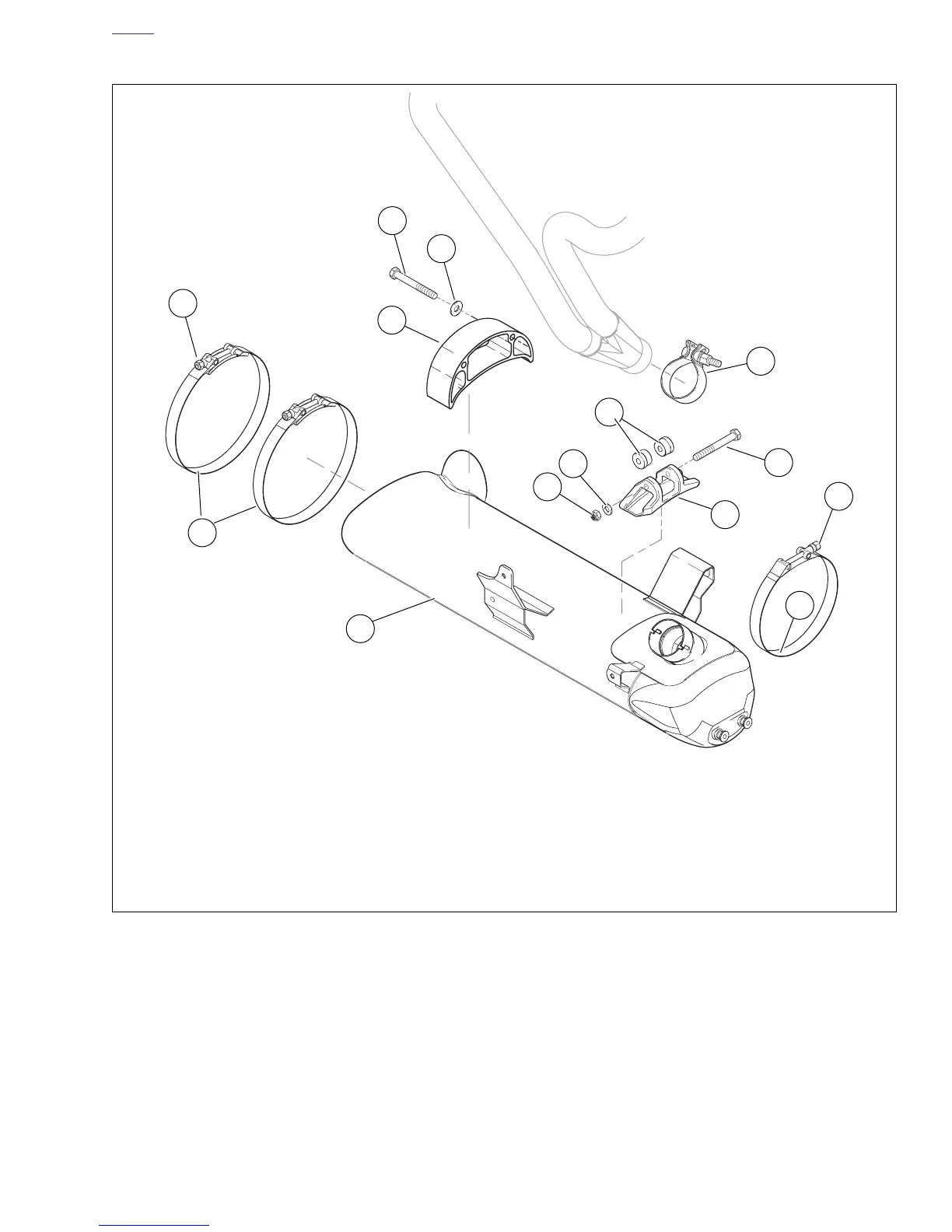

Figure 3-54. Muffler and Mounting System
1. Clamp, Torca
2. Muffler mount, front
3. Screw, front muffler mount (1)
4. Bushings, front muffler mount (2)
5. Flat washer, front muffler mount (1)
6. Nut, front muffler mount (1)
7. Front muffler strap fastener
8. Muffler strap, front
9. Muffler bracket, rear
10. Screw, rear muffler bracket (2)
11. Flat washer, rear muffler bracket (2)
12. Rear muffler strap fastener
13. Muffler strap, rear (2)
14. Muffler
14
8
13
4
b0986x3x
12
7
9
11
10
5
6
1
3
2
