3-42 2006 Buell Lightning: Engine
HOME
36. See Figure 3-54. Install muffler with Torca clamp but do
not tighten: 2.31 EXHAUST SYSTEM
37. See Figure 3-55. Connect throttle cables to induction
module/throttle body. See 1.15 THROTTLE CABLE AND
IDLE SPEED ADJUSTMENT.
38. Connect the following sensors:
a. Temperature sensor [90].
b. Oxygen sensor [137]. (Install cable wrap on har-
ness).
39. See Figure 3-55. Install the ignition coil and spark plug
wires and connect [83s]. Tighten ignition coil fasteners to
120-144 in-lbs (13.6-16.3 Nm).

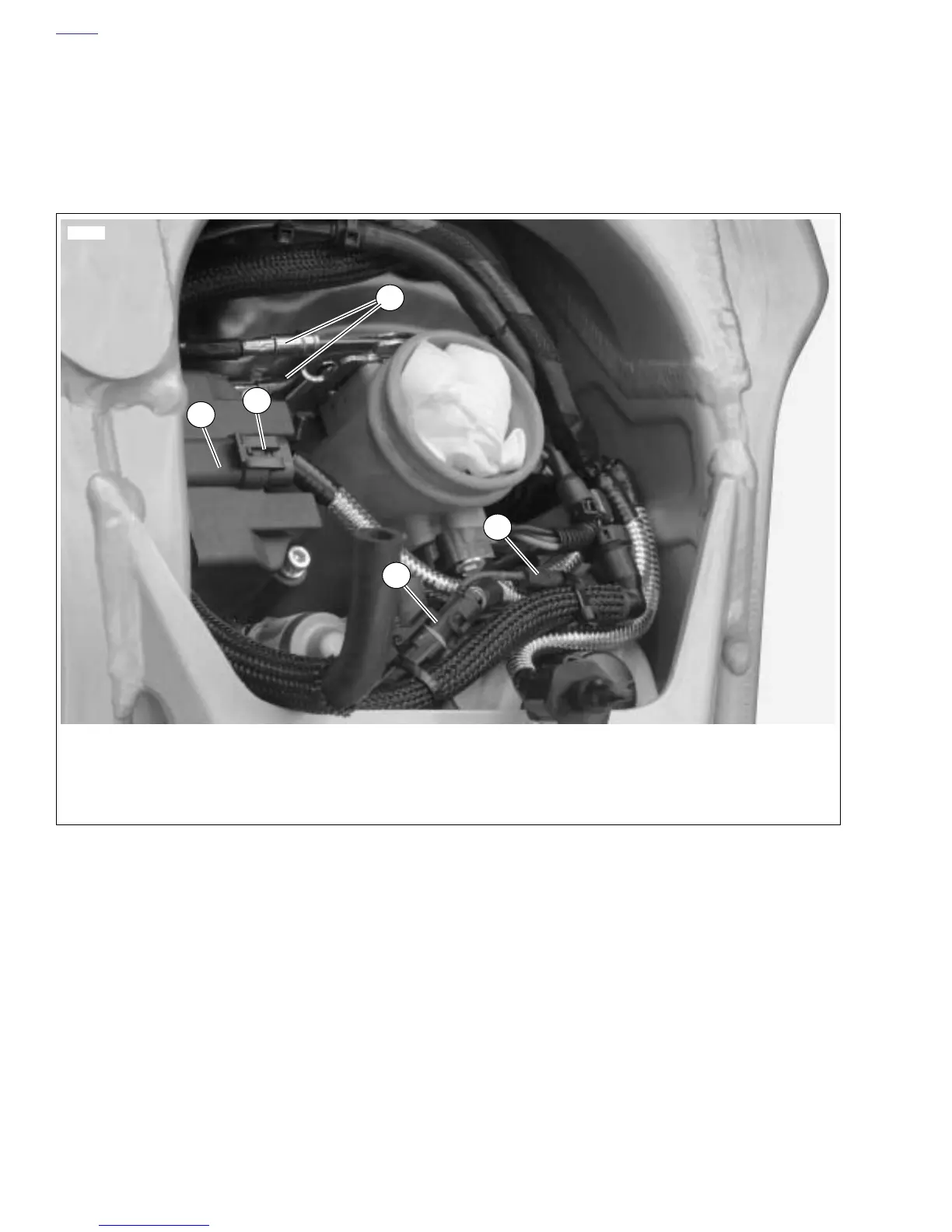

Figure 3-55. Electrical Connections and Throttle Cables (Typical)
1. Ignition coil
2. Coil connection [83]
3. Cylinder head temperature sensor connection [90]
4. Oxygen sensor connection [137]
5. Throttle cables
5
3
2
1
4
10647a
