3-60 2006 Buell Lightning: Engine
HOME
NOTE
When installing a particular rocker box it will be necessary to
turn the engine over until both lifters are on the base circle
(the lowest position) of the cams for that rocker box to be
installed.

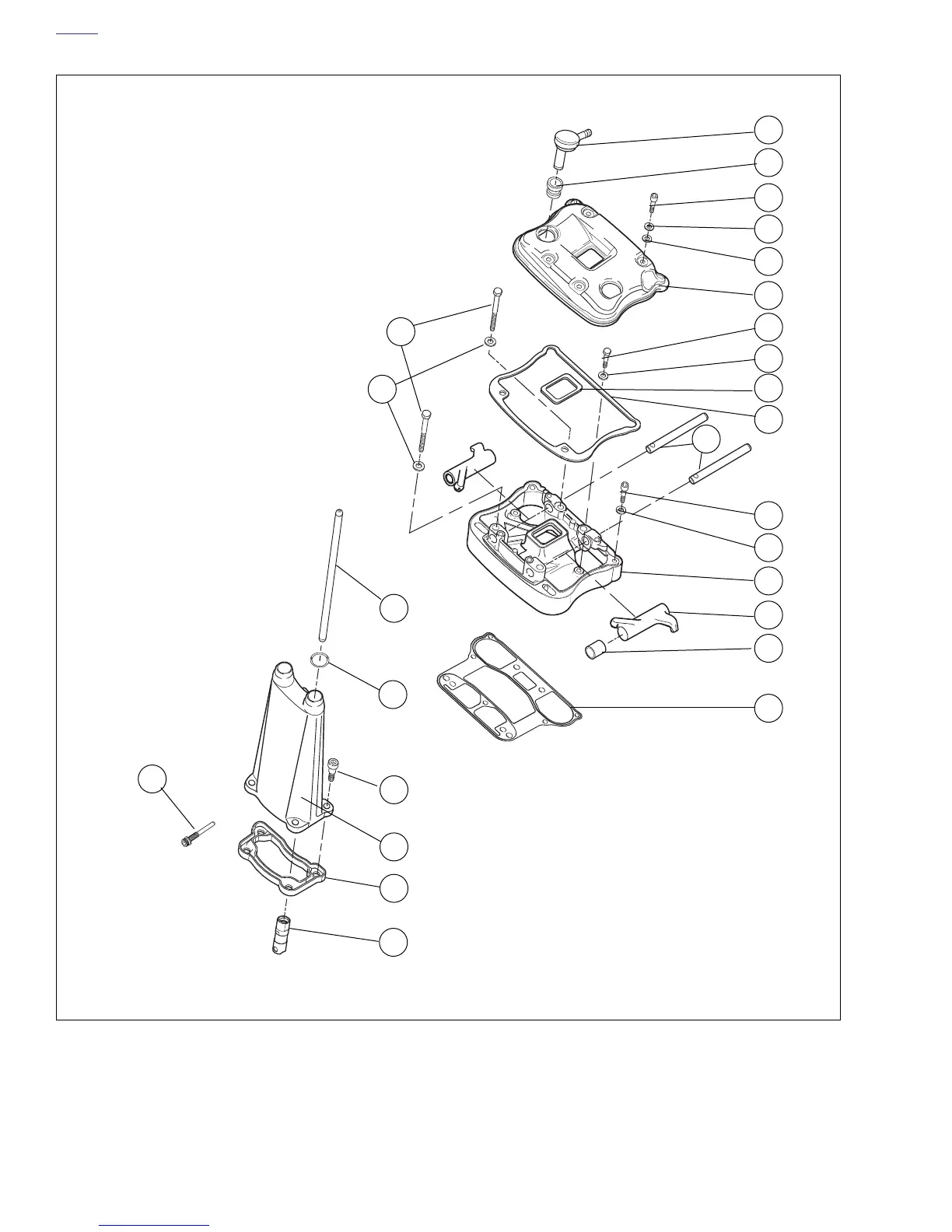

Figure 3-84. Rocker Arm and Push Rod Cover Assemblies
1. Crankcase breather
2. Grommet
3. Screw (4)
4. Washer (4)
5. Gasket (4)
6. Rocker cover (top)
7. Bolt (3)
8. Washer (3)
9. Gasket (inner)
10. Gasket (lower)
11. Rocker arm shafts
12. Bolt (2)
13. Washer (2)
14. Rocker cover (lower)
15. Rocker arm (2)
16. Bushing (rocker arm - 4)
17. Gasket (lower rocker cover)
18. Hydraulic lifter
19. Screw, tappet anti-rotation (2)
20. Gasket (push rod cover)
21. Push rod cover
22. Screw (4)
23. O-ring (push rod cover - 2)
24. Push rod
25. Washer (4)
26. Bolt (4)
1
2
4
6
7
8
12
13
14
15
16
17
24
22
21
20
25
9
10
b0960x3x
18
19
26
23
3
5
11
