3-96 2006 Buell Lightning: Engine
HOME
PINION SHAFT BEARING
General
See Figure 3-137. The right side pinion shaft bearing consists
of an inner and outer race with rollers.
The inner race (11) is pressed onto the pinion shaft. The
outer race is a pressed into the right crankcase half (14).
NOTE
If either inner or outer race show wear, measure both races to
confirm correct bearing fit.
NOTE
Pinion shaft bearing selection at the factory, during engine
build, or replacement of crankcase set or flywheel assembly
is based on the largest measured outside diameter (OD) of
the inner race and the smallest measured inside diameter
(ID) of the outer race (crankcase bushing). A running clear-
ance of 0.0002-0.0008 in. (0.0051-0.0203 mm) is established
during crankcase set or flywheel assembly replacement and
engine rebuild.
Table 3-28. Pinion Shaft Inner Race
Paint Dot Specifications
Table 3-27. Pinion Shaft Bearing
Service Wear Limits
in. mm
Inner race OD 1.2492 31.7297
Outer race ID 1.5672 39.8069

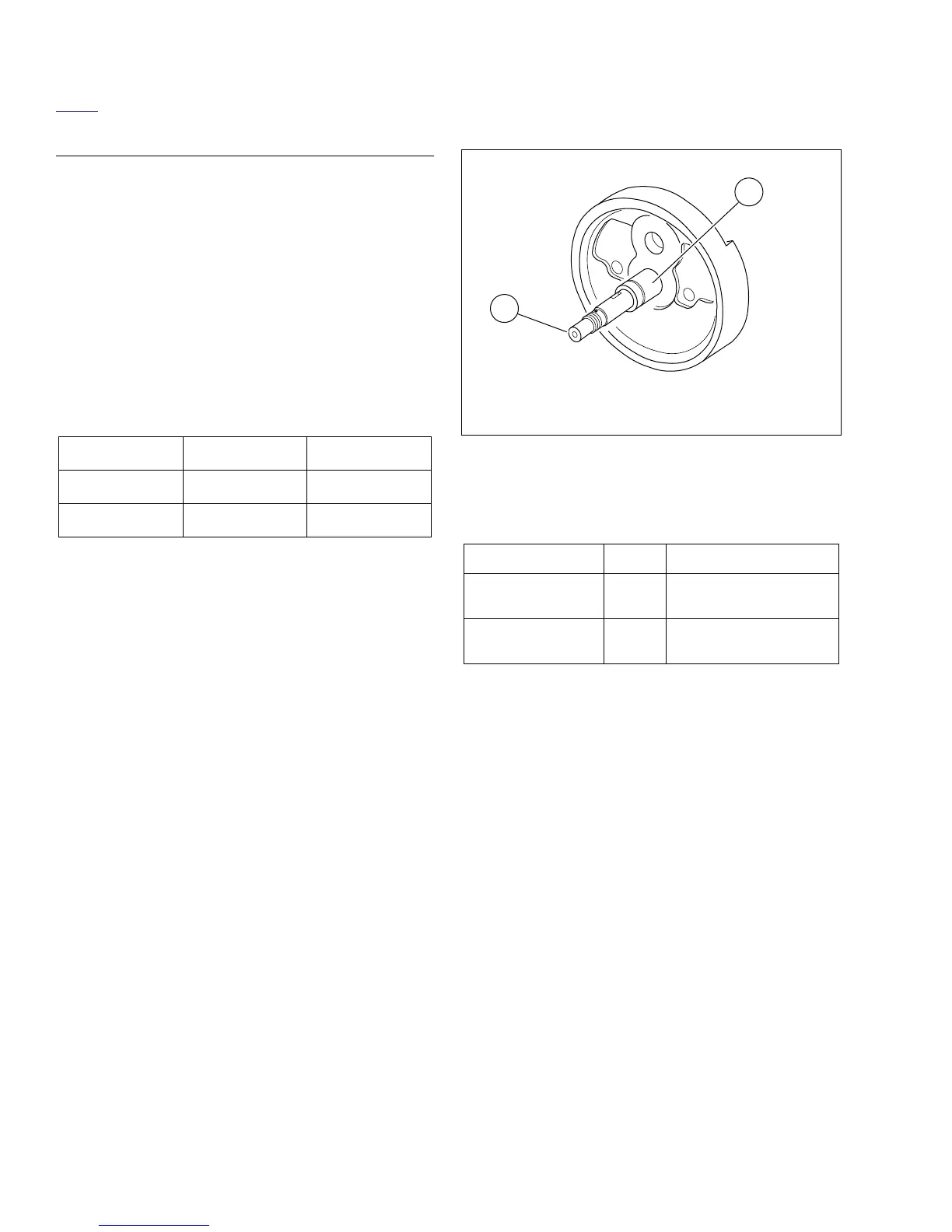

Figure 3-142. Pinion Shaft Inner Race
PAINT DOT COLOR CLASS INNER RACE OD
White A
1.2498-1.2500 in.
(31.7449-31.7500 mm)
Green B
1.2496-1.2498 in.
(31.7398-31.7449 mm)
a0131x3x
1. Paint dot
2. Inner race
1
2
