2006 Buell Lightning: Engine 3-97
HOME
Table 3-29. Pinion Shaft Outer Race
Stamp Specifications
NOTE
The different sizes of crankcase sets and flywheel assemblies
will not have separate part numbers. That is, a replacement
crankcase set may have a class 1, 2 or 3 pinion bearing outer
race. Replacement flywheel assemblies will have either a
class A or B inner race.
Table 3-30. Pinion Bearing
Roller Specifications

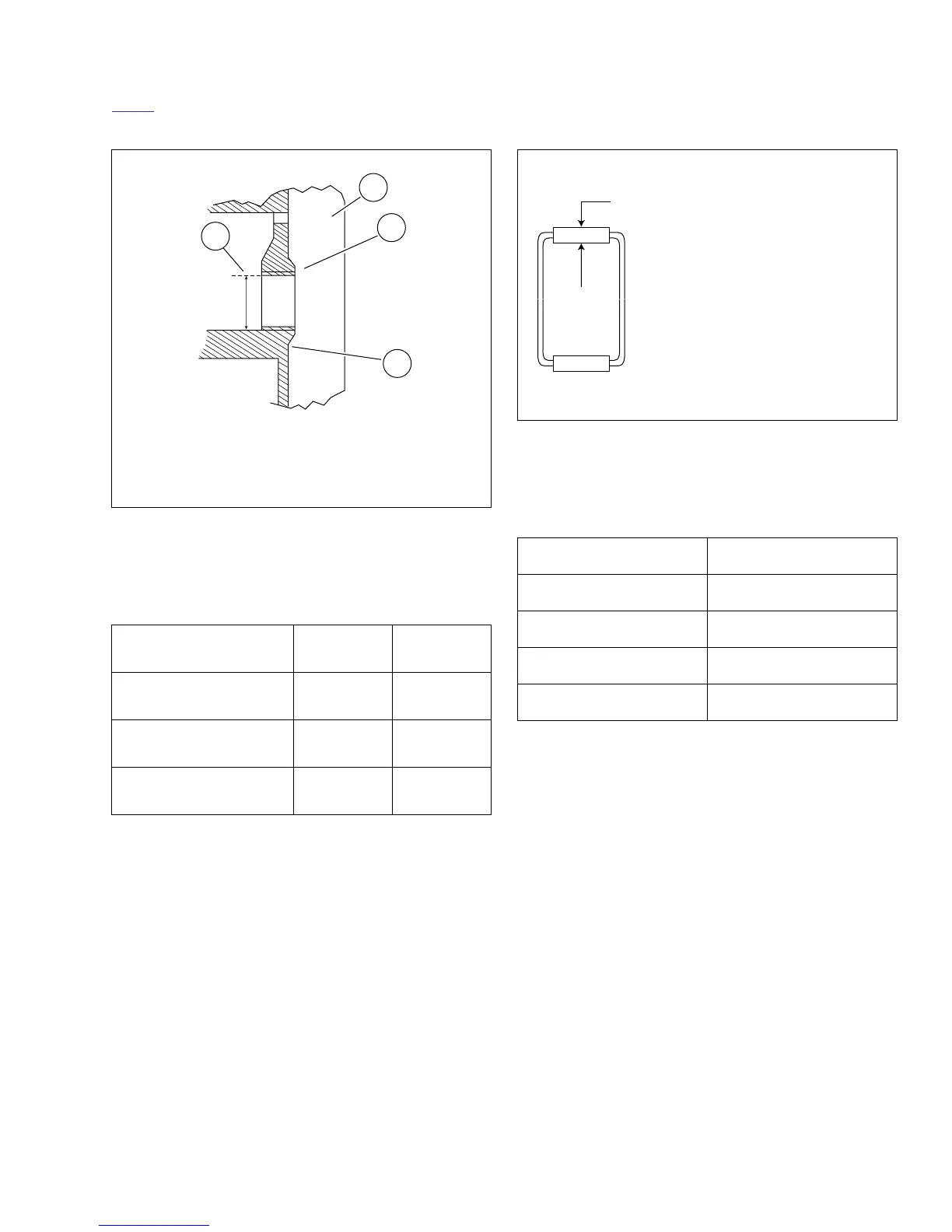

Figure 3-143. Pinion Shaft Outer Race
OUTER RACE ID
CLASS
NO.
STAMPED
NO.
1.5646-1.5648 in.
(39.7408-39.7459 mm)
11
1.5648-1.5650 in.
(39.7459-39.7510 mm)
22
1.5650-1.5652 in.
(39.7510-39.7561 mm)
33
a0134x3x
1. Inside diameter (ID)
2. Outer race
3. Right crankcase half
4. Stamped class no.
1
2
3
4
Figure 3-144. Bearing Roller OD
ROLLER OD COLOR*
Largest Red
Blue
White (grey)
Smallest Green
Roller OD cannot be measured to
required accuracy with micrometer.
Refer to Table 3-31.
a0133x3x
