2006 Buell Lightning: Fuel System 4-125
HOME
INSTALLATION
1. See Figure 4-117. Hold baseplate above mounting posi-
tion.
2. Insert IAT sensor into grommet on baseplate from under-
side. See 4.36 INTAKE AIR TEMPERATURE SENSOR.
NOTES
A small amount of soapy water applied to the inside
diameter of grommet will make breather hose installation
easier.
In next step, be sure breather hoses do not extend past
Intake air temperature sensor tower. If hoses extend past
tower, damage to sensor may occur.
3. Insert longer breather hose into right baseplate grommet
from underside.
4. Attach shorter breather hose onto crankcase breather
located on top of rear cylinder.
5. Carefully lower baseplate into mounting position. Ensure
rubber sealing ring on velocity stack completely engages
baseplate. Baseplate should be sandwiched between
upper and lower rubber sealing rings.

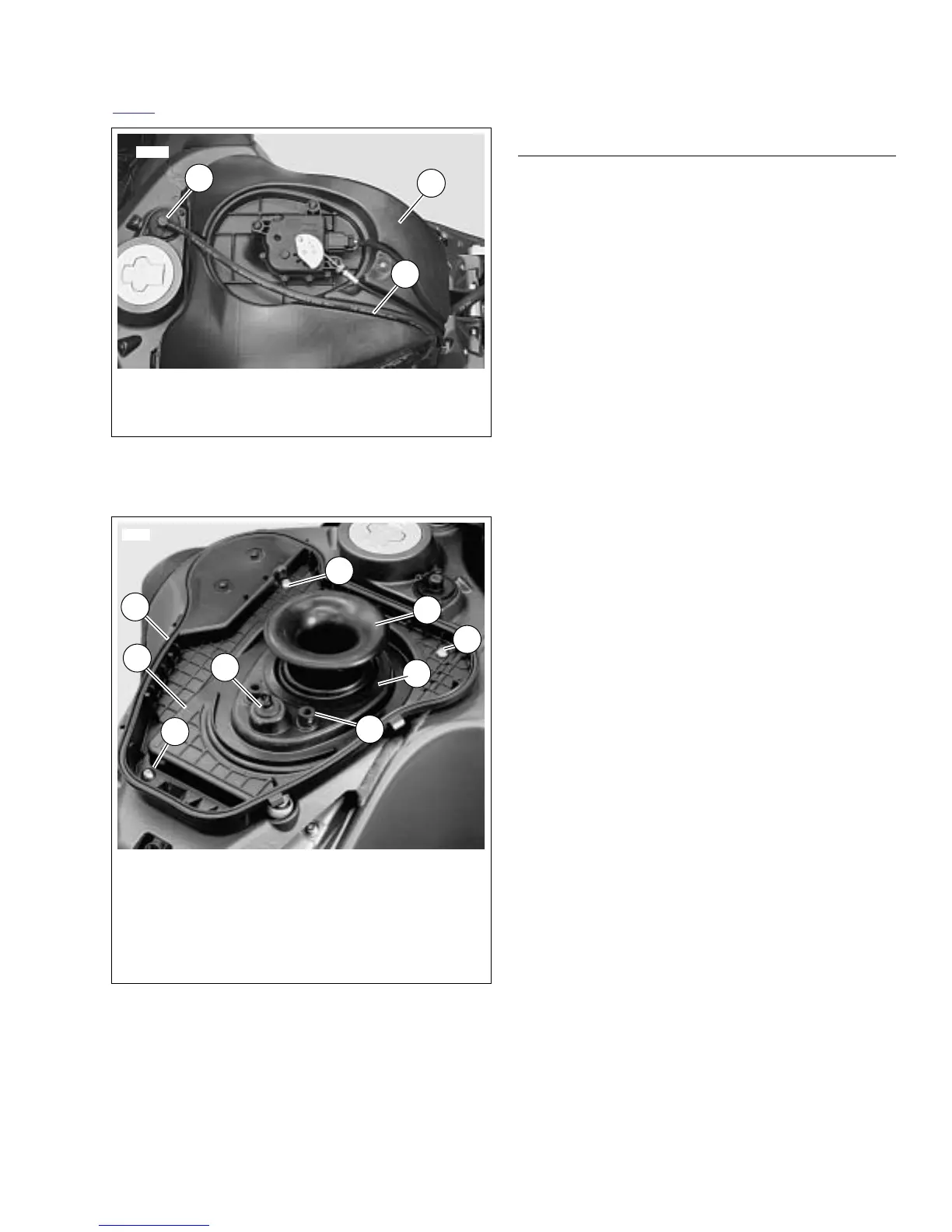

Figure 4-116. Air Cleaner Cover, Fuel Vent Tube and Fuel
Vapor Valve (XB12 solid color models)
Figure 4-117. baseplate (all models)
1. Air cleaner assembly cover
2. Fuel vent tube
3. Fuel cell vent
1
2
3
12049
8373
1. Fasteners
2. Intake air temperature sensor (IAT)
3. Gasket
4. Baseplate
5. Breather hoses
6. Velocity stack
7. Velocity stack sealing ring
7
1
1
1
6
2
5
4
3
