6. See Figure 4-119. Install baseplate (7) to frame with four
fasteners and washers (5). Tighten fasteners to 84-120
in-lbs (9.5-13.6 Nm).
7. Position air cleaner filter on baseplate.
8. Install air cleaner cover to baseplate and latch six latches
to secure.
9. Route vent hose through groove on air cleaner cover to
vent valve.
NOTE
For XB12 models see 7.6 INTERACTIVE EXHAUST SYS-
TEM (XB12 MODELS).
10. Install intake cover assembly. See 2.37 INTAKE COVER
ASSEMBLY.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
11. Install seat. See 2.43 SEAT.

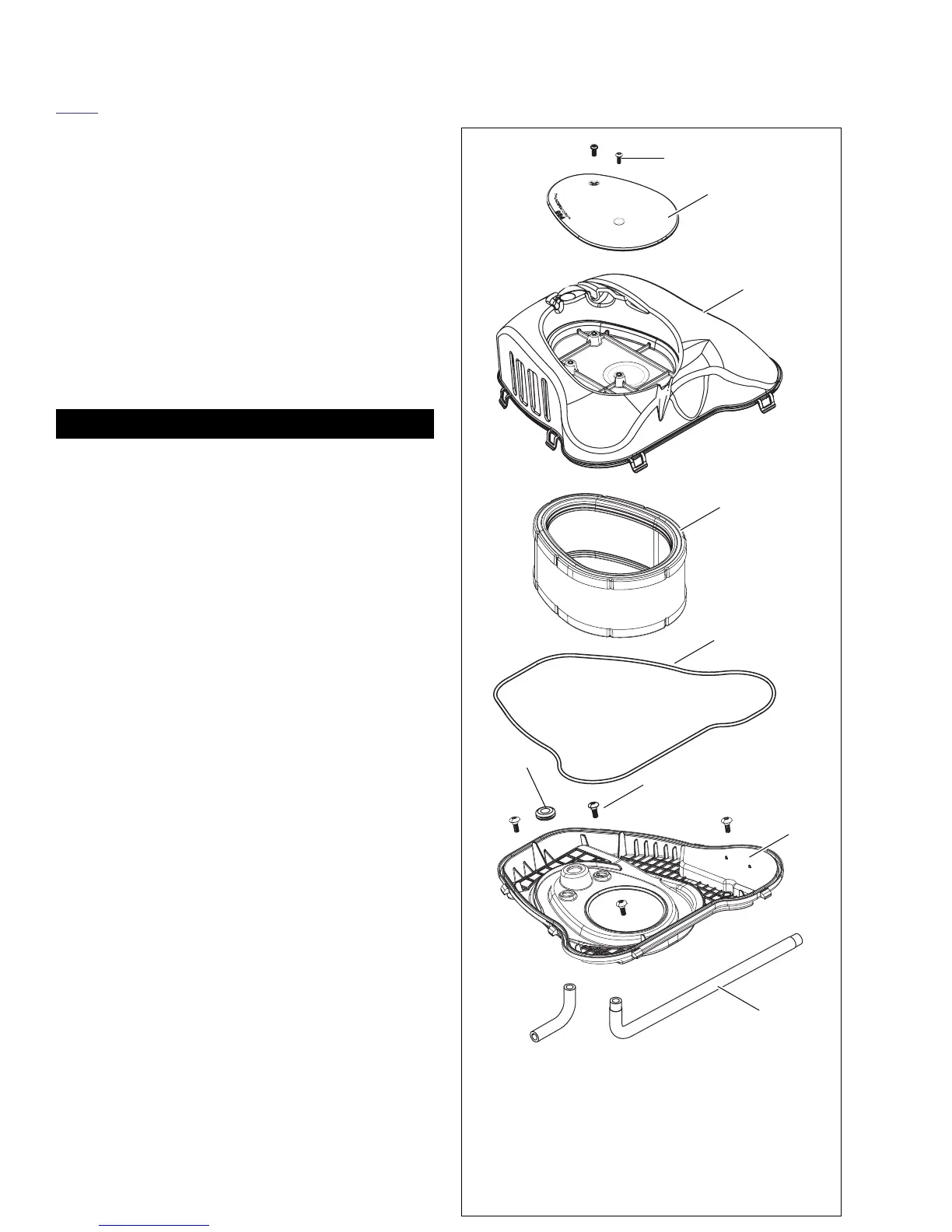

Figure 4-118. Air Cleaner Assembly (XB9SX)
1. Cover screw (XB9SX) (2)
2. “Translucid” air cleaner cover (XB9SX)
3. Cover, air cleaner
4. Filter element
5. Air cleaner cover seal
6. Shoulder screw (4)
7. baseplate assembly
8. Breather hoses, front and rear
9. Grommet
3
4
5
7
8
1
2
6
9
