2006 Buell Lightning: Fuel System 4-127
HOME

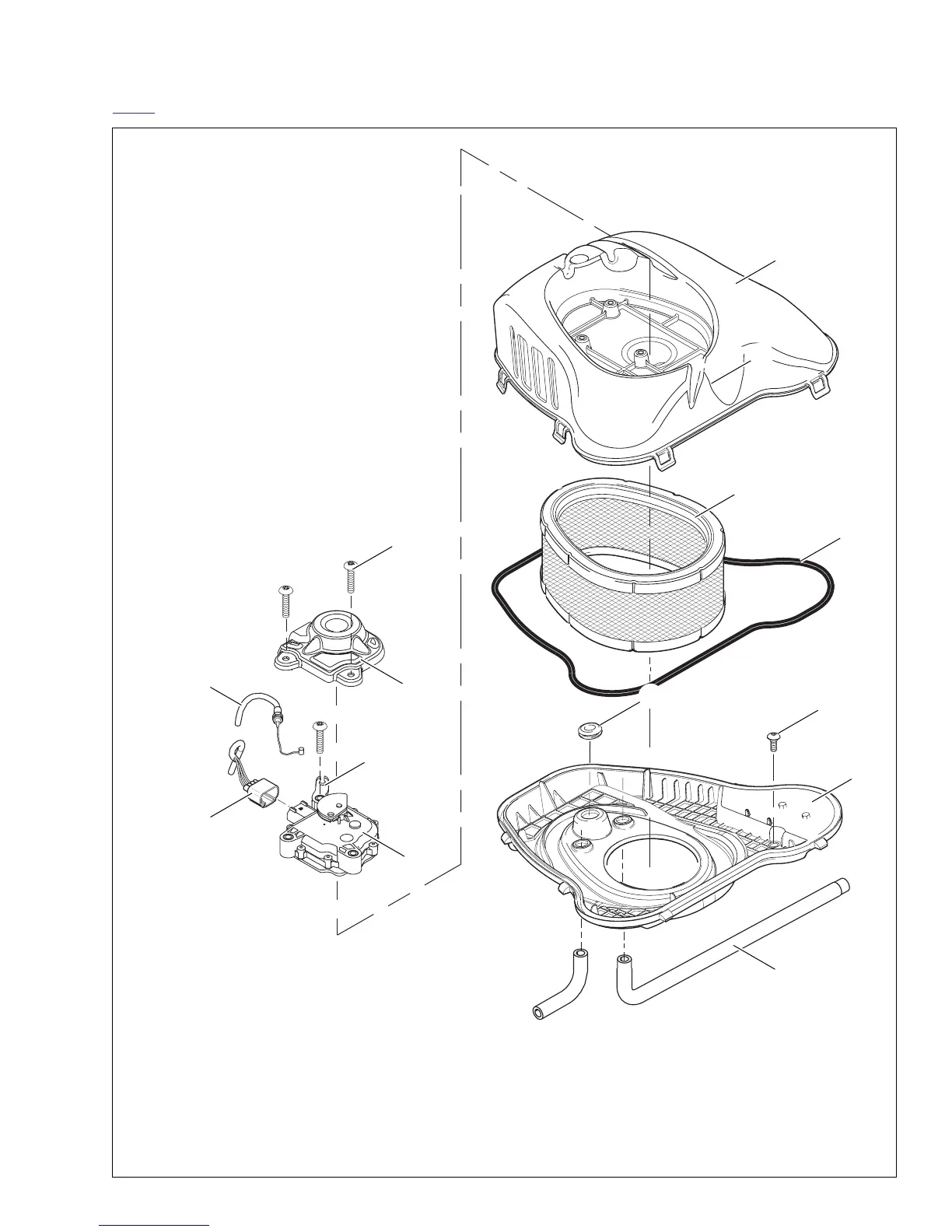

Figure 4-119. Air Cleaner Assembly (XB12 Models) with Interactive Exhaust Components
1. Screw (XB12 actuator cover,
for “Translucid” models) (2)
2. Flat washer (not shown)
3. Actuator, interactive exhaust
4. Harness, interactive exhaust
5. Cable bracket
6. Interactive exhaust cable
7. Cover, air cleaner
8. Filter element
9. Air cleaner cover seal
10. Shoulder screw (4)
11. baseplate assembly
12. Breather hoses, front and rear
13. Grommet
14. Activator cover (XB12 “Translucid” cover)
3
4
10
9
11
6
8
1
7
12
13
5
14
9
