2006 Buell Lightning: Drive/Transmission 6-25
HOME
TRANSMISSION 6.7
GENERAL
See Figure 6-45. The transmission is a five-speed constant-
mesh type housed in an extension of the crankcase. The
transmission permits the rider to vary the ratio of engine
speed-to-rear driving wheel speed in order to meet the vary-
ing conditions of operation.
The transmission is foot-operated by the gear shifter lever,
which transmits the force through a gear shifter shaft. The
shifter shaft actuates a pawl and a shifter fork drum. The
shifter fork drum moves shifter forks, which slide a series of
shifter dogs on the mainshaft and countershaft, into and out
of mesh with the other gears.

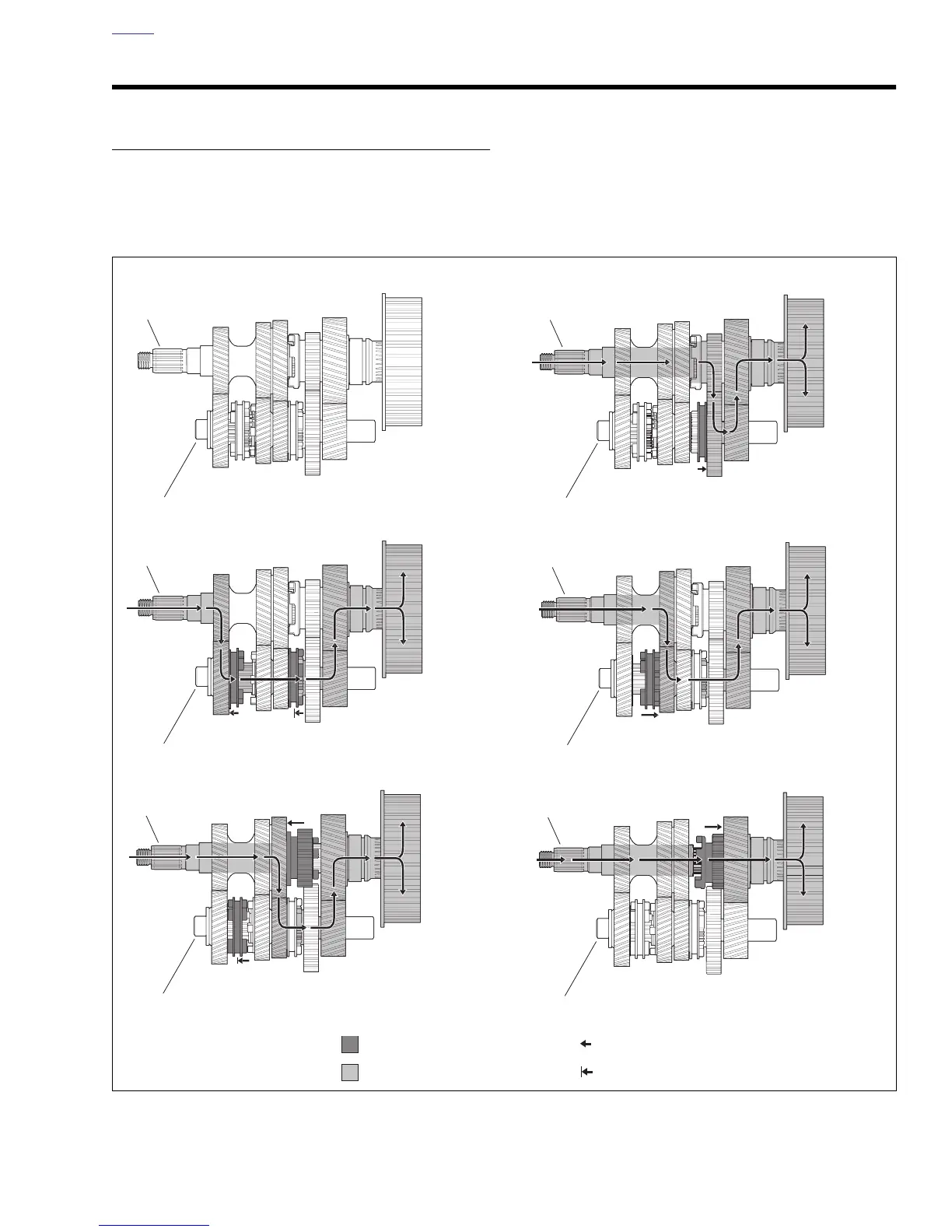

Figure 6-45. Transmission Power Flow
2 3 4 1 5
Neutral
1st Gear
2nd Gear
3rd Gear
4th Gear
5th Gear
Mainshaft
Countershaft
- SLIDING MEMBER
- POWER FLOW
- IN
- OUT
2
3 4 1 5
2
3 4 1 5
2
3 4 1 5
2
3 4 1 5
2
3 4 1 5
Mainshaft
Countershaft
Mainshaft
Countershaft
Mainshaft
Countershaft
Mainshaft
Countershaft
Mainshaft
Countershaft
x0259c6x
