Buell 2006LIGHTNING MODELS User Manual

6-30 2006 Buell Lightning: Drive/Transmission
HOME

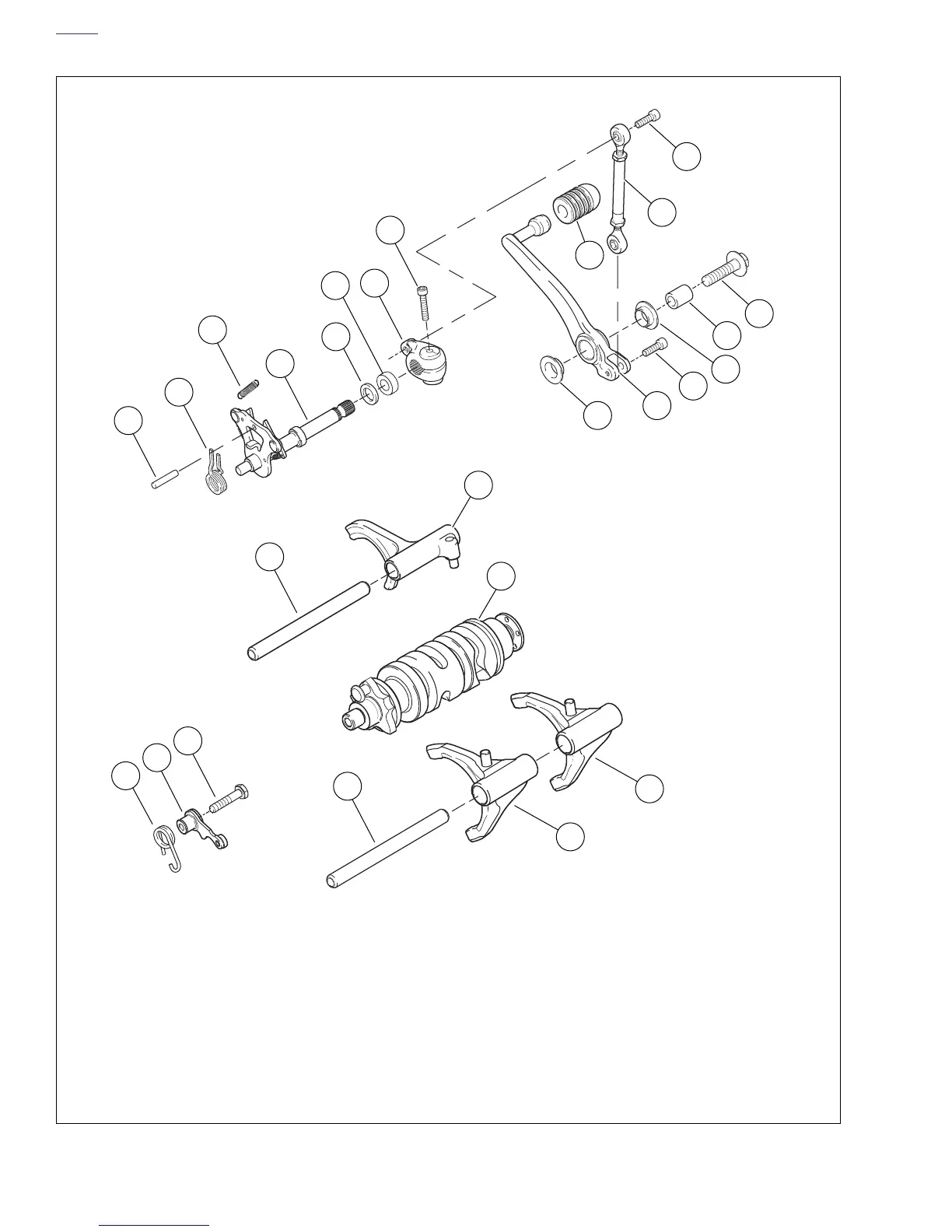

Figure 6-58. Shifter Mechanism
1. Spring, detent
2. Detent spring sleeve assembly
3. Screw, detent assembly
4. Shaft, shifter forks (2)
5. Fork assembly, shifter (2nd-3rd)
6. Fork assembly, shifter (1st)
7. Shifter cam assembly
8. Fork assembly, shifter (4th-5th)
9. Pin, shifter stop
10. Spring, shifter return
11. Spring, extension
12. Shifter lever assembly
13. Oil seal
14. Rubber washer
15. Lever, engine
16. Bolt, engine lever
17. Bearing, shift lever assembly (2)
18. Shift lever
19. Bolt, linkage assembly
20. Sleeve, shift/brake lever
21. Bolt, shift lever
22. Pad, rubber, shift lever
23. Linkage assembly, shifter
24. Bolt, linkage assembly
17
3
2
1
4
4
12
11
10
9
16
15
21
24
18
19
20
23
22
17
b1183b6x
5
6
13
7
8
14
