2006 Buell Lightning: Drive/Transmission 6-31
HOME
11WARNING1WARNING
Wear safety glasses or goggles when removing or install-
ing retaining rings. Retaining rings can slip from the pli-
ers and could be propelled with enough force to cause
serious eye injury. (00312a)
3. See Figure 6-59. Remove left crankcase half and trans-
mission assembly (4) from engine stand.
a. Place crankcase half (3) and transmission assembly
(4) on arbor press (1) and support transmission
assembly on parallel supports (5).
b. Press transmission assembly using TRANSMIS-
SION REMOVER (2) (Part No. B-43895-1) to
remove transmission assembly from crankcase half.
c. Remove crankcase from press.

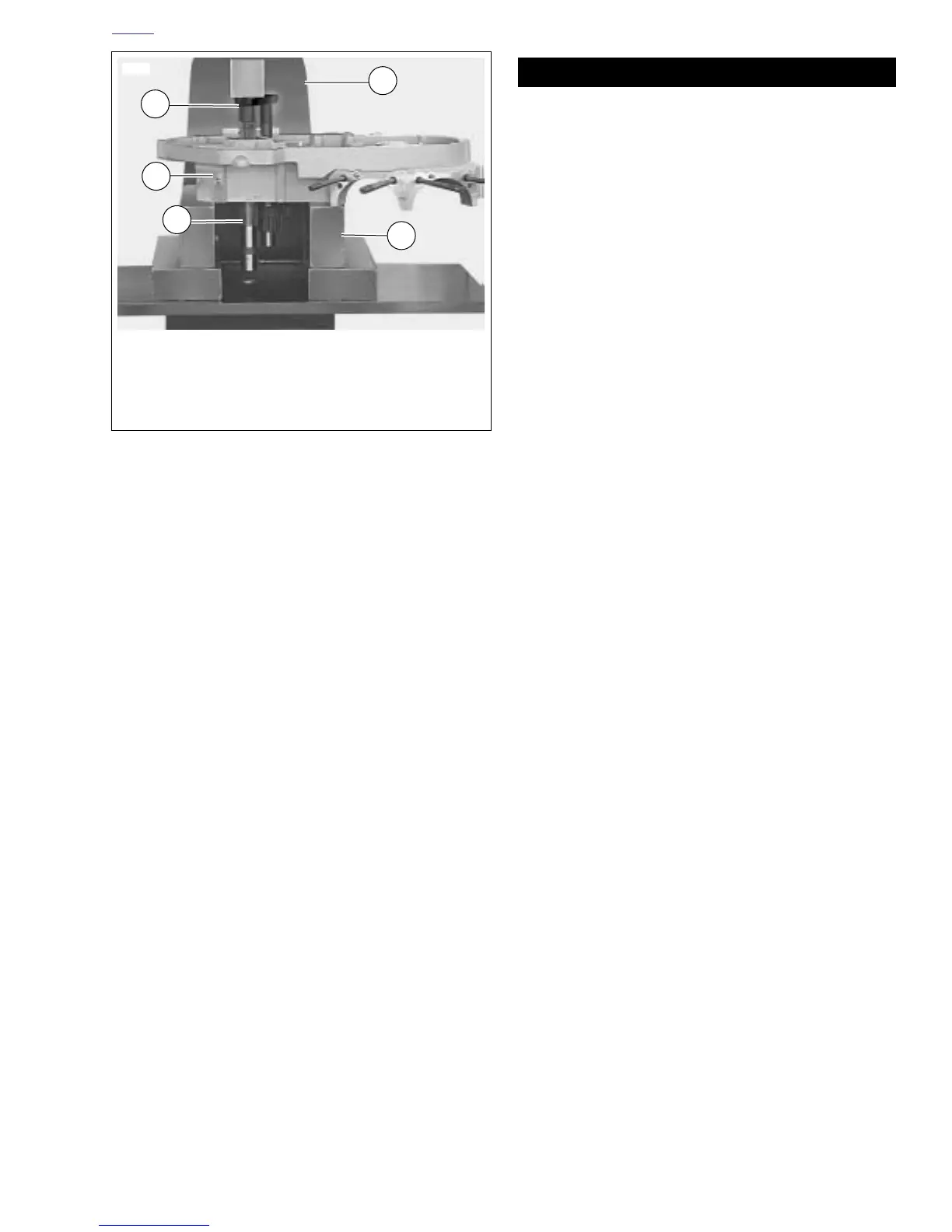

Figure 6-59. Removing Transmission Assembly from Left
Case Half
1. Arbor press
2. Transmission remover (Part No. B-43985-1)
3. Crankcase
4. Transmission assembly
5. Parallel supports
8629
1
5
3
4
2
To Next Page
