6-32 2006 Buell Lightning: Drive/Transmission
HOME

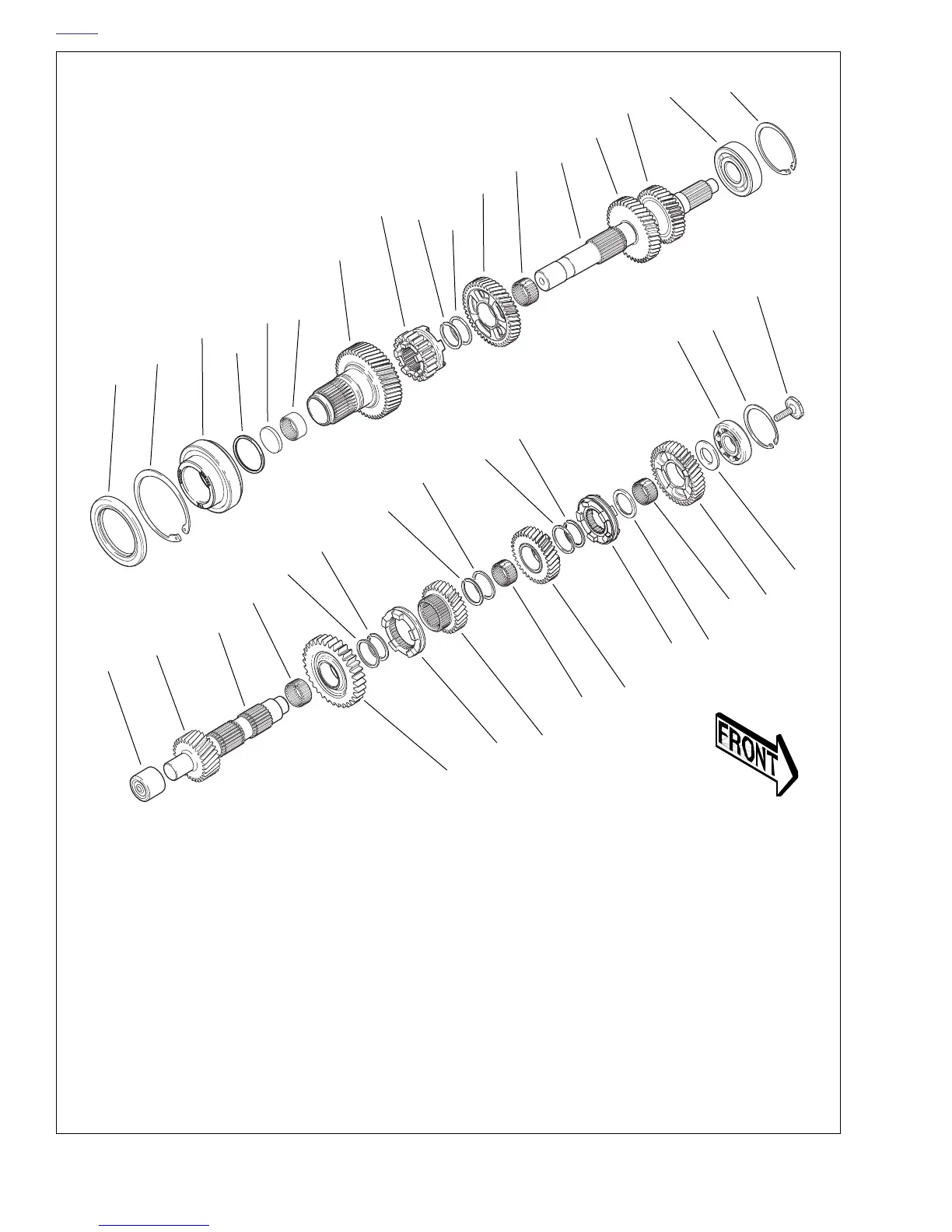

Figure 6-60. Transmission Assembly
1. Oil seal
2. Retaining ring
3. Ball bearing
4. O-ring
5. Oil seal
6. Needle bearing (2)
7. Mainshaft 5th gear
8. Mainshaft 1st gear
9. Retaining ring (4)
10. Thrust washer (4)
11. Mainshaft 4th gear
12. Split bearing (4)
13. Mainshaft
14. Mainshaft 3rd gear
*
15. Mainshaft 2nd gear*
16. Mainshaft bearing
17. Retaining ring
18. Closed end bearing
19. Countershaft 5th gear
**
20. Countershaft
21. Countershaft 1st gear
22. Dog ring
23. Countershaft 4th gear
24. Countershaft 3rd gear
25. Dog ring
26. Thrust washer
27. Countershaft 2nd gear
28. Spacer
29. Countershaft bearing
30. Retaining ring
31. Countershaft retaining screw
x0572a6x
14
13
3
2
1
20
21
22
23
19
18
17
16
12
9
12
8
6
5
4
7
11
10
12
12
15
30
31
10
9
9
10
24
10
9
25
26
27
28
29
* Mainshaft 2nd and 3rd gears are integral to the shaft.
** Countershaft 5th
g
ear is inte
g
ral to the shaft.
