7-6 2006 Buell Lightning: Electrical
HOME
REMOVAL
1. Remove seat. See 2.43 SEAT.
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable.
3. Remove windscreen.
4. See Figure 7-3. Disconnect:
●
Turn signal flasher [30]
●
Turn signals [31]
●
Left [24] and right [22] handlebar wiring harnesses
●
Instrument cluster [39]
●
Horn [122]
5. Remove horn (12) from horn mount (10).
6. Cut cable strap (7) that loosely holds main wiring har-
ness (8) to the ignition switch (6) and disconnect ignition
switch connector [33].

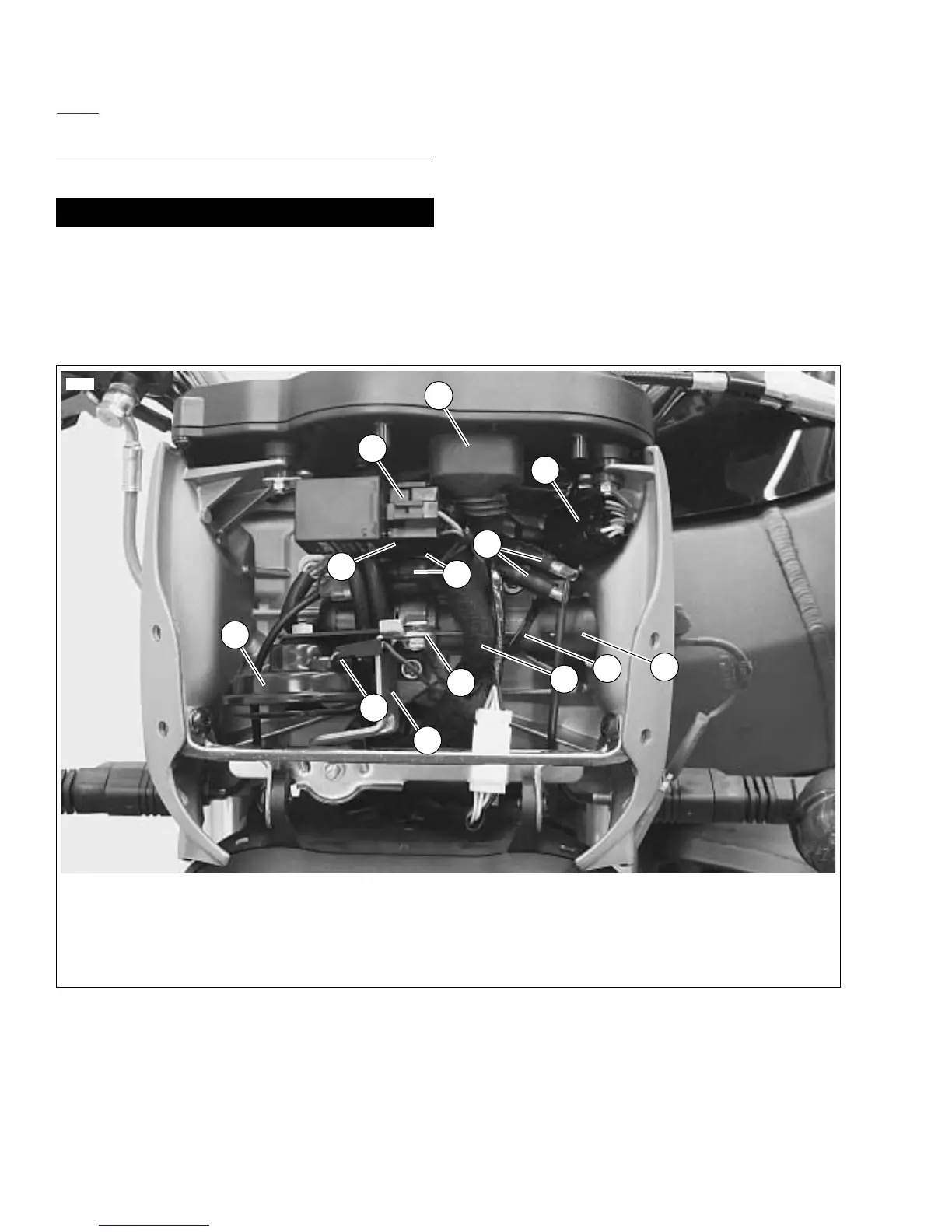

Figure 7-3. Electrical Connectors Behind Windscreen
1. Turn signal flasher connector [30]
2. Instrument cluster connector [39]
3. Left handlebar connector [24]
4. Right handlebar connector [22] (Behind No. #1)
5. Turn signal connectors [31]
6. Ignition switch
7. Cable strap
8. Main harness
9. Horn fastener
10. Horn mount
11. Horn connector [122]
12. Horn
9
4
8
3
2
5
10
11
12
6
7
12155
1
5
To Next Page
