7-8 2006 Buell Lightning: Electrical
HOME
DISASSEMBLY
1. See Figure 7-5. Remove ignition switch housing (4) from
ignition switch (5) by prying tabs on side of housing
2. Remove ignition switch body fasteners (1). Separate igni-
tion switch body (2) from ignition switch (5).
ASSEMBLY
NOTE
See Figure 7-5. In next step, be sure wide slot in ignition
switch housing (4) is installed over wide boss on ignition
switch (5).
1. Push ignition switch housing (4) on to ignition switch (5).
NOTE
In next step, do not force ignition switch (5) into ignition switch
body (2). If ignition switch does not easily slide into ignition
switch body, rotate slot in ignition switch body with screw-
driver until proper installation can be achieved.
2. Mate ignition switch to ignition switch body.
3. Install ignition switch body fasteners (1). Tighten to 12-36
in-lbs (1.4-4.0 Nm).

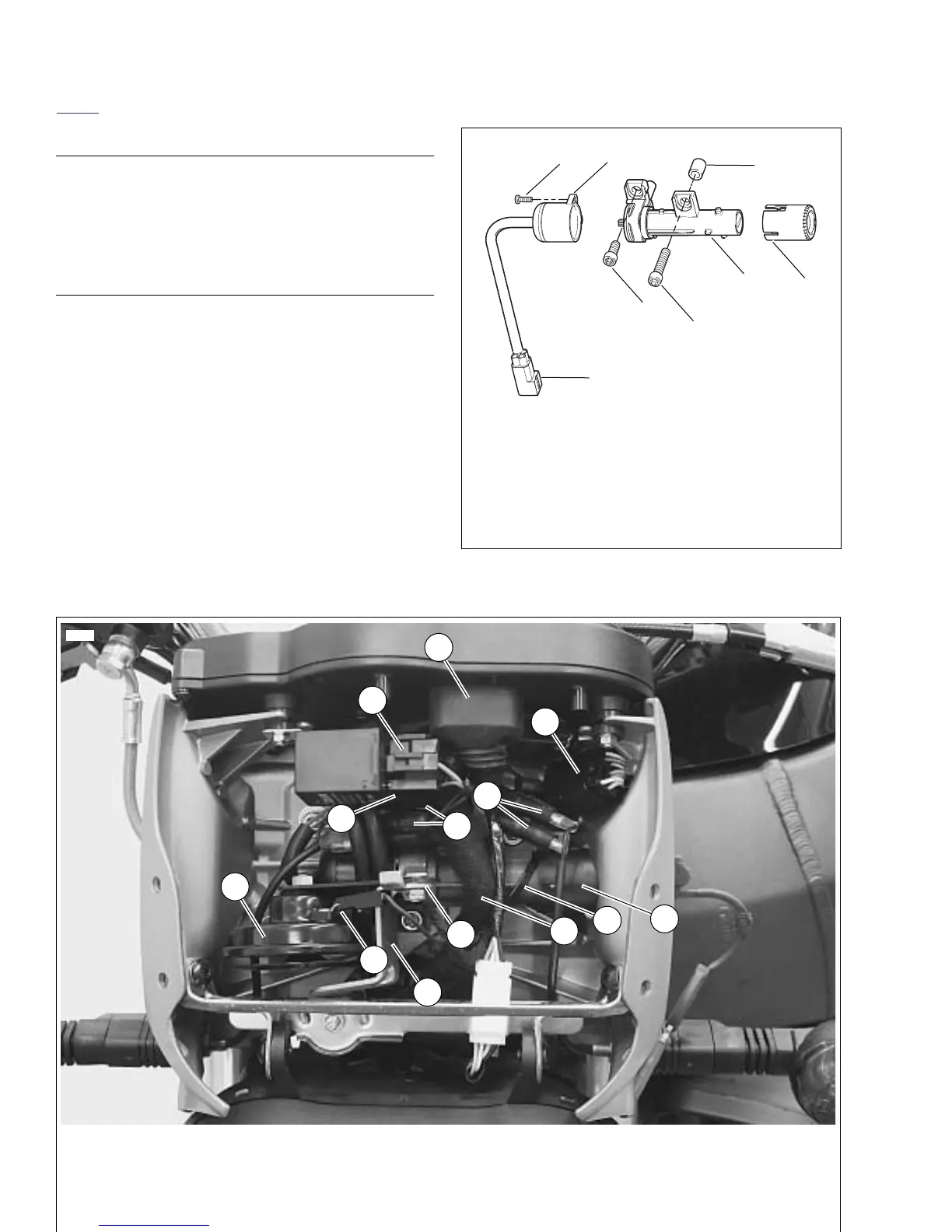

Figure 7-5. Ignition Switch Assembly
b1132x7x
1. Body fastener (2)
2. Body
3. Spacer
4. Housing
5. Ignition switch
6. Socket head fastener
7. Tamper-resistant Torx fasteners (2)
8. Ignition switch connector [33]
3
1
6
2
7
4
5
8
Figure 7-6. Electrical Connectors Behind Windscreen
1. Turn signal flasher connector [30]
2. Instrument cluster connector [39]
3. Left handlebar connector [24]
4. Right handlebar connector [22] (Behind No. #1)
5. Turn signal connectors [31]
6. Ignition switch
7. Cable strap
8. Main harness
9. Horn fastener
10. Horn mount
11. Horn connector [122]
12. Horn
9
4
8
3
2
5
10
11
12
6
7
12155
1
5
