HEADLIGHT 7.12
GENERAL
Dual headlights are equipped with replaceable bulbs.
● High beam headlight is located on the left side of vehicle.
and turns on and off with headlight switch.
● Low beam headlight is located on the right side of vehi-
cle.
● Adjustment of individual headlight projection is accom-
plished by adjusting the entire headlight assembly.
● For information on headlight housing and bracket disas-
sembly/assembly see 2.27 HEADLIGHT ASSEMBLY
AND SUPPORT BRACKET.
NOTE
Low beam does not remain on when high beam is activated.
Only one headlight remains on at any given time unless the
passing lamp switch is depressed while low beam is activated
causing the high beam to temporarily flash.

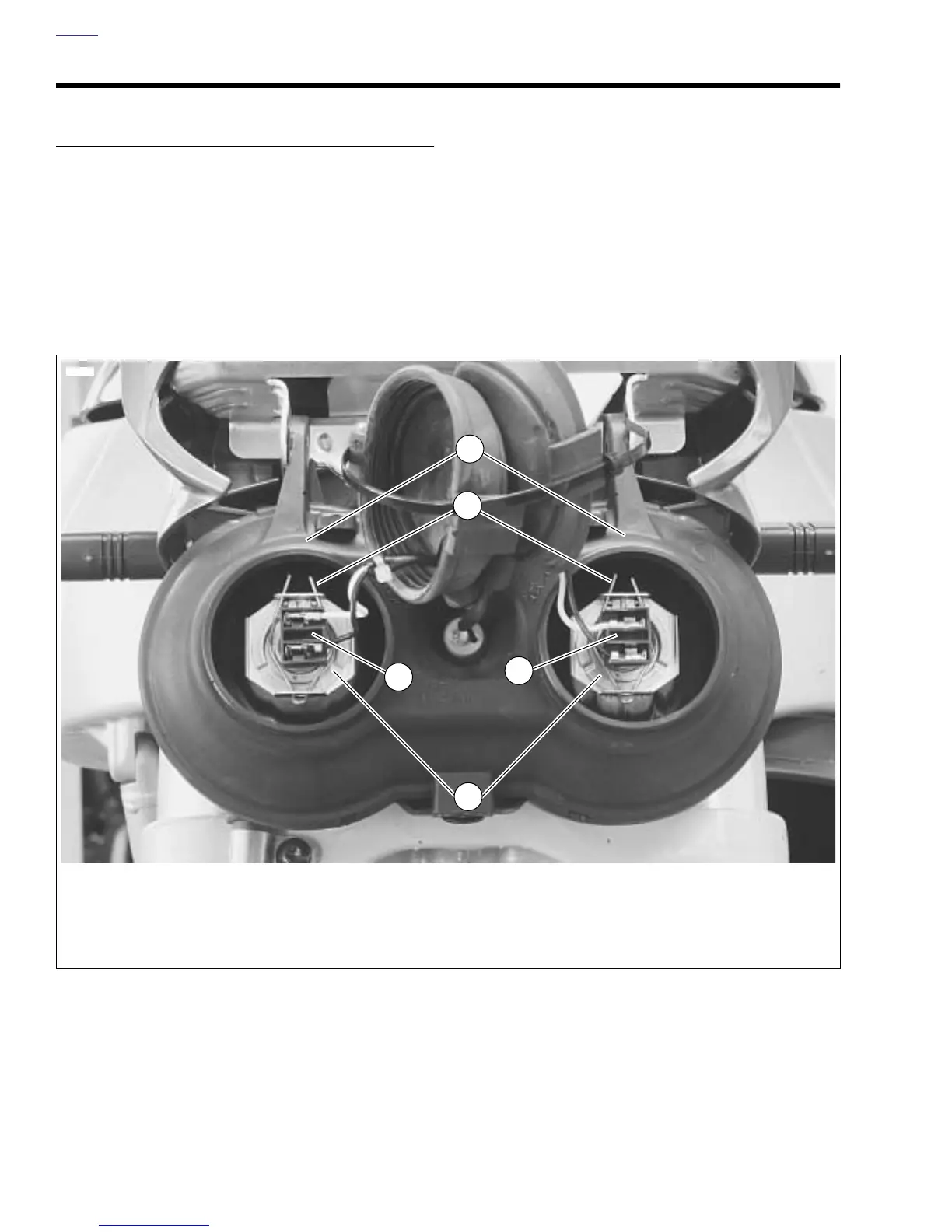

Figure 7-51. Headlight Assembly/Rear View
3
4
1. Headlight
2. Bulb holder (2)
3. High beam connection [38] (left side) with ground
4. Low beam connection [38] (right side) with ground
5. Headlight bulbs
2
5
1
8917
