2006 Buell Lightning: Appendix E E-3
HOME
3. See Figure E-2. Inspect for proper extension freeplay in
solenoid shaft:
a. Open the throttle to the WOT position.
b. Pull solenoid shaft (1) outward to the fully extended
position.
NOTE
You should be able to move the solenoid shaft slightly out-
ward until the shaft is fully extended. This slight travel will be
the freeplay which should be 1/32 in. (0.79 mm) or greater.
c. If you have no travel in the shaft, loosen jam nuts (2)
and adjust cable housing (4) towards the solenoid
bracket (3) until freeplay is achieved.
4. See VERIFY SETTINGS. Once freeplay has been set, it
will be necessary to verify settings and adjustments
again.
If values are not between 10.4-10.9 degrees, see Throttle
Stop Screw in this section.

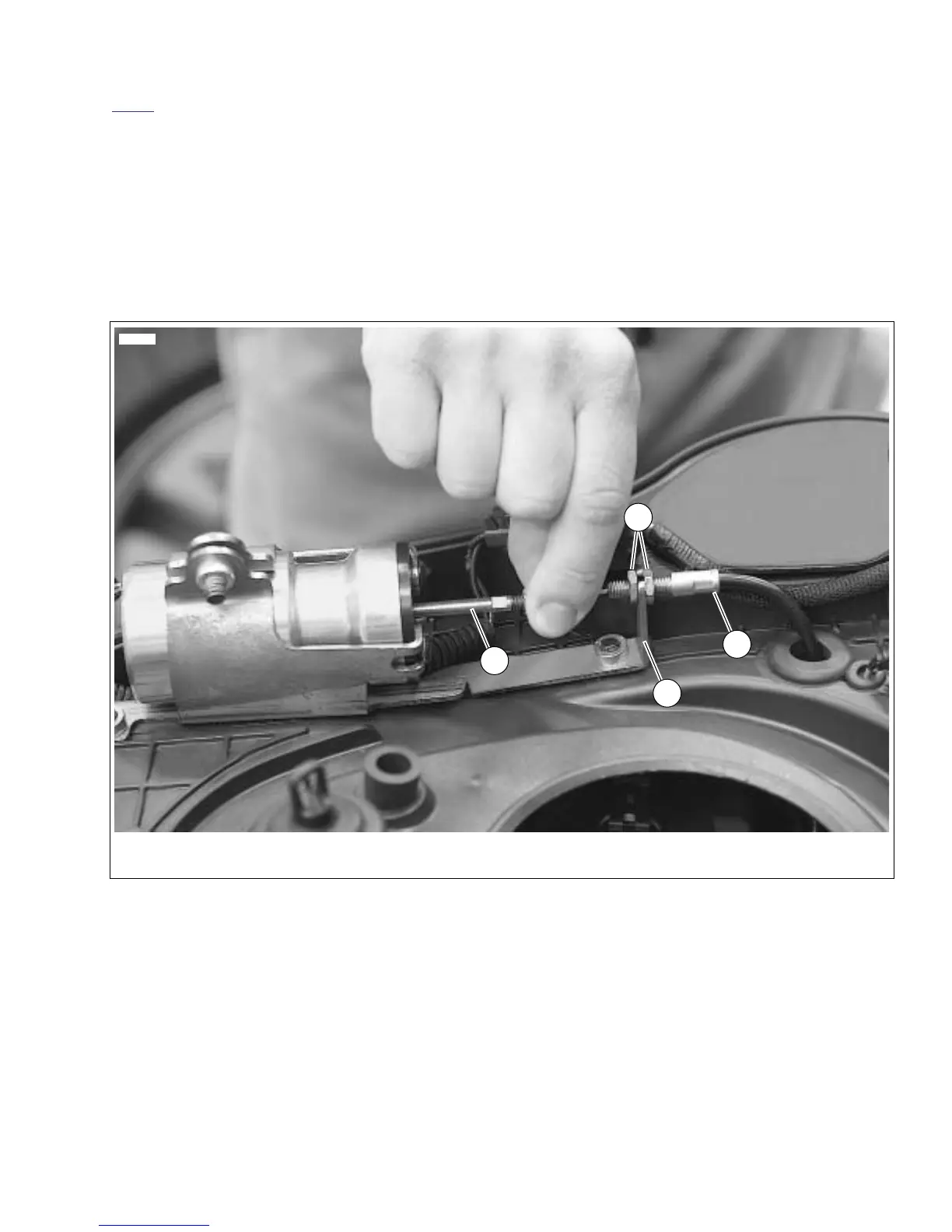

Figure E-2. Checking for Freeplay in the Solenoid Shaft in the Fully Extended Position
1. Solenoid shaft
2. Cable adjusting and jam nuts
3. Solenoid bracket
4. Cable housing
10956f
1
2
3
4
