E-4 2006 Buell Lightning: Appendix E
HOME
Throttle Stop Screw
1. Remove cosmetic intake cover assembly and functional
air cleaner cover. See 2.37 INTAKE COVER ASSEMBLY
and 1.14 AIR CLEANER FILTER.
2. Hold throttle to wide open position and use cable strap to
free hands.
NOTE
It is necessary to pull velocity stack out of the way to access
set screw.
3. Activate Active Intake System using DIGITAL TECHNI-
CIAN.
4. Adjust stop screw, while reading the TPS on Digital
Technician, until setting is between the range of 10.4 to
10.9.
a. If the reading is below 10.4, adjust screw clockwise.
b. If the reading is above 10.9, adjust screw counter-
clockwise.
5. Reconfirm the TPS setting. Repeat process if needed.
6. Adjust active intake cable assembly. See CABLE
ADJUSTMENT.
7. Verify active intake TPS settings.
8. Install cosmetic intake cover assembly and functional air
cleaner cover. See 2.37 INTAKE COVER ASSEMBLY
and 1.14 AIR CLEANER FILTER.

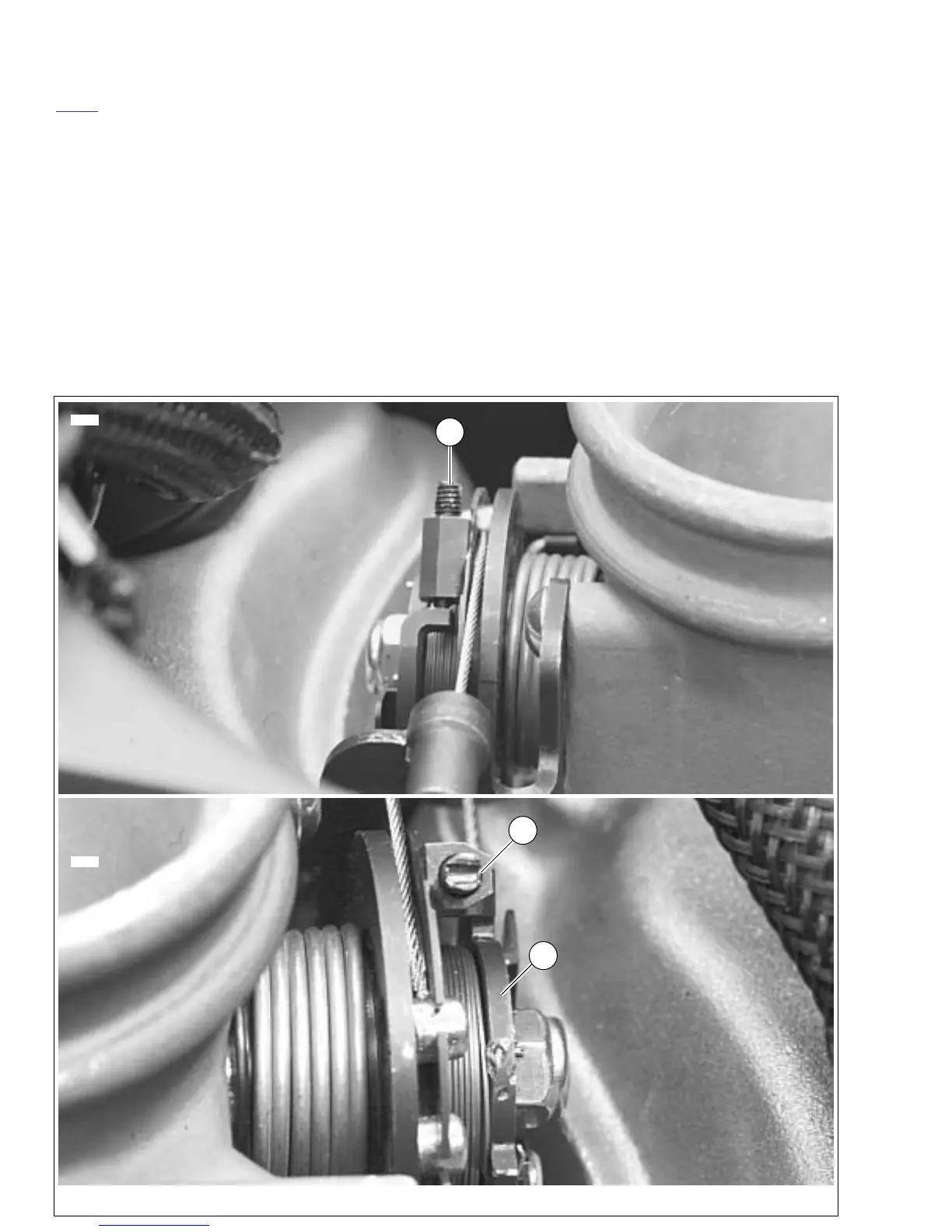

Figure E-3. Active Intake Cable Stop Screw
1. Cable stop screw 2. Active cable wheel
1
1
2
10925
10924
