2006 Buell Lightning: Electrical 7-67
HOME

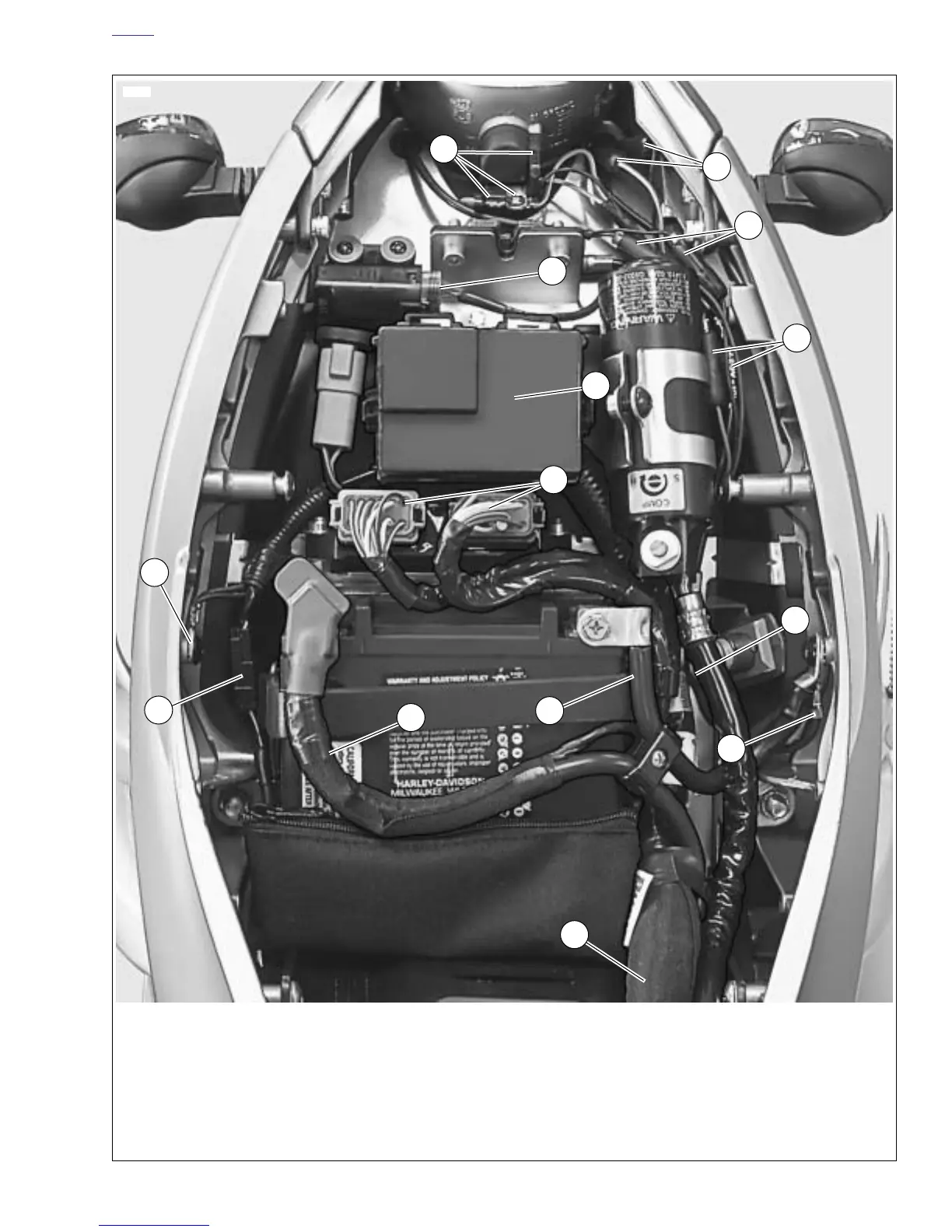

Figure 7-87. Main Harness and Electrical Connectors Under Seat (Typical)
3
4
12
11
9
13
8
7
2
1
1. Main harness
2. Main harness ground (high voltage ground wire)
3. Battery ground cable
4. Battery positive cable
5. Rear brake light switch connector [121]
6. Ground terminals (low voltage ground wires)
7. ECM connectors [10] & [11]
8. Fuse block and relay center
9. BAS (bank angle sensor) connector [134]
10. Right turn signal connector [18]
11. Left turn signal connector [19]
12. License plate lamp connector [45]
13. Tail light connectors [93]
14. Interactive exhaust connector [165B], (1200 models
only)
6
8907
5
10
14
To Next Page
