7-68 2006 Buell Lightning: Electrical
HOME

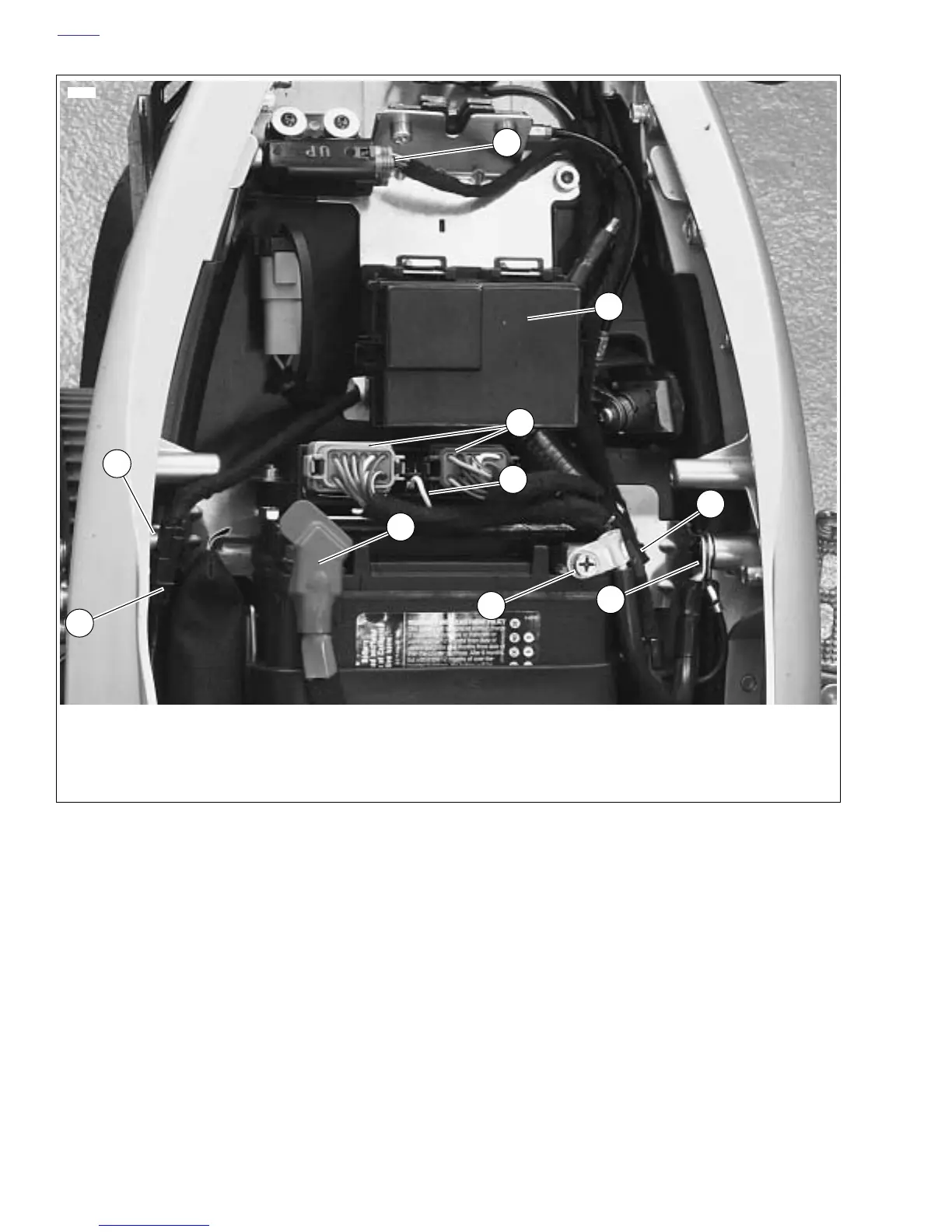

Figure 7-88. Main Harness and Electrical Connectors Under Seat (XB12Ss)
3
4
9
8
7
2
6
1
1. Main harness
2. Main harness ground (high voltage ground wire)
3. Battery ground cable
4. Battery positive cable
5. Rear brake light switch connector [121]
6. Ground terminals (low voltage ground wires)
7. ECM connectors [10] & [11]
8. Fuse block and relay center
9. BAS (bank angle sensor) connector [134]
10. Interactive exhaust connector [165B]
5
10
12153
