7-70 2006 Buell Lightning: Electrical
HOME
INSTALLATION
NOTES
● See Figure 7-93. Always align harness when installing in
the frame and tail section. Align the harness so both
ECM wire bundles, the dyno loop and the main ground
all face upward so when they are installed the harness
will not be twisted.
● For more information on wire harness and hose routing,
see D.1 HOSE AND WIRE ROUTING.
1. Install the new harness from the rear of the vehicle work-
ing towards the front.
2. Feed front and center portion of harness between the
trunk pan and tire through opening at rear of frame/fuel
tank assembly.
3. Place connectors in general location of installation.
4. Secure plastic harness holder to left inside portion of
frame using new plastic tree fasteners.
5. On 1200 models be sure to route the interactive exhaust
cable behind the harness strap with main harness.
NOTE
Fuel line is installed under engine connector portion of wire
harness.
6. See Figure 7-90. Install clamp over portion of harness
that leads to engine connectors. Install clamp as shown
using new plastic tree fastener.
7. See Figure 7-91. Route portion of main wire harness that
contains the positive battery cable (3), sprocket cover
wiring (4) and transmission vent hose (2) through corner
mounting strap and guide (1) at rear of frame. Install new
plastic tree fasteners.

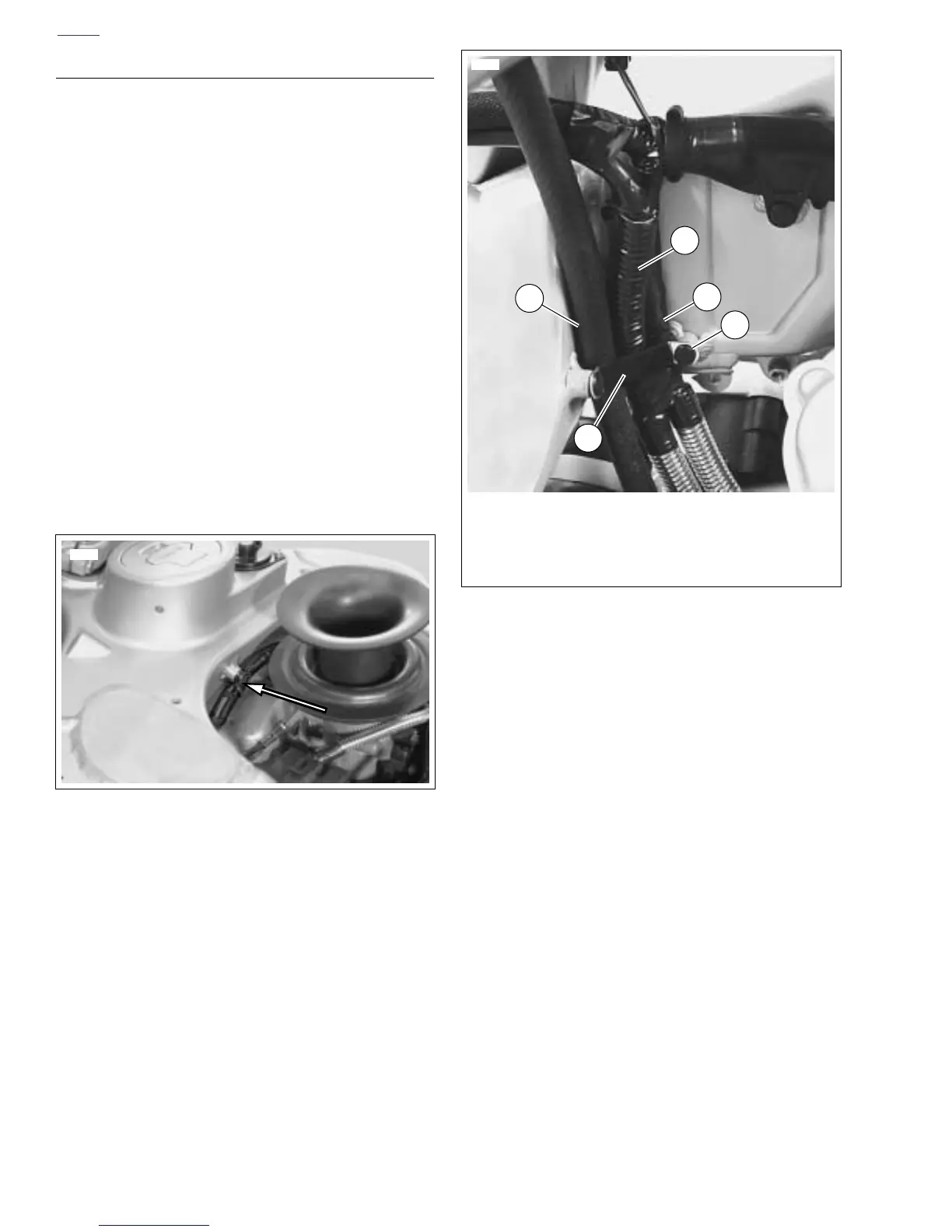

Figure 7-90. Wire Harness Clip
8837a
Figure 7-91. Wire Harness Strap and Guide
8838
4
2
1
3
1. Mounting strap and guide
2. Transmission vent hose
3. Positive battery cable
4. Sprocket cover wiring
5. Tree fastener (2)
5
