85
Type 8692, 8693
english
Start-up, operation
position controller Type 8692
Alarm output for excessively large control deviation of the position controller: OUT DEV.X
Press the arrow keys to mark the
→ OUT DEV.X menu option and confirm with the selection key on the right (SELEC).
Press the arrow keys to input → the limit value for the permitted control deviation in the Lim. DEV.X menu option and accept
with the selection key on the right (OK).
The permitted control deviation Lim. DEV.X XX must not be less than the dead band.
In the
→ OUT BIN type menu option input the required switching status (normally opened / normally closed)*.
Output of the current position with respect to a specified limit position: OUT POS
Press the arrow keys to mark the
→ OUT POS menu option and confirm with the selection key on the right (SELEC).
Press the arrow keys to input the
→ the value of the limit position in the Lim. POS 0% menu option and accept with the
selection key on the right (OK).
In the
→ OUT BIN type menu option input the required switching status (normally opened / normally closed).

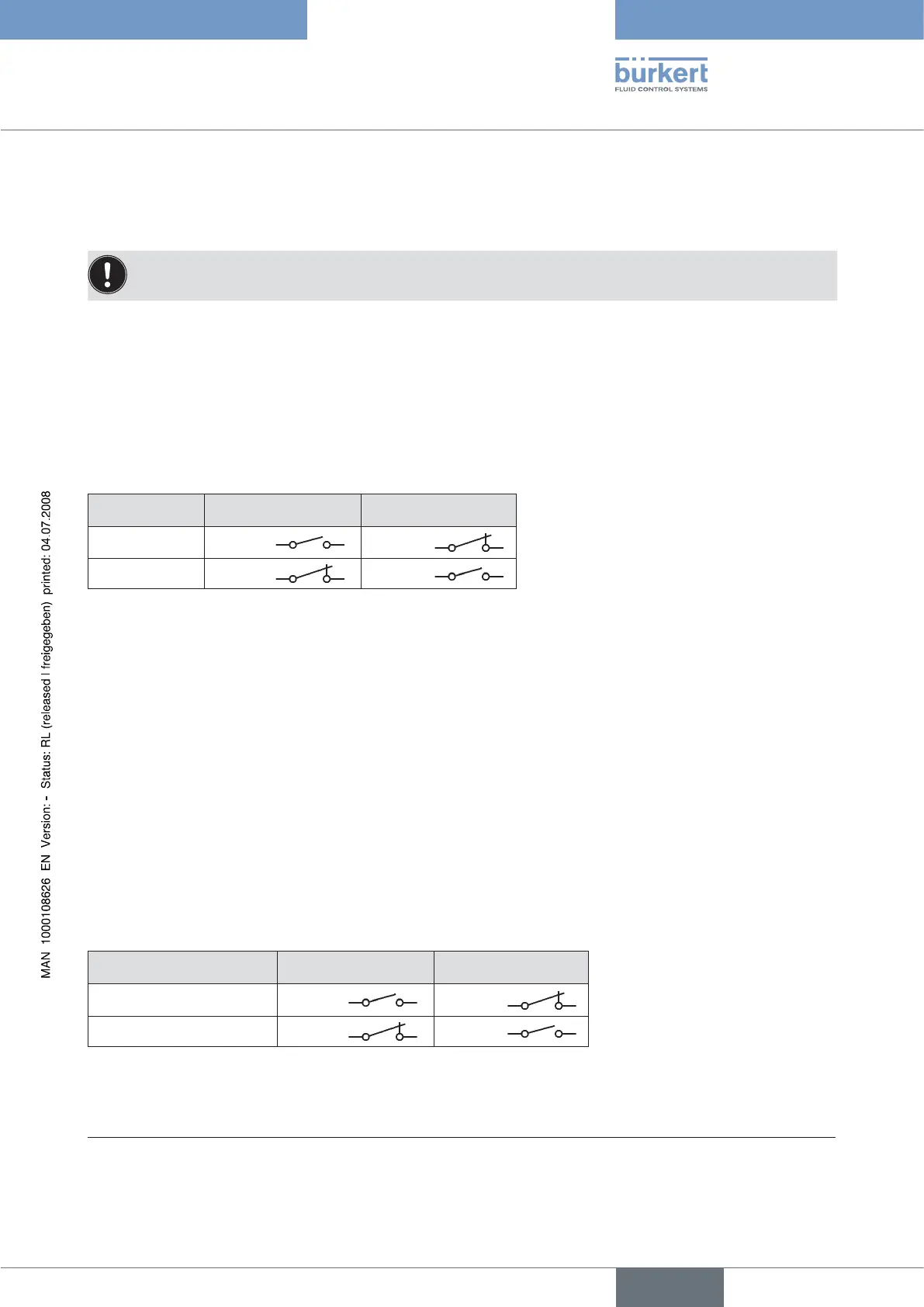

OUT BIN1 normally opened normally closed
POS > LIM
0 V
24 V
POS < LIM
24 V 0 V
Output of message: Actuator in safety position: OUT Safepos
Press the arrow keys to mark the
→ OUT Safepos menu option and confirm with the selection key on the right (SELEC).
In the → OUT BIN type menu option input the required switching status (normally opened / normally closed)*.
Output sensor break: OUT ERR SP/CMD
Using the arrow keys, mark the
→ OUT ERR SP/CMD menu option and confirm with the selection key on the right (SELEC).
In the
→ OUT BIN type menu option input the required switching status (normally opened / normally closed)*.
Output operating state AUTOMATIC / MANUAL: OUT remote
Using the arrow keys, mark the
→ OUT remote menu option and confirm with the selection key on the right (SELEC).
In the
→ OUT BIN type menu option input the required switching status (normally opened / normally closed).
OUT BIN1 normally opened normally closed
AUTOMATIC operating state 0 V
24 V
MANUAL operating state 24 V 0 V
* Normally closed output, in switched state low (≅ 0 V)
Normally opened output, in switched state high (≅ 24 V)
