Burstner I 2012 - Circuit Diagram, Exterior

148 I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Electrical system
8
8.14.2 Circuit diagram, exterior
Fiat

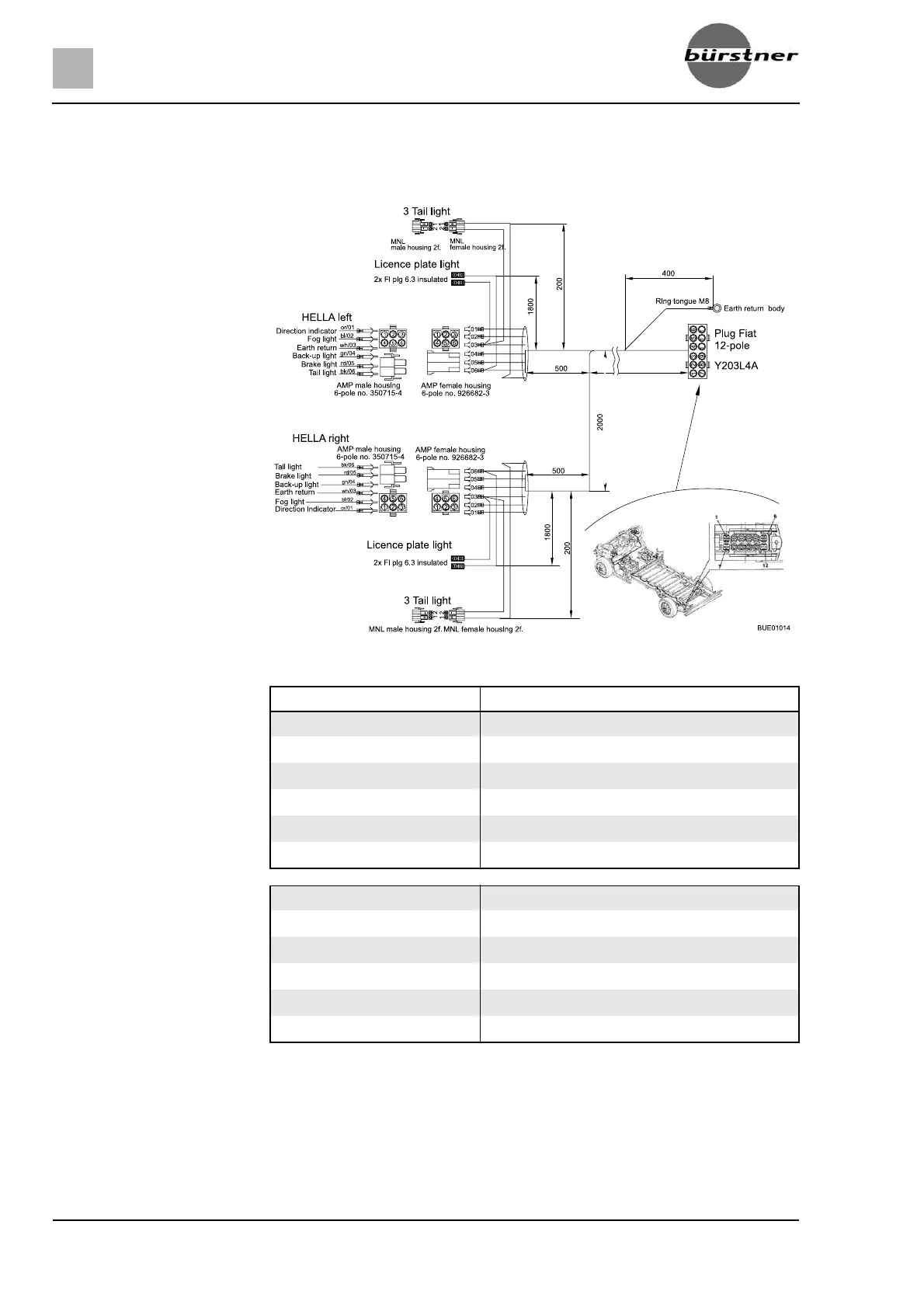

Fig. 155 Circuit diagram, exterior
Bürstner colours Connection
Left side
Grey Left direction indicator
Blue Fog tail light
White Earth return
Green Back-up light
Red Brake light
Black Left rear light
Right side
Grey Right direction indicator
Blue Fog tail light
White Earth return
Green Back-up light
Red Brake light
Black Right rear light
