12.9.5 Halogen spotlight (movable)
Halogen bulb 12 V/10 W
Changing bulbs:
 Turn the halogen spotlight (Fig. 270,1) by 90° and remove from rail.
 Turn the lamp shade (Fig. 270,3) in an anticlockwise direction.
 Withdraw lamp shade complete with halogen bulb (Fig. 270,4) carefully
from the holder (Fig. 270,2).
 Remove halogen bulb.
 Screw lamp shade onto holder.
 Insert new halogen spot light into the lamp shade and press into holder.
 Insert halogen lamp into the rail.
12.9.6 Wardrobe light
Halogen bulb 12 V/8 W
Changing bulbs:
 Press the light covering (Fig. 272,1) lightly together and remove it.
 Remove halogen bulb.
 Put in a new halogen bulb.
 Reassemble the lamp in the reverse order.

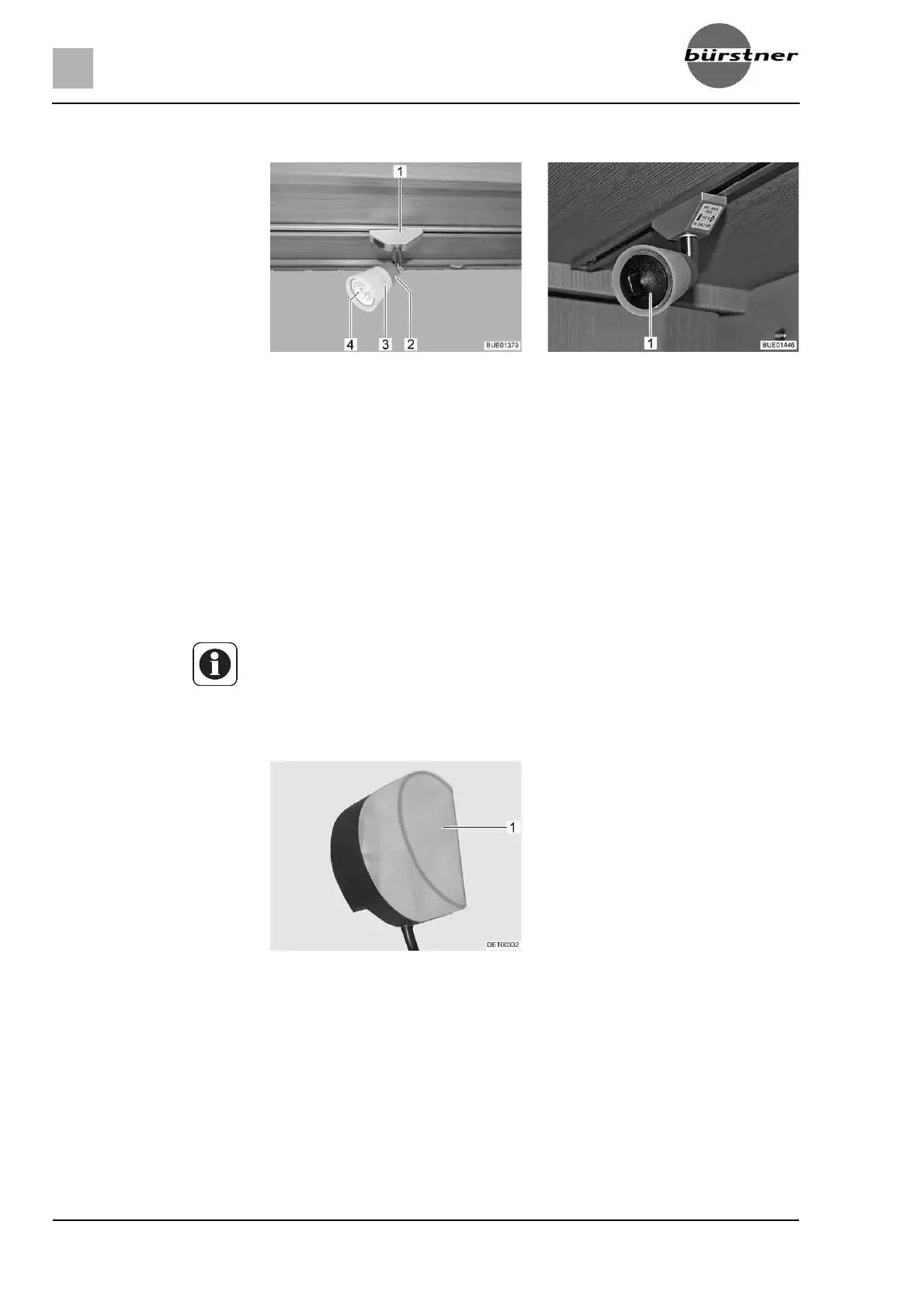

Fig. 270 Halogen spotlight (movable) Fig. 271 Suction cup for replacing the
lamp
Z A suction cup (Fig. 271,1) is included to help with changing the lamp.
Fig. 272 Wardrobe light
