6.9.7 Roman shade and insect screen
The windows are fitted with a Roman shade and an insect screen. The insect
screen can only be moved together with the Roman shade.
Roman shade The Roman shade is located in the bottom blind box.
Closing:
 Grip the Roman shade using the holding bar (Fig. 85,3), pull it from the
bottom to the top and then release it at the desired height. The Roman
shade will stay at this height.
Opening:
 Grip the Roman shade in the middle of the bar and push it down.
Insect screen The insect screen is located in the upper blind box.
Closing:
 Pull the insect screen down using the holding bar (Fig. 85,2), until it
touches the holding bar of the Roman shade (Fig. 85,3).
 Clip the catch (Fig. 85,1) on the insect screen into the handle of the Roman
shade.
Opening:
 Push the catch (Fig. 85,1) on the insect screen inwards.
 Move the insect screen back slowly on the holding bar (Fig. 85,2).
6.9.8 Roman shade and insect screen (hinged sunroof)
The hinged sunroof is fitted with a Roman shade and insect screen.
Roman shade The Roman shade can be operated separately from the insect screen.
Closing:
 Grip the Roman shade (Fig. 86,2) in the centre of the holding bar, pull it out
and release it at the required position. The Roman shade will stay in that
position.

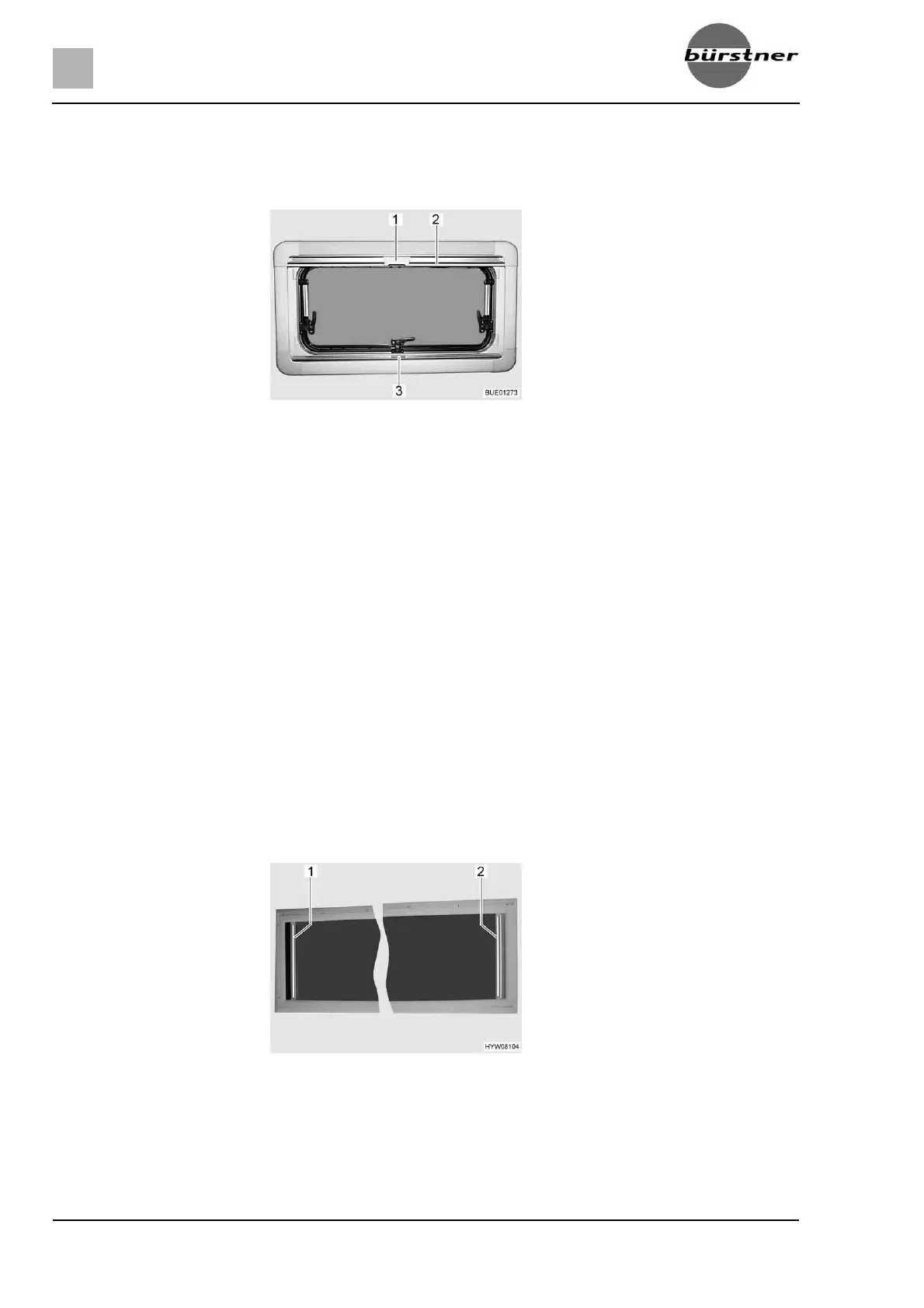

Fig. 85 Hinged window
Fig. 86 Hinged sunroof
