Closing:  Firmly close the external flap.
 Turn lock handle in a clockwise direction until it is horizontal. The flap lock
is now engaged but not locked.
 Insert key into locking cylinder.
 Press down lock handle with key inserted and turn key a quarter turn in a
clockwise direction. The lock handle will stay bolted.
 Remove the key.
6.2.3 Flap lock with push button
Depending on the flap size the service flap is equipped with one or two lock-
able push-button locks.
Opening:
 Insert the key into locking cylinder of the lockable push-button lock
(Fig. 51,1) and turn a quarter turn. The push-button lock is unlatched.
 Remove the key.
 If equipped, unlock the second lockable push-button lock as well.
 Press the two push buttons of the push-button locks simultaneously with
the thumb and open the service flap.
Closing:
 Close the service flap and press it shut. The push-button locks are now
engaged but not locked.
 Insert the key into locking cylinder of the lockable push-button lock
(Fig. 51,1) and turn a quarter turn. The push-button lock is locked.
 Remove the key.
 If equipped, lock the second lockable push-button lock as well.

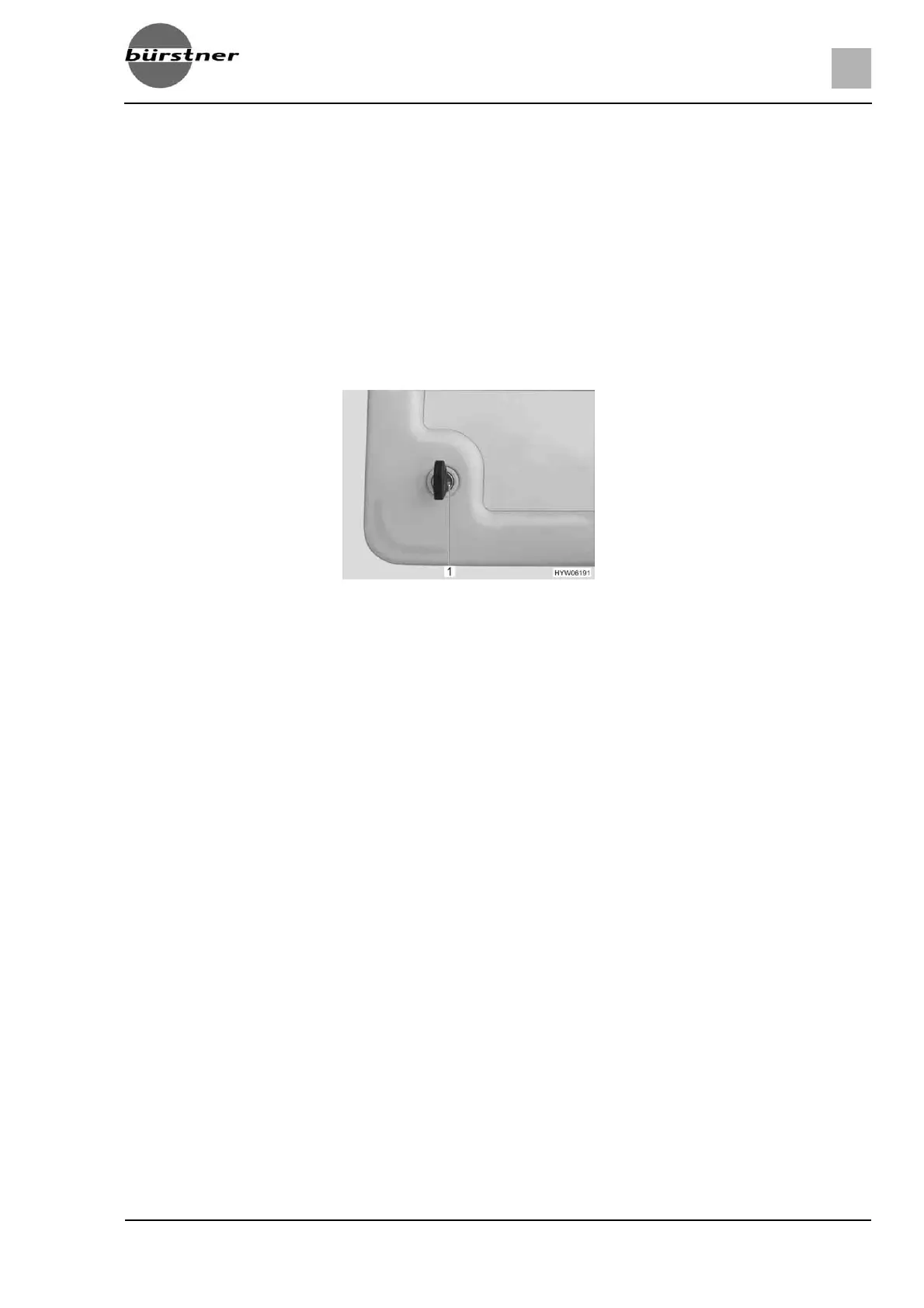

Fig. 51 Push-button lock service flap
