Folding out the table-top: Pull out the support frame (Fig. 97,2) below the table-top (Fig. 97,1) to the
end position.
Fold out the table-top and carefully rest it on the support frame.
Folding away the table-top:
Lift up the part of the table-top that is folded out and place it carefully on the
fixed part of the table-top.
Push in the support frame to the end position underneath the table-top.
Moving the table-top:
Loosen knurled screw (Fig. 98,1).
Move table-top to the desired position.
Retighten the knurled screw.
Rotating the table-top:
Raise the adjustment knob (Fig. 98,2).
Rotate the table-top into the desired position (in 90° stages).
Allow the adjustment knob to click back into position.
6.11.3 Fixed table (extendable table-top)
Extending: Pull the knob (Fig. 99,3) of the lock down and swing out the table-top exten-
sion (Fig. 99,2).
Reducing size:
Swing the table-top extension (Fig. 99,2) under the table-top (Fig. 99,1)
until the lock latches in place audibly.
The fixed table cannot be used as a bed foundation.

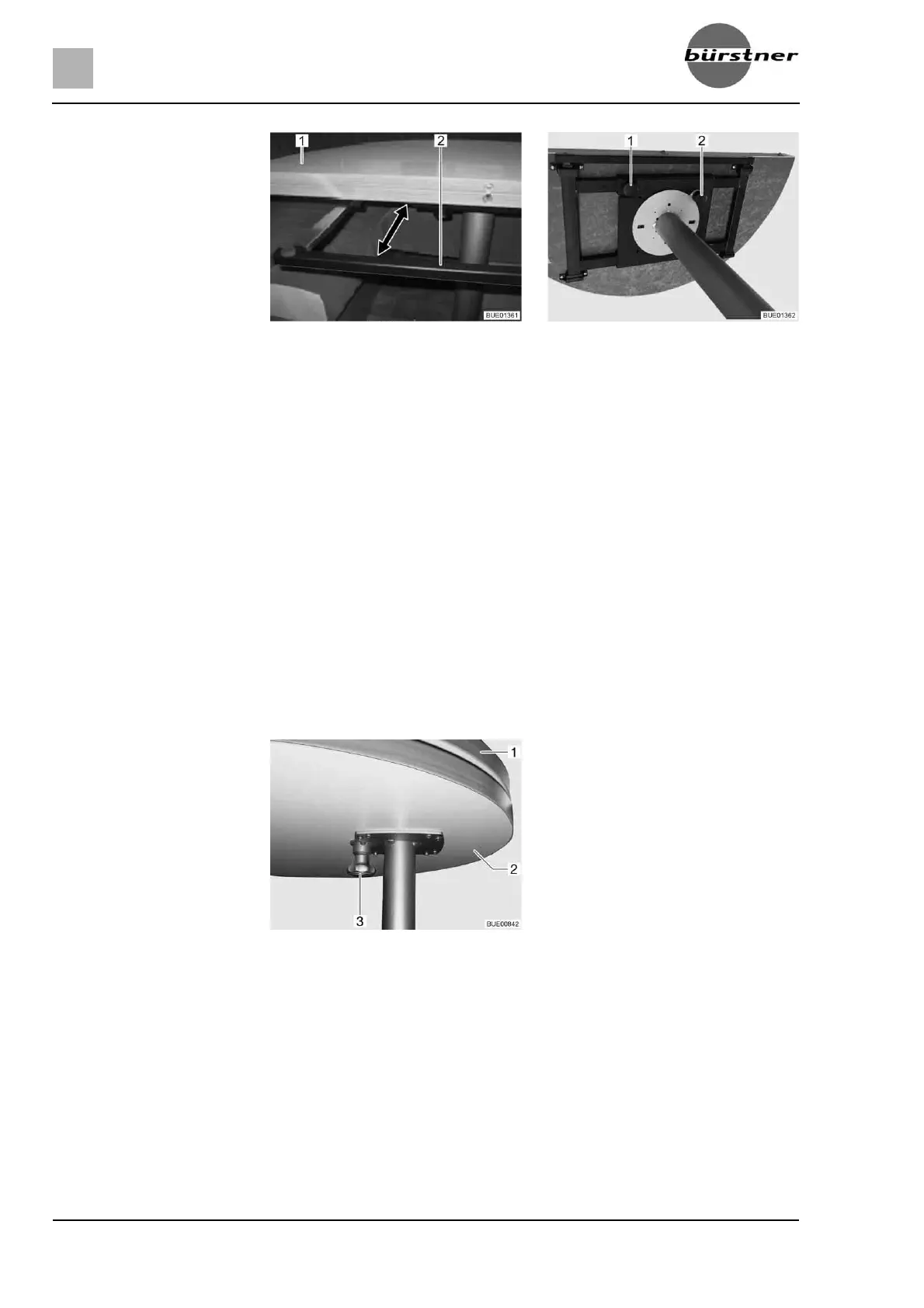

Fig. 97 Support frame Fig. 98 Fixed table (from below)
Fig. 99 Fixed table
