12.9.1 Ceiling lamp
The ceiling lamp has LEDs.
Changing bulbs:
 Press the two ends (Fig. 265,2) of the spring ring (Fig. 265,1) together and
remove.
 Remove the housing (Fig. 265,3) with LED from the lamp.
 Pull out the plug and fully replace the housing with LED.
 Reassemble the lamp in the reverse order.
12.9.2 Recessed halogen light
Halogen bulb 12 V/10 W
The recessed halogen light (Fig. 266,1) is installed flush.
Changing bulbs:
 Use a screwdriver to remove the inner cover ring (Fig. 267,1) from the
housing.
 Use a screwdriver to remove the cover ring with the glass (Fig. 267,2) from
the lower section of the recessed halogen light.
 Remove halogen bulb (Fig. 267,3).
 Put in a new halogen bulb.
 Reassemble the lamp in the reverse order.

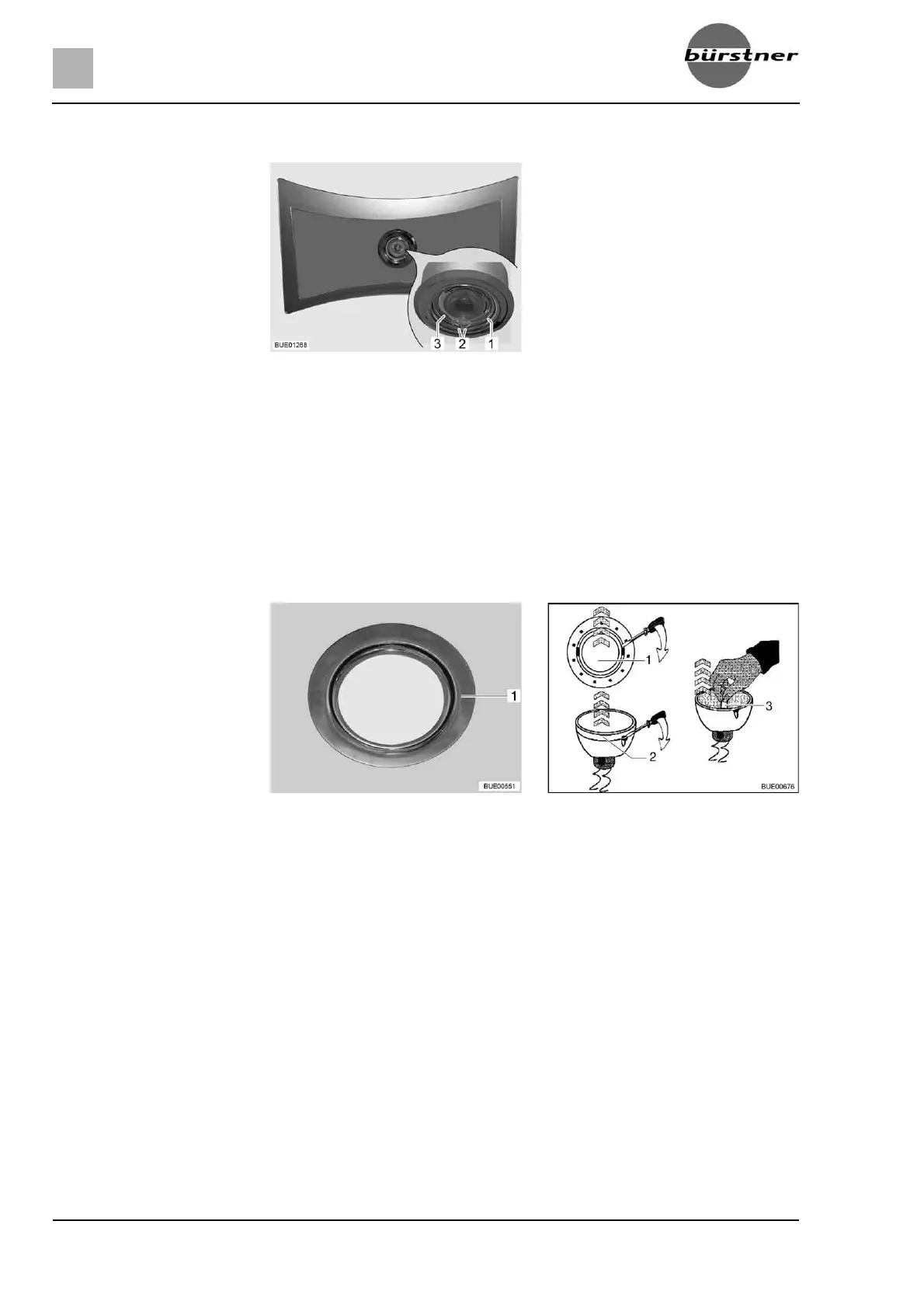

Fig. 265 Ceiling lamp
Fig. 266 Recessed halogen light (flat) Fig. 267 Changing the halogen bulb
