Burstner I 2012 - Fixed Bed (Gas-Pressure Springs)

93I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Living
6
The bedding box is located underneath the bed. The bedding box may be used
to store bedding.
Fold up the slatted frame to place items in the bedding box or to empty it.
Depending on the model, the slatted frame may be equipped with a sliding bar.
Opening:
 Lift up the slatted frame (Fig. 108,5) and push it upwards until the bar
(Fig. 108,4) in the guide rail (Fig. 108,1) has reached the end position
(Fig. 108).
Closing:
 Lift up the slatted frame (Fig. 108,5) and push back the bar (Fig. 108,4) at
the lower end. Ensure that the roller (Fig. 108,3) at the end of the bar near
the access opening (Fig. 108,2) does not become detached from the guide
rail (Fig. 108,1).
 Carefully let go of the slatted frame.
6.13.5 Fixed bed (gas-pressure springs)
A storage compartment is underneath the bed. Lift up the slatted frame to
place items in the storage compartment or to empty it from the inside of the
vehicle.
Opening:
 Lift the mattress forwards and set it down on the panel.
 Lift slatted frame. The gas-pressure springs (Fig. 109,1) hold the slatted
frame open.
Closing:
 Press the slatted frame downwards against the resistance of the gas-pres-
sure springs.
 If necessary, push the mattress behind the panel.

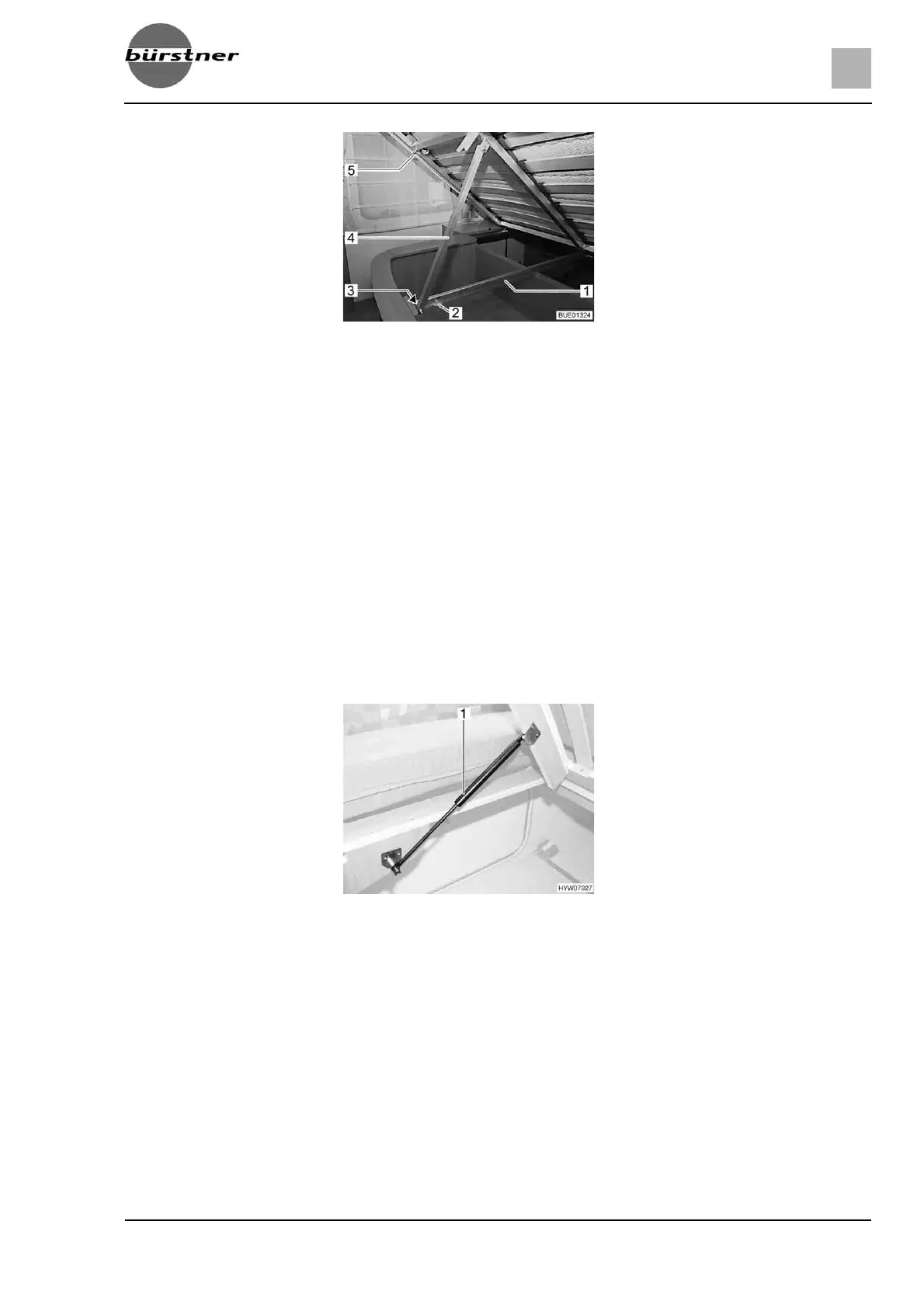

Fig. 108 Fixed bed
Fig. 109 Fixed bed
