During the journey
4
4.15 Washer nozzles
The vehicle has washer nozzles with an adjustable angle of spray.
Adjusting:
 Use a suitable screwdriver to turn the adjusting screw (Fig. 30,1) until you
reach the desired position.
4.16 Filliing with washer fluid
 Unlock and open the bonnet.
 Push the handle (Fig. 31,2) down and keep it pressed.
 Pull the flexible hose (Fig. 31,4) to the front and out of the holder
(Fig. 31,3).
 Remove the lid (Fig. 31,1) from the filler neck of the washer fluid container.
 Twist the flexible hose in a way so that the filling hole points upwards
(Fig. 32).
 Slowly fill in washer fluid.
 Push the lid onto the filler neck of the washer fluid container.
 Push the flexible hose back into the holder and lock it into place.

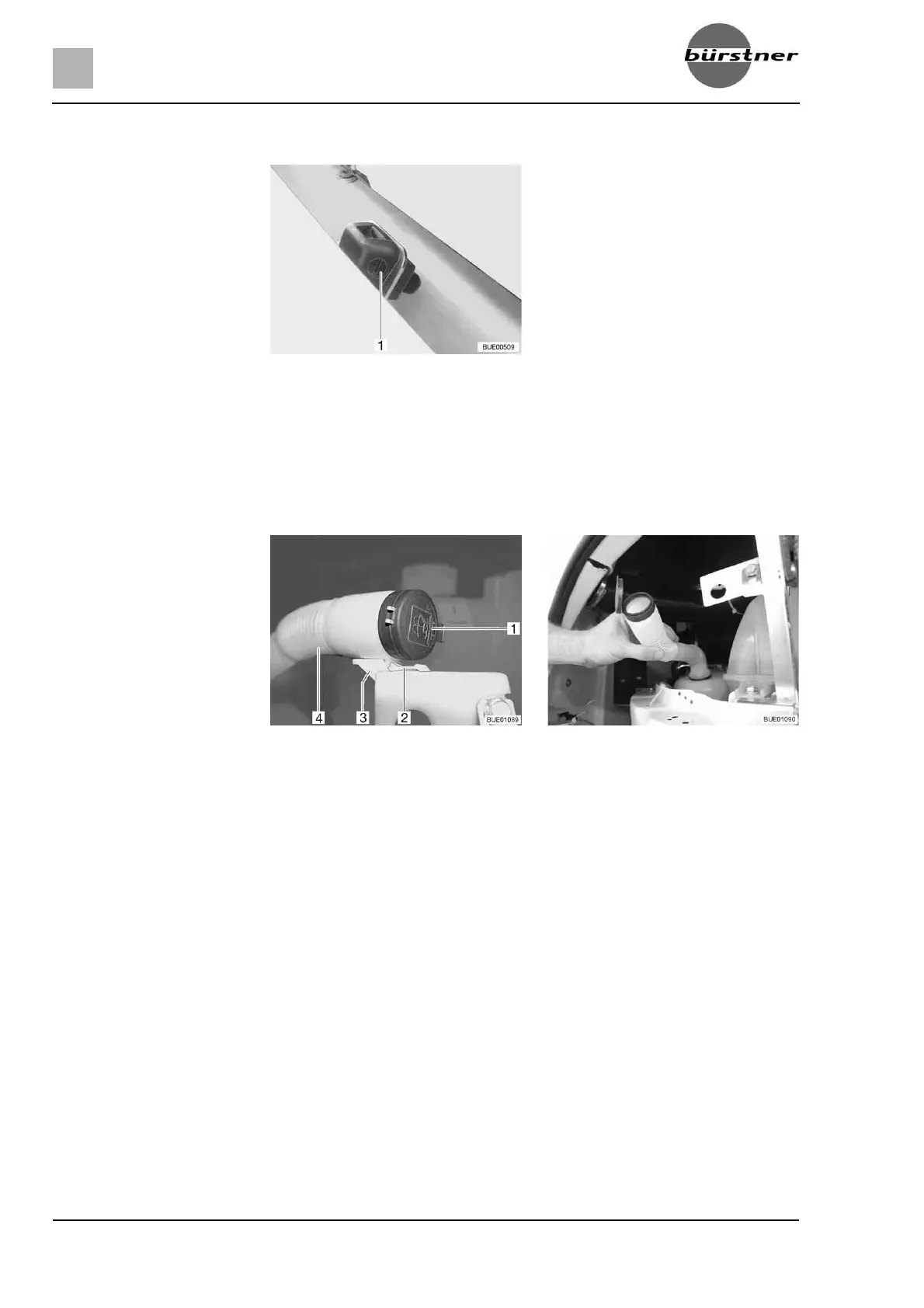

Fig. 30 Washer nozzle
Fig. 31 Washer fluid container filler
neck
Fig. 32 Filler neck in filling position
