Burstner I 2012 - Rear Lights

225I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Maintenance
12
 Install the parking light in reverse order.
 Fix the plastic apron in reverse order.
Direction indicator The bulbs are changed in the engine compartment.
 Open bonnet (see chapter 4).
 Put your hand behind the lamp holder (Fig. 255,1).
 Turn the lamp holder with the lamp in an anticlockwise direction and
remove.
 Remove bulb.
 Put in a new bulb.
 Reassemble the direction indicator in the reverse order.
Fog light
 Put your hand behind the lamp holder.
 Turn the lamp holder with the lamp in an anticlockwise direction and
remove.
 Remove bulb.
 Put in a new bulb.
 Reassemble the fog light in the reverse order.
12.8.3 Rear lights
Elongated lamps
 Undo the housing screws (Fig. 262,1).
 Remove housing.
 Remove bulb.

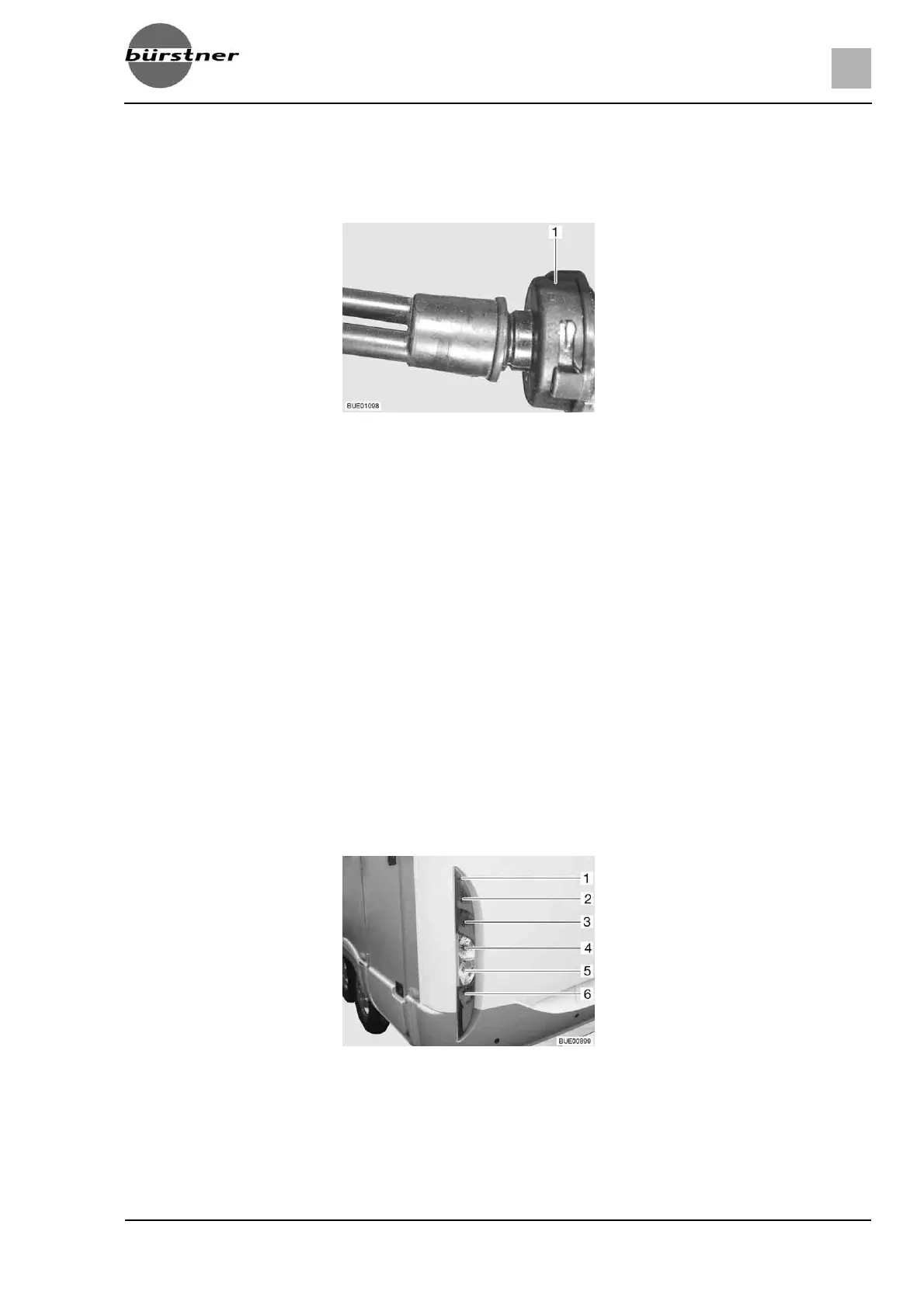

Fig. 261 Direction indicator
Fig. 262 Rear lights
1 Housing screws
2Rear light
3 Brake light
4 Direction indicator
5 Reverse light
6 Fog tail light
